Product description

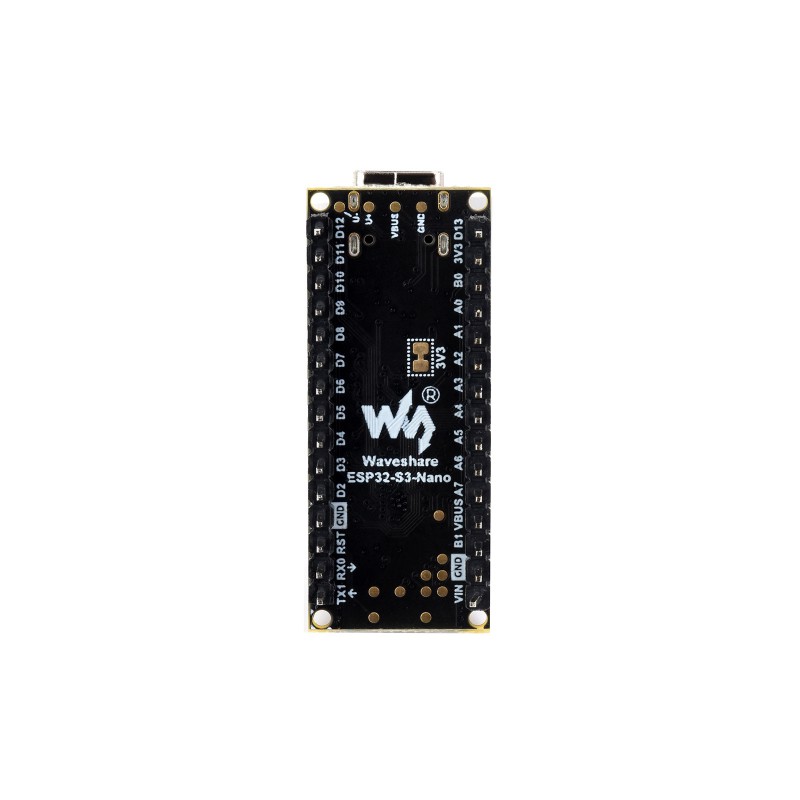

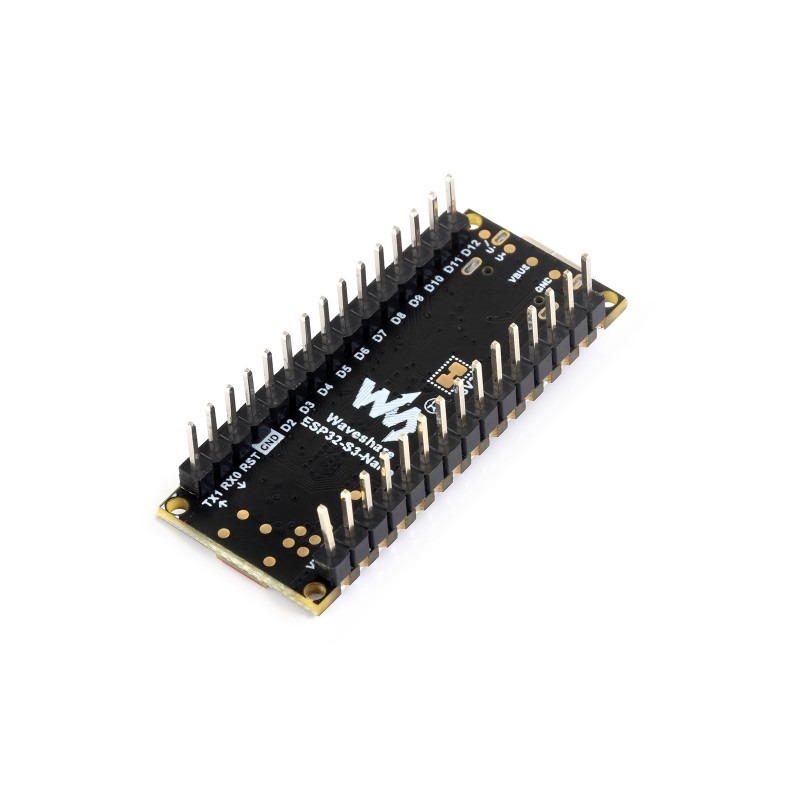

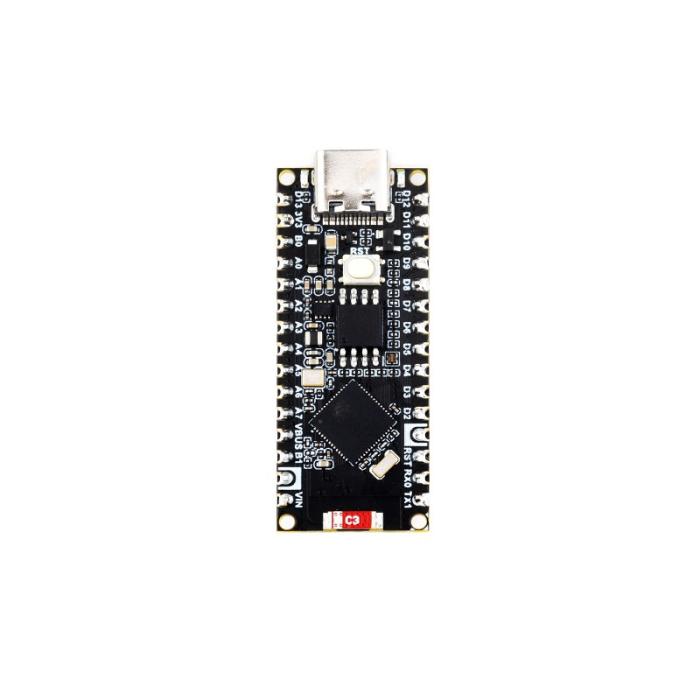

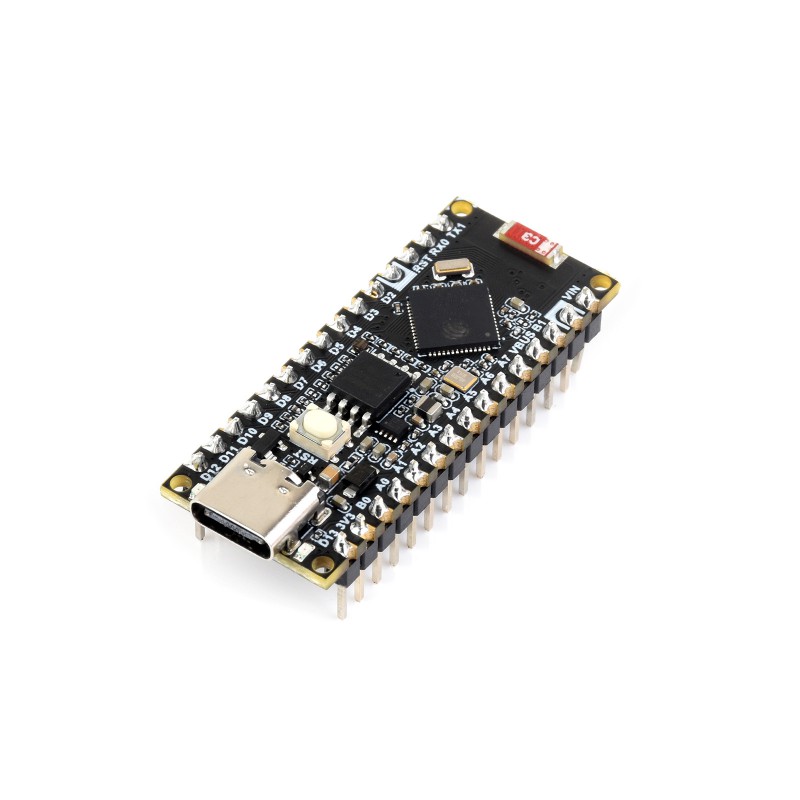

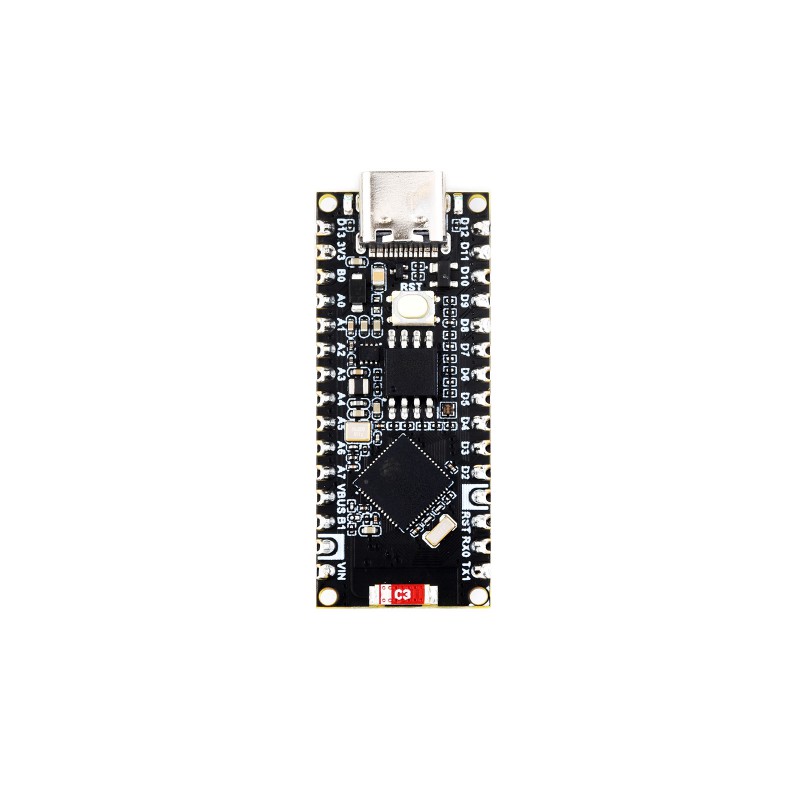

Waveshare ESP32-S3-Nano-M is fully compatible with Arduino Nano ESP32. Based on the ESP32-S3R8 with a dual-core 32-bit Xtensa LX7 processor running at up to 240MHz. Suitable for IoT projects using MicroPython or Arduino C++. Features WiFi, Bluetooth LE, and USB-HID support. Supplied with pre-mounted pin headers.
Specifications:
- Model: ESP32-S3-Nano-M
- Microcontroller: ESP32-S3R8
- Processor: Dual-core 32-bit Xtensa LX7
- Clock frequency: up to 240MHz
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Flash: 16MB
- Wireless communication: 2.4GHz WiFi and Bluetooth LE
- Programming: Arduino and MicroPython
- USB-HID: Supported
- USB: USB-C
- Supply voltage: 6-21V or via USB-C
- Logic level: 3.3V
- Digital pins: 14
- Analog pins: 8
- PWM: 5
- UART: 2
- I2C: 1
- SPI: 1
- Pin compatible with Arduino Nano ESP32: Yes
- Antenna: 2.4G ceramic antenna
- Pin headers included: Yes, pre-mounted
