Product description

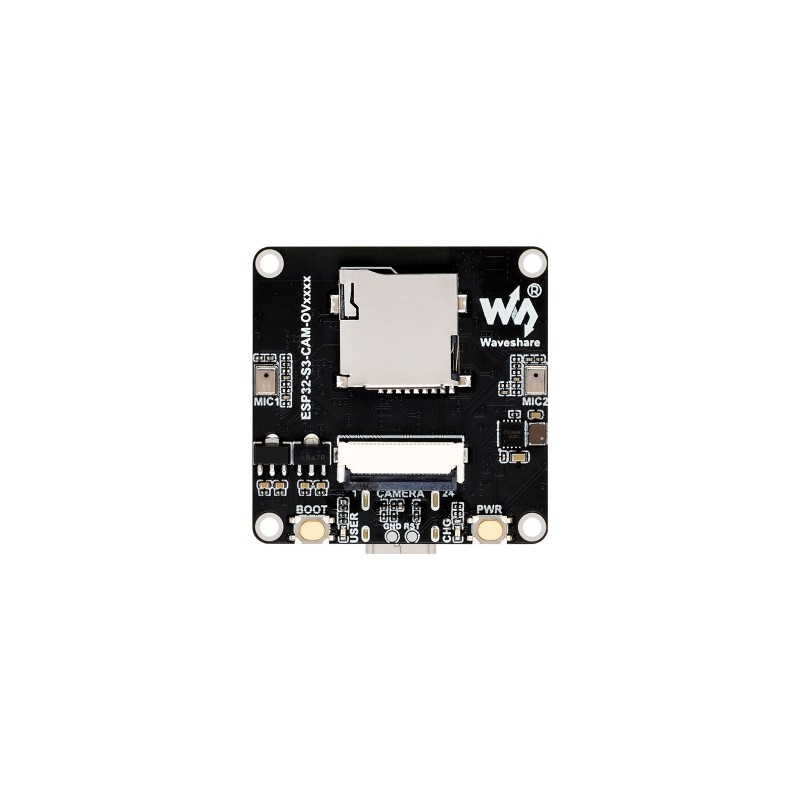

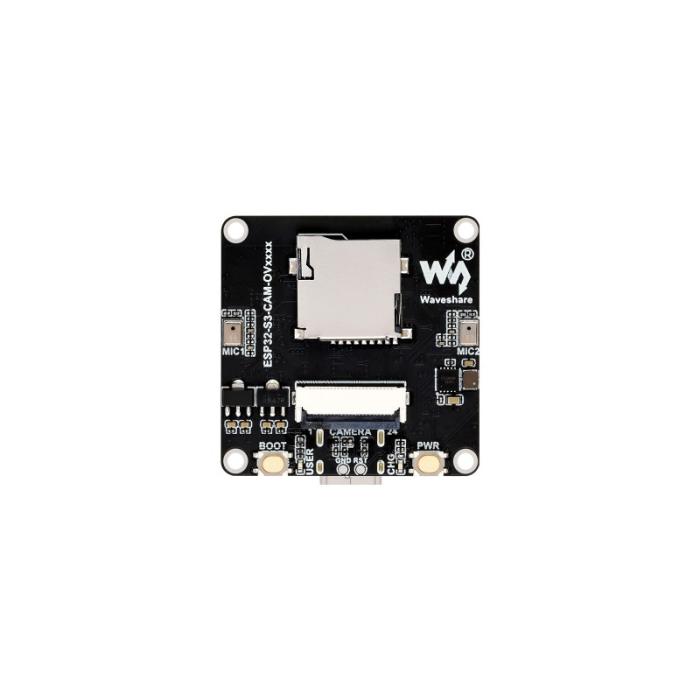

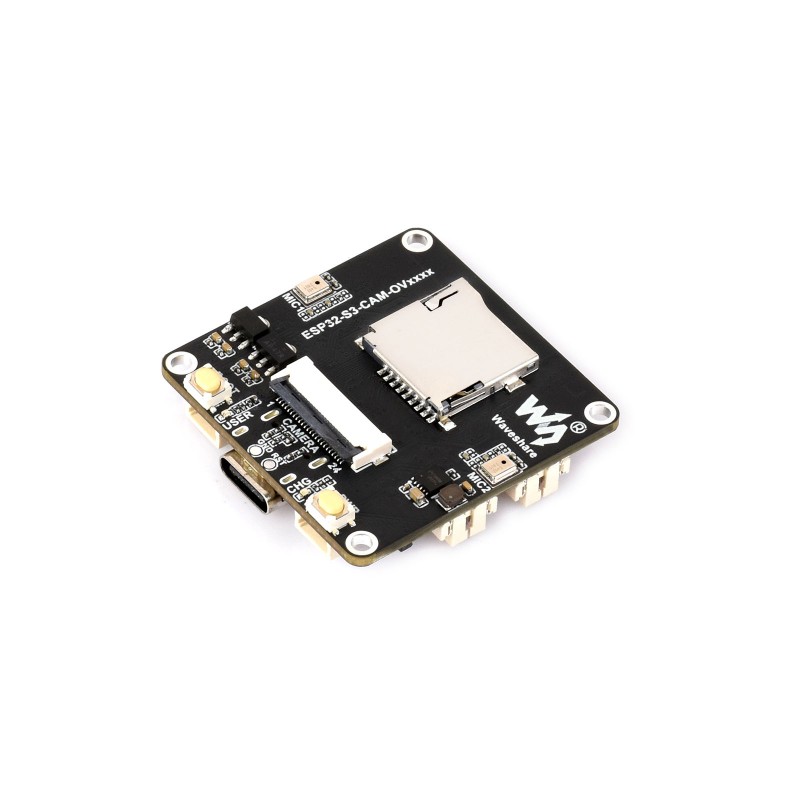

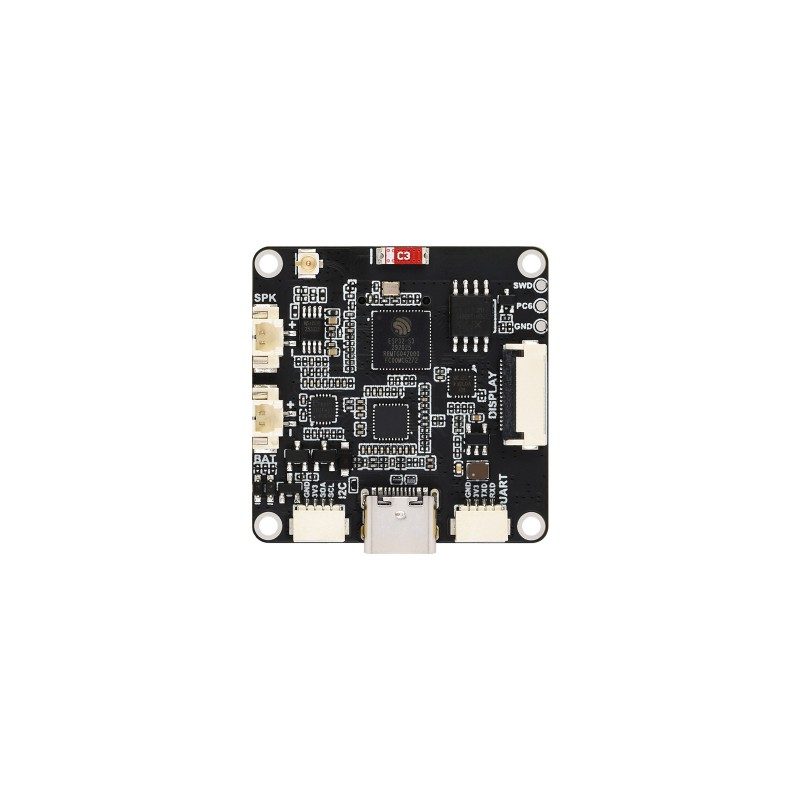

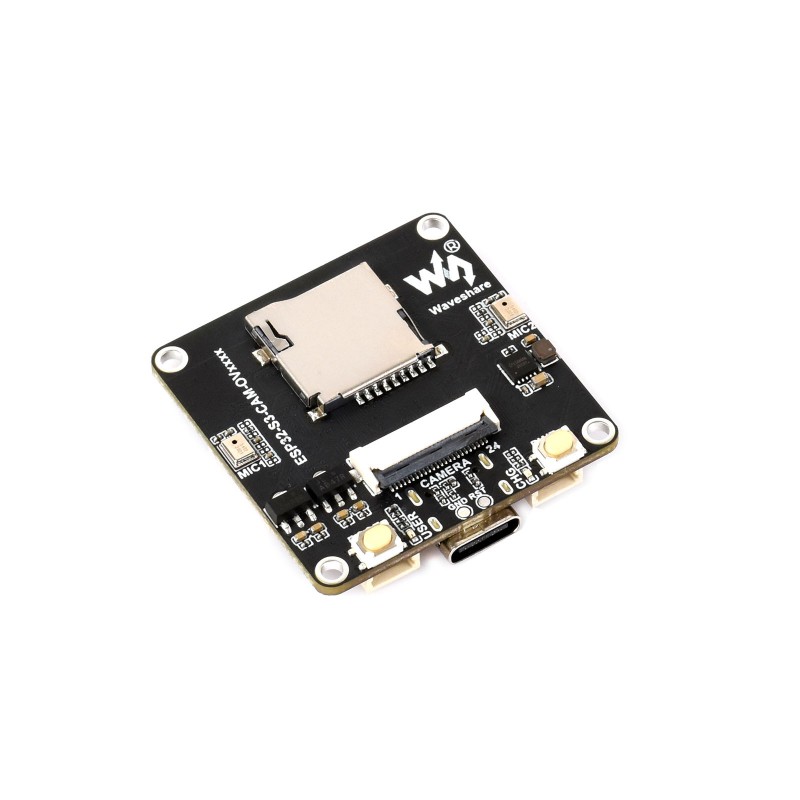

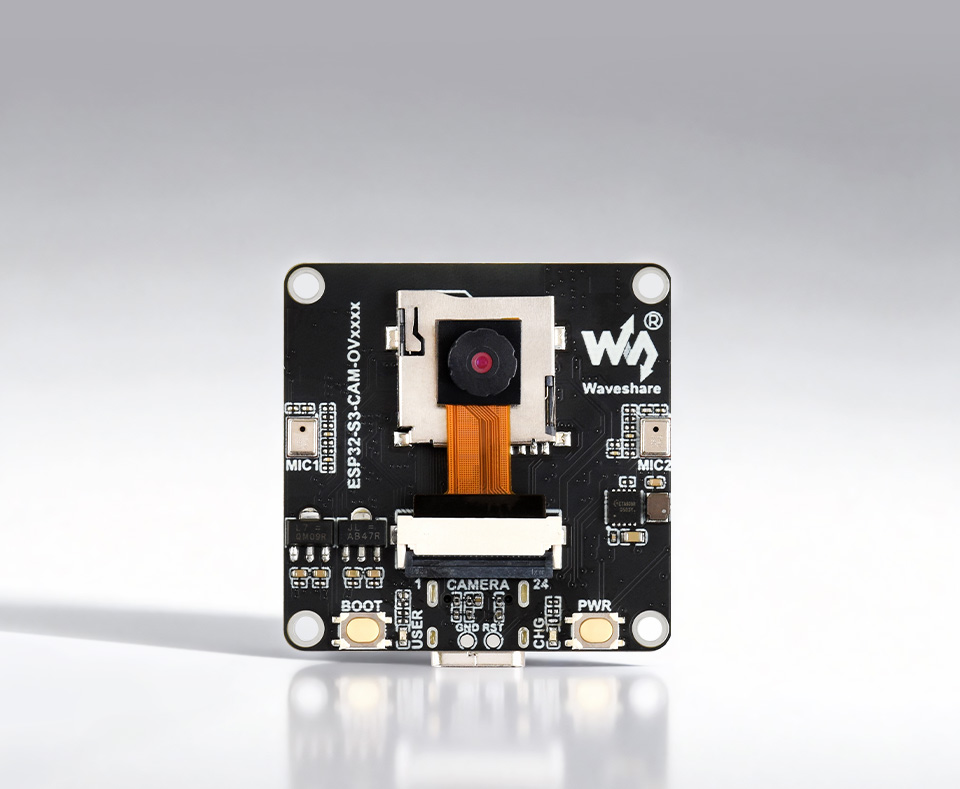

ESP32-S3 AIoT camera module with OV5640 camera for AI and IoT applications. The board is based on the ESP32-S3R8 with a dual-core Xtensa LX7 processor and integrates a camera interface, audio functions, wireless communication, and support for external displays. The module is suitable for applications such as image recognition, AI voice control, smart cameras, and HMI systems. The module features dual microphones with support for noise reduction and echo cancellation, as well as connections for a speaker (Included) and Li-Po battery.
Specifications:
- Microcontroller: ESP32-S3R8
- Processor: Xtensa 32-bit LX7 dual-core
- Clock frequency: up to 240MHz
- Wireless communication: 2.4GHz Wi-Fi 802.11b/g/n, Bluetooth5 LE
- Internal memory: 512KB SRAM, 384KB ROM
- PSRAM: 8MB
- Flash memory: 16MB

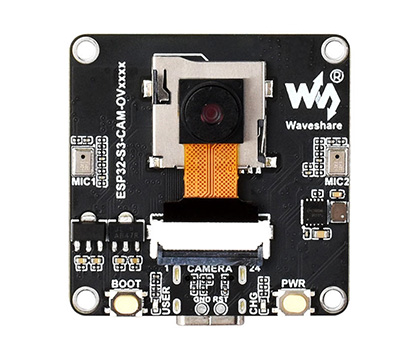

- Camera model: OV5640
- Camera resolution: 2592x1944
- Camera interface: DVP
- Image formats: RGB565, YUV, YCbCr422
- Image sensor: 1/4"
- Focal length: 4.1mm
- Aperture: f/2.8
- Field of view: diagonal 68°, horizontal 55°, vertical 42°

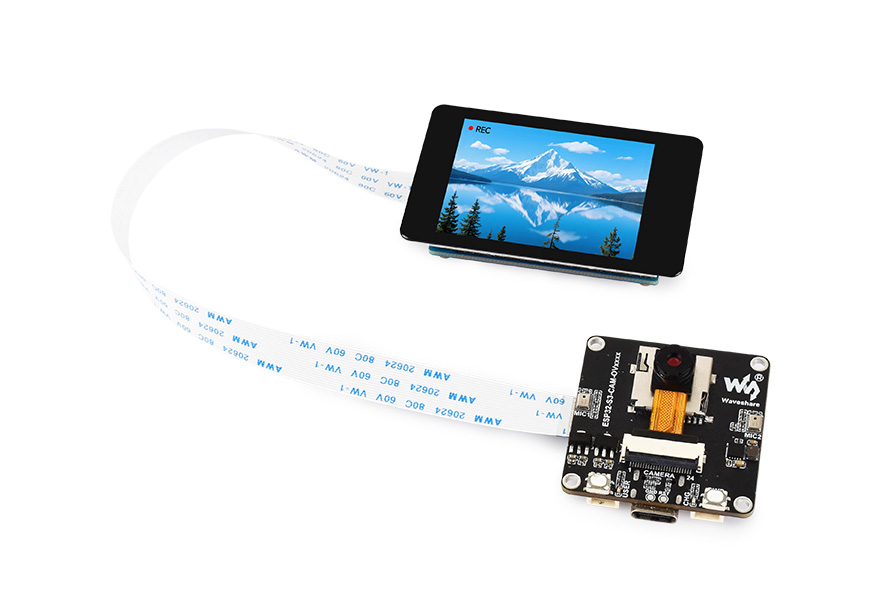

- Display interface: SPI/QSPI
- Display connector: 18-pin FPC
- USB connector: USB-C
- Audio functions: dual microphones, speaker connection
- AI audio functions: noise reduction, echo cancellation
- Battery connection: 3.7V Li-Po via GH1.25 2-pin
- Memory card slot: for MicroSD
- Support for AI functions: image recognition, voice interaction, object recognition

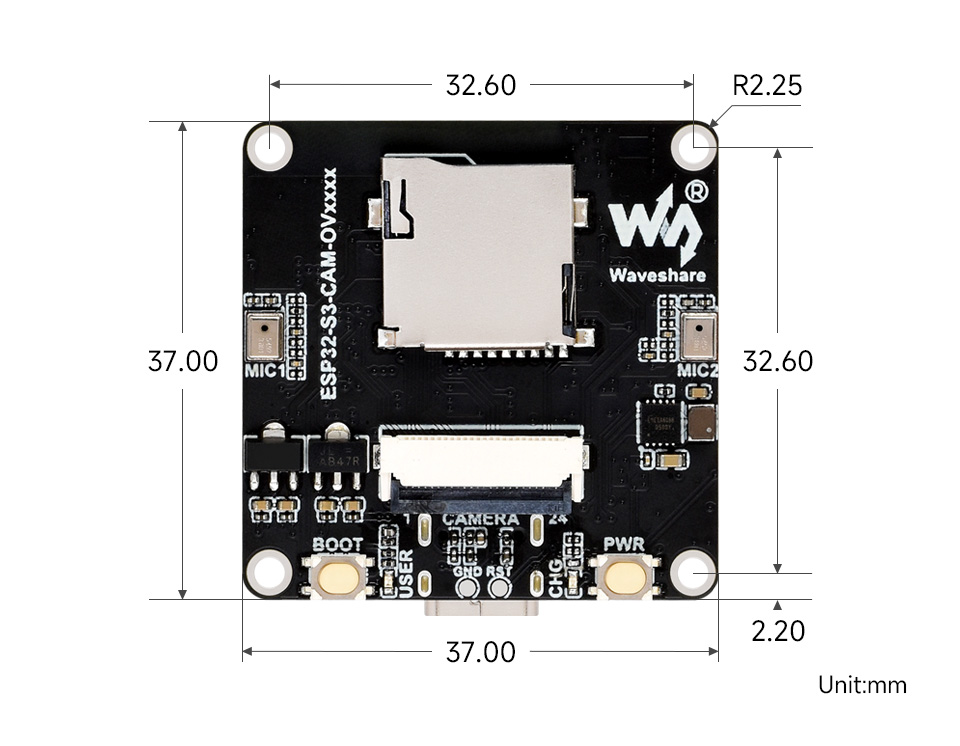

- Dimensions: 37 x 37mm

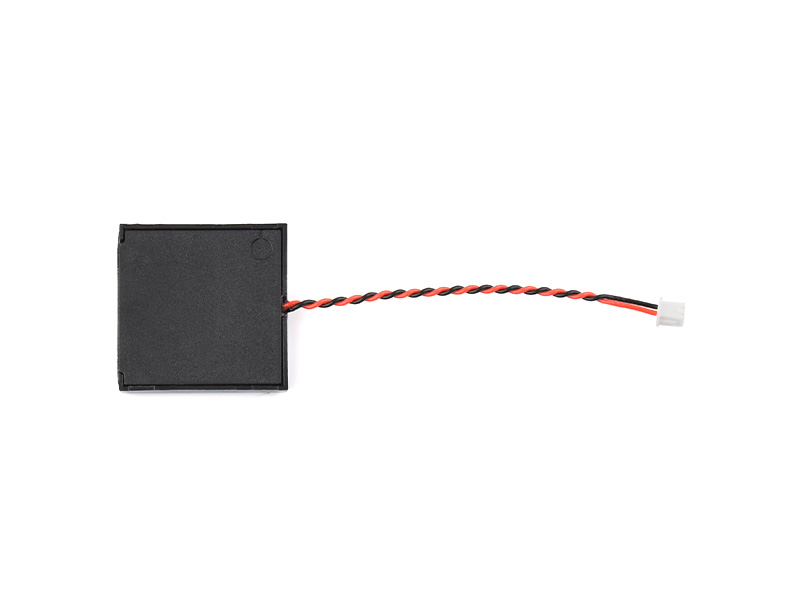

- Includes speaker module
