Product description

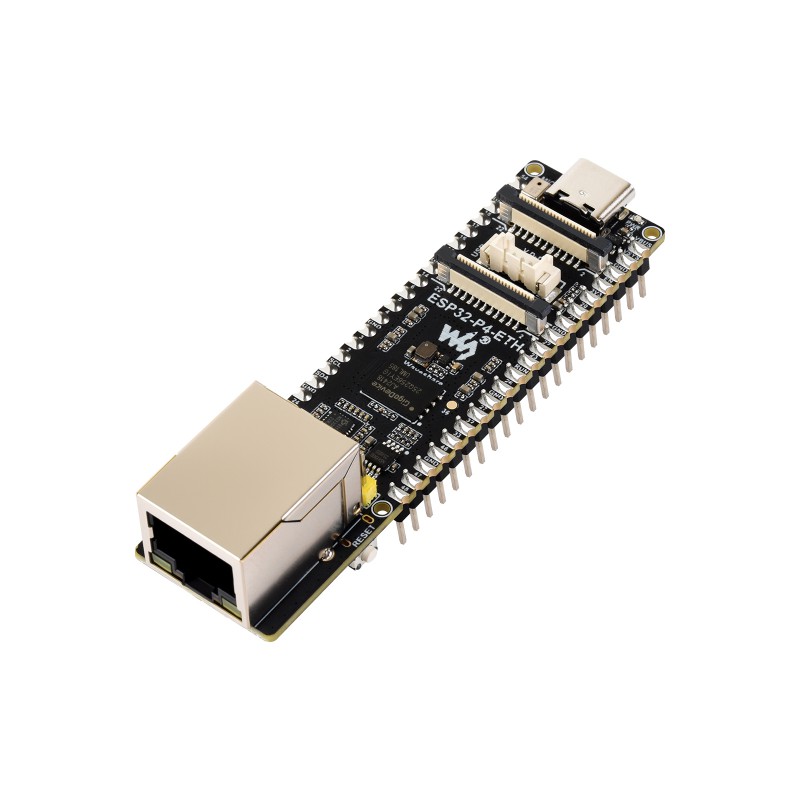

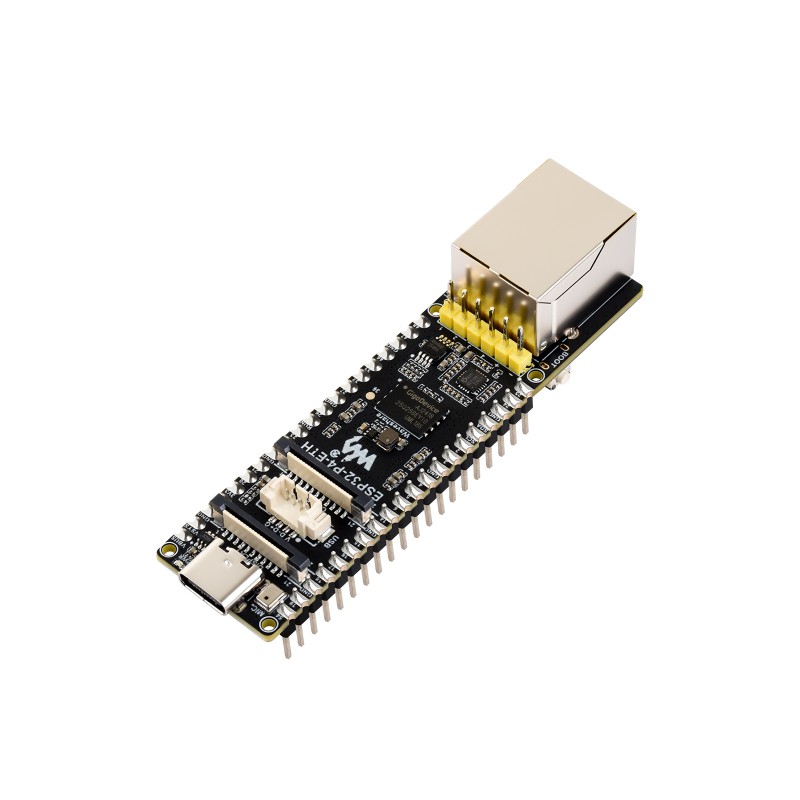

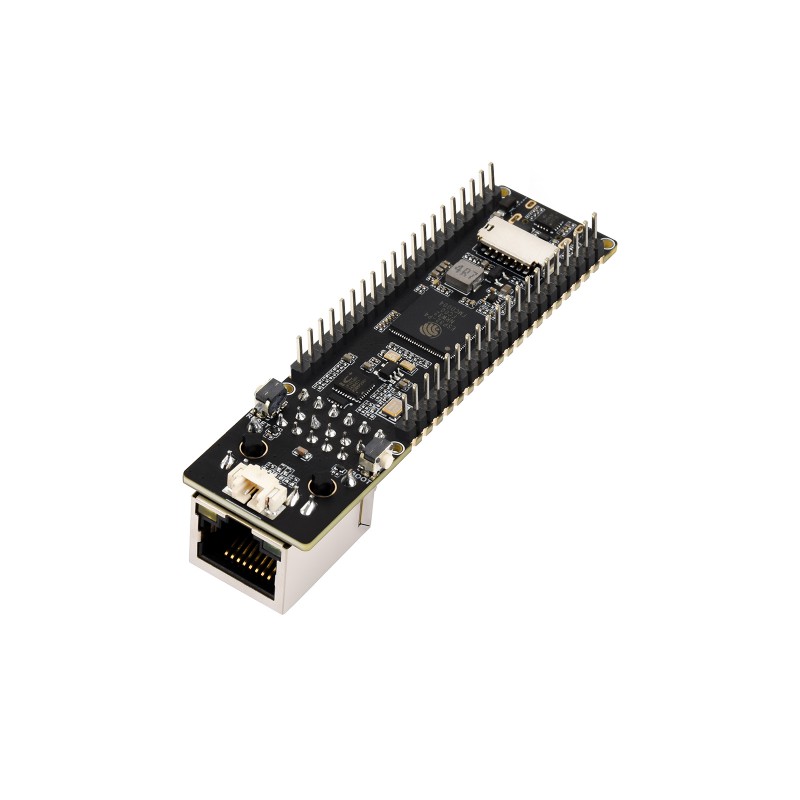

ESP32-P4 Ethernet PoE is a powerful development board with wired communication. It is based on the Espressif ESP32-P4NRW32. A dual-core 32-bit processor running up to 400 MHz (HP, High-performance) and a single-core 32-bit processor running up to 40 MHz (LP system). Other features include a USB-C connector for supply voltage, programming and debugging, a microSD card slot for external storage, and an integrated camera interface compatible with for example 5MP OV5647 and other commonly used cameras for image and video capture. Supplied with PoE module.
Specifications:
- Microcontroller: ESP32-P4NRW32
- Flash memory: 32 MB
- PSRAM: 32 MB
- Additional memory: 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
- Ethernet with RJ45: 10/100 Mbps, W5500 chipset
- USB Type-C interface: Supply voltage and programming
- USB 2.0 interface: 4-pin OTG port
- Camera interface: CSI MIPI, 2-lane, 22-pin FPC connector
- Display interface: DSI MIPI, 2-lane, 22-pin FPC connector
- Interfaces: SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc.
- Supply voltage: From USB-C or 3.3V pin
- Card slot: microSD for external storage
- Camera interface: Yes, 24-pin, 0.5 mm pitch, FPC/FFC

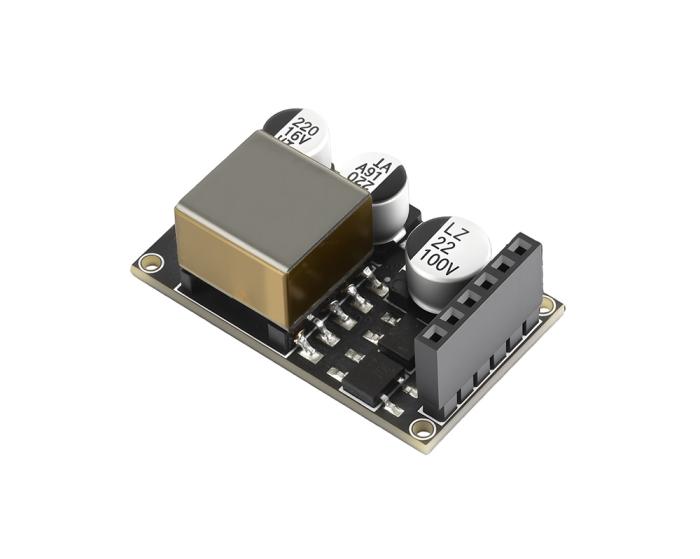

- PoE functionality: Yes, supplied with PoE module
- GPIO: 27 pcs
- Built-in microphone: Yes
- Audio playback: Yes, speaker output
- Buttons: Boot and reset
- Indicators: LED indicators for link and activity
- Pin header: 2x20 pin (pre-soldered)
- Dimensions: 78 x 21 mm
