Product description

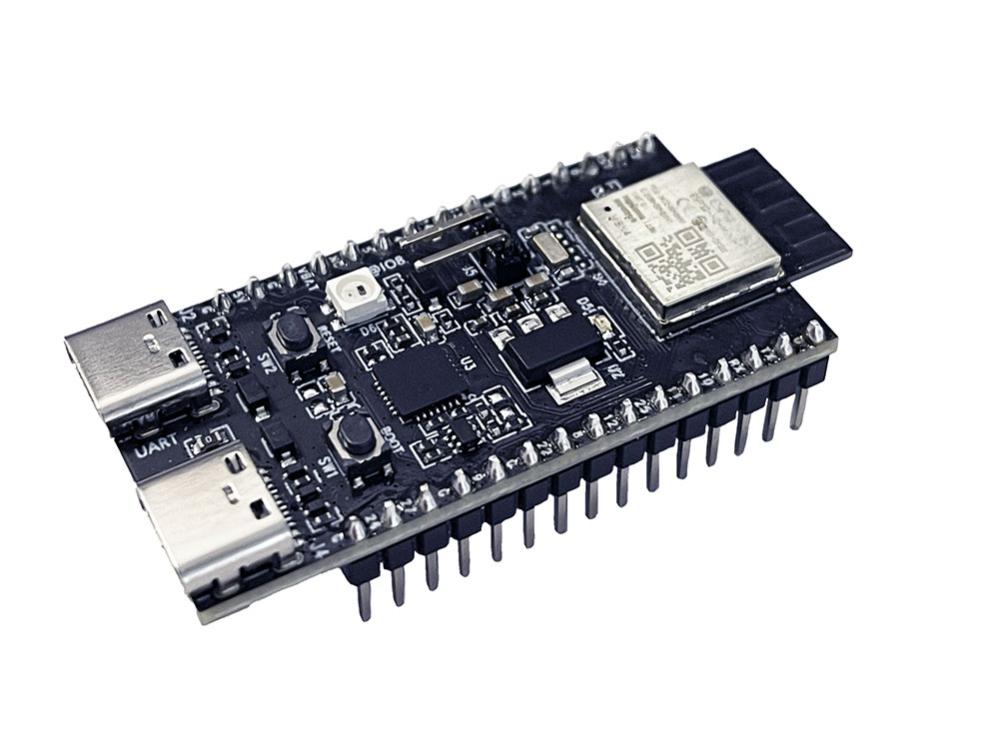

ESP32-H2-DevKitM-1 is a compact development board based on the ESP32-H2-MINI-1 module. It is specifically designed for IoT applications that require low power consumption and support for multiple wireless protocols, including Bluetooth® 5 (LE), Zigbee 3.0, Thread, and Matter. The DevKitM comes with pre-soldered pin headers and can be connected using jumper wires or on a breadboard.

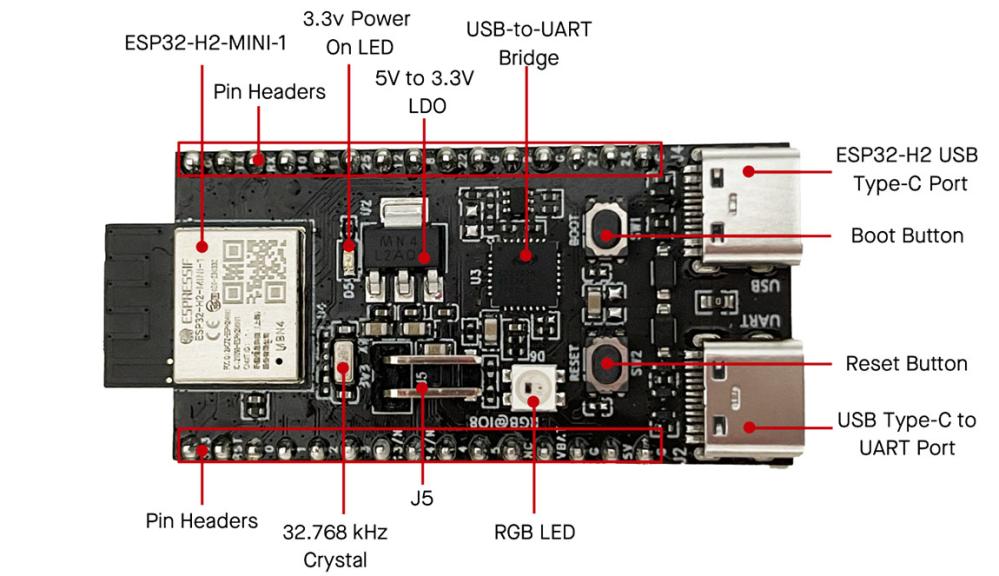

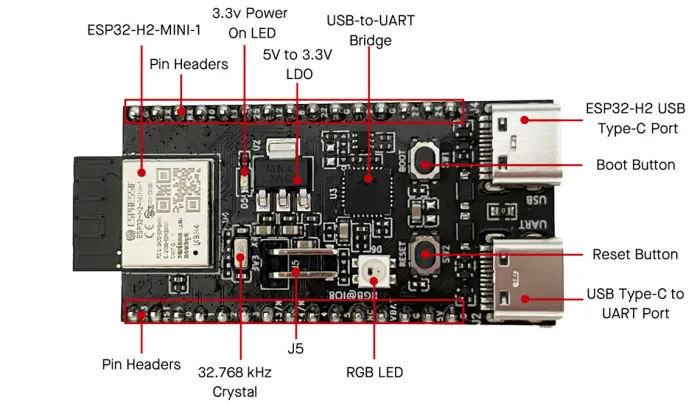

Specifications:
- Microcontroller: ESP32-H2 (RISC-V 32-bit, single-core, up to 96 MHz)
- Flash memory: 4 MB
- Memory: 320 KB SRAM, 128 KB ROM, 4 KB LP memory
- Wireless communication: Bluetooth® 5.3 (LE) mesh, Zigbee 3.0, Thread 1.3, Matter

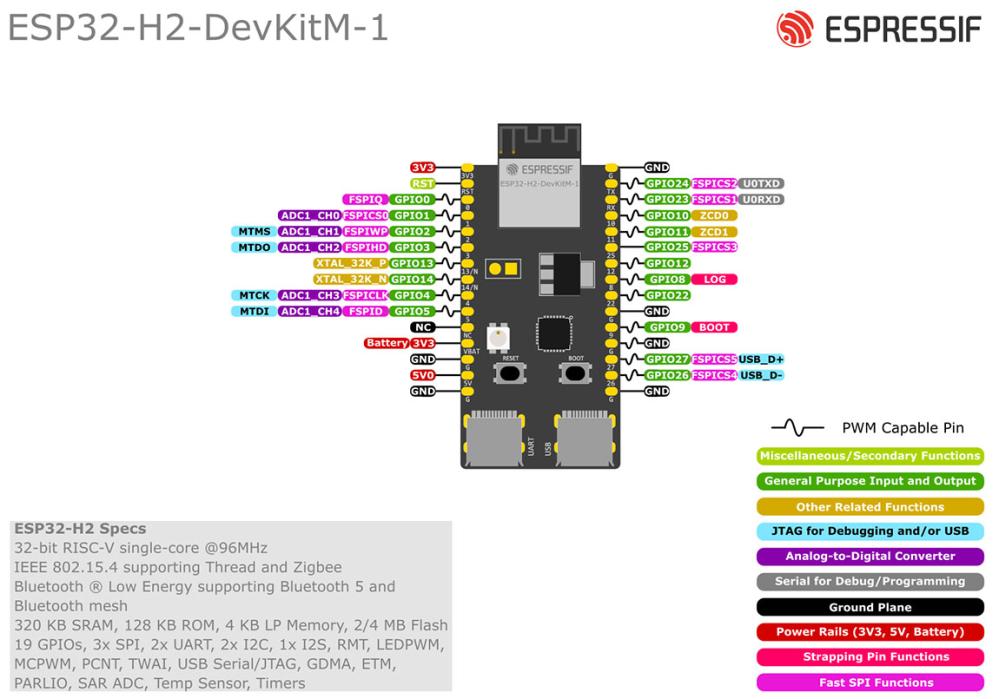

- GPIO: 19 general-purpose I/O pins
- Interfaces: SPI, UART, I2C, I2S, RMT, LED PWM, MCPWM, PCNT, TWAI, USB Serial/JTAG, GDMA, ETM, PARLIO, ADC
- USB-to-UART bridge: Provides serial conversion with transfer rates up to 3 Mbps
- USB Type-C port: Used for power supply, programming, and JTAG debugging
- Power supply: 5V via USB-C (standard), or via 5V or 3.3V pin
- Antenna: Integrated antenna
- Dimensions: 53.66 x 25.4 mm
- Temperature range: -40 °C to +85 °C
- Security features: AES-128/256, Hash, RSA, ECC, HMAC, Secure Boot, random number generator
- Boot button: Used to initiate firmware download mode
- Reset button: Resets the system
- RGB LED: Addressable RGB LED controlled via GPIO8
Development environments:
- ESP-IDF: Espressif’s official SDK for development in C/C++
- Arduino IDE: Support for development in the Arduino environment
- MicroPython: Support for development in MicroPython
