Product description
Digital power meter from Uni-T. Measures voltage, current, power, power factor and frequency and can display four different quantities simultaneously. Autoranging (can also be set manually).
Ut9802+ can measure both AC (true RMS) and DC. It is suitable for development and testing of power supplies, household appliances, batteries, battery chargers, standby power consumption, etc.

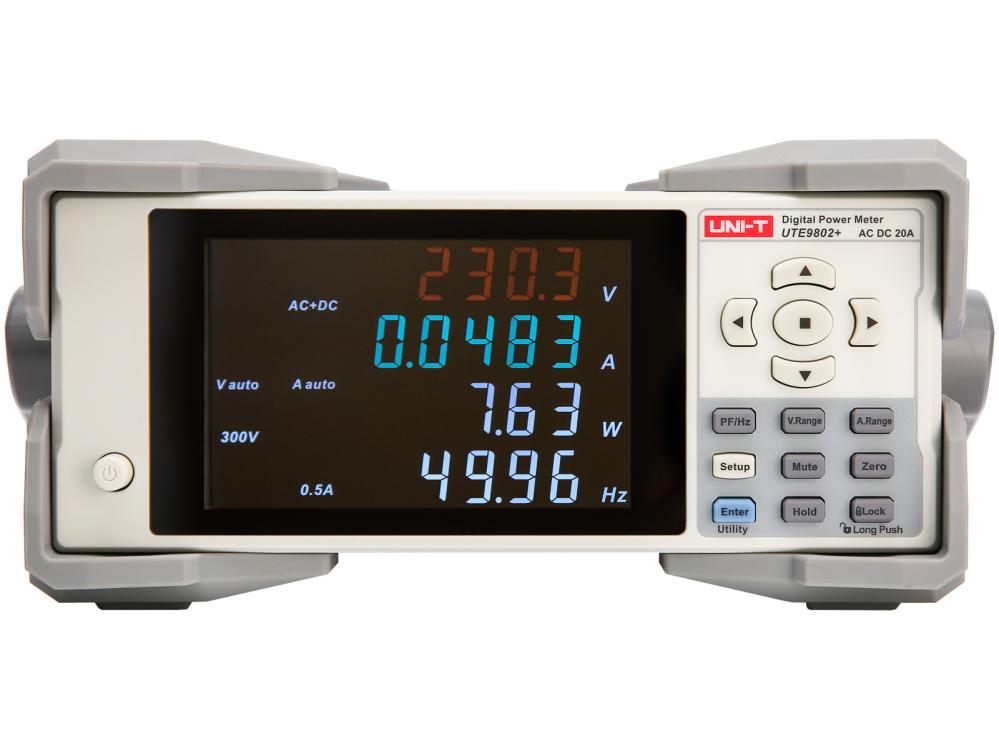

Measures with high accuracy. Displays four different quantities with 5 characters in four windows: V, A, W and PF or Hz. Can display a moving average.
Measures voltage from 3V-600V DC DC and current from 0.5mA-20A - power up to 12kW. Withstands higher voltages and currents, both continuously and short surges - see data sheet.
An alarm can warn with light and sound when current or power exceeds or falls below limit values. In addition to upper and lower limit values, the user can also select a time delay.

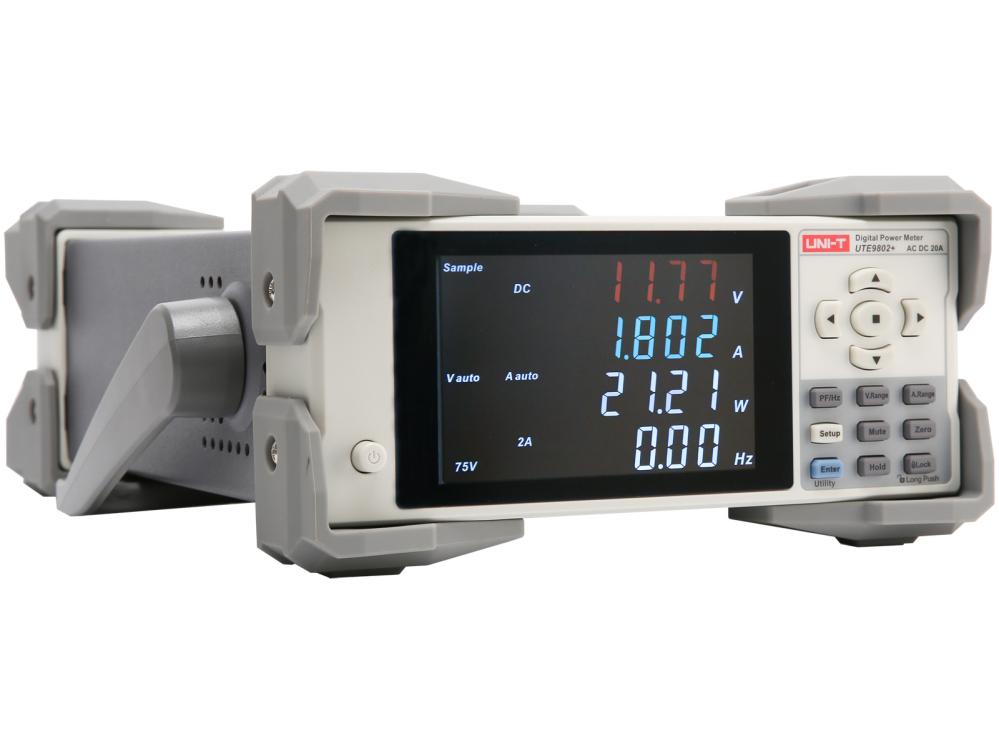

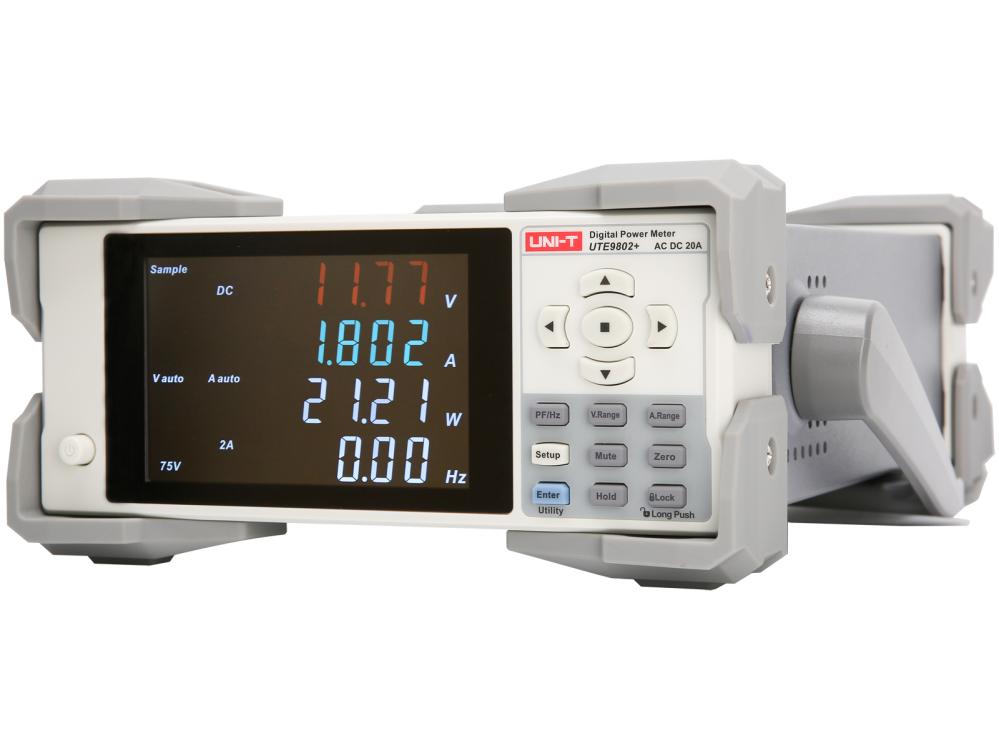

Compact and portable unit with carrying handle. Silicone corners protect against falls.

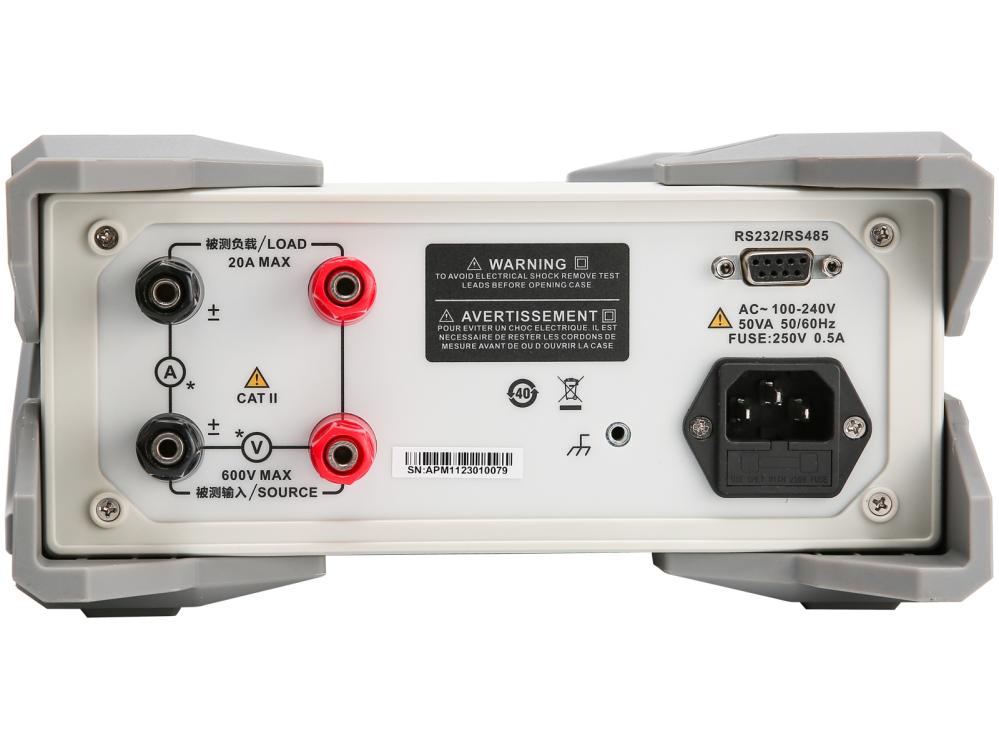

Support for RS232 and RS485 with SCP and Modbus. The unit can be connected to and remotely controlled from a computer or PLC. Uni-T's software can display the measurement data graphically with historical trend and export in CSV format.
| Display Update Rate | 0.1S, 0.25S, 0.5S, 1S, 2S, 5S |
| Measuring Object | V,A,W,VA,PF,V Hz / A Hz,Vpk/ Apk |
| Measuring Mode | AC |
| Measuring Range of Voltage | 0.5V-600V |
| Voltage Range | 60V/600V |
| Accuracy of Voltage (1% ~ 100% of range) |
40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) |
| Voltage Resolution | 0.01V/0.1V |
| Measuring Range of Current | 0.05mA-10A |
| Current Range | 50mA/100mA/10A |
| Accuracy of Current (1% ~ 100% of range) |
40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) |
| Current Resolution | 0.01mA / 0.1mA / 1mA |
| Switching Range | Auto/Manual |
| Power Range | 1W~6000W |
| Accuracy of Power (PF=1) | 40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) (voltage > 10% of range, current > 1% of range) |
| Power Resolution | 0.001W/0.01W/0.1W/1W |
| Power Factor Range | -1.000~1.000 |
| Accuracy of Power Factor | ±0.01 |
| Frequency Range | 40Hz~400Hz |
| Accuracy of Frequency | ±0.1% reading |
| Weight | 3.3kg |
| Size | 214mm×88mm×340mm |
