Product description
Digital power meter from Uni-T. Measures voltage, current, power, power factor and frequency and can display four different quantities simultaneously. Autoranging (can also be set manually).
UT9806+ is dedicated for measuring alternating current (AC) and is able to measure very low currents, down to 0.05mA. In addition to the above quantities, it can also display apparent power (VA), highest and lowest values (peak) for voltage and current and frequency for both voltage and current (V hz / A Hz).
Suitable for measuring power consumption and efficiency in a variety of devices, from household appliances to dc-dc converters, etc.
Precise measurements of very low currents, from 0.05mA to 10A, with a resolution of 0.01mA in the lowest measurement range (0-50mA).

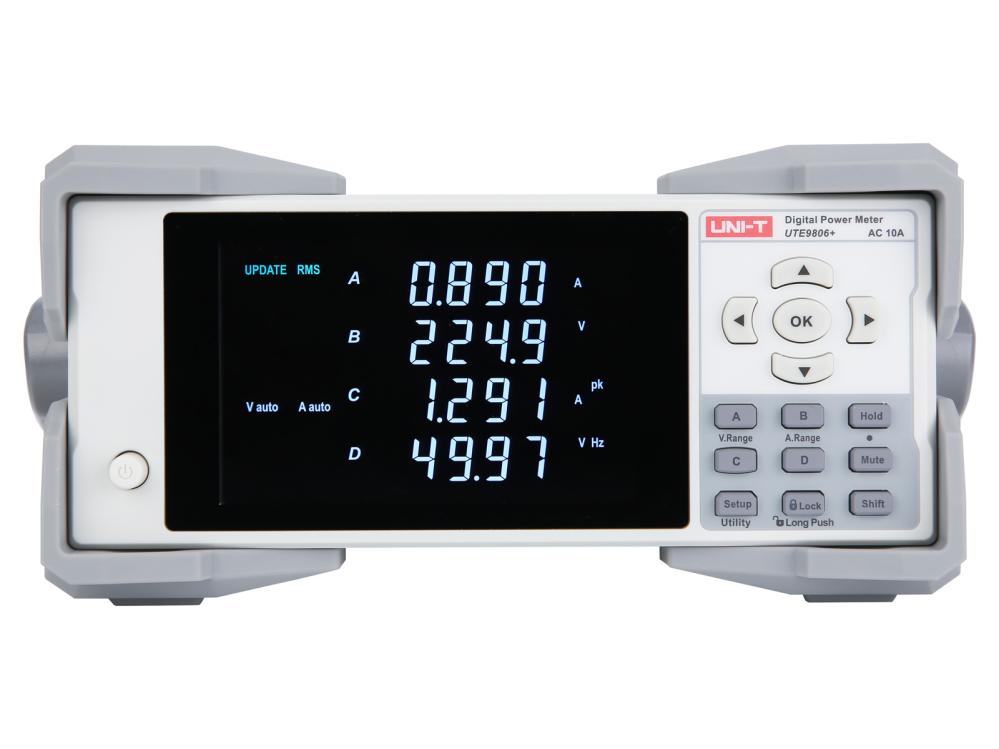

Measures with high accuracy and displays four different quantities with 5 characters in four windows: V, A, W and PF Hz. Can display moving average.
Measures voltage from 0.5V-600V DC and current from 0.05mA-10A - power up to 6kW Withstands higher voltages and currents, both continuously and short surges - see data sheet.
An alarm can warn with light and sound when voltage, current, power, or effective value exceeds or falls below limit values. In addition to upper and lower limit values, the user can also select a time delay.

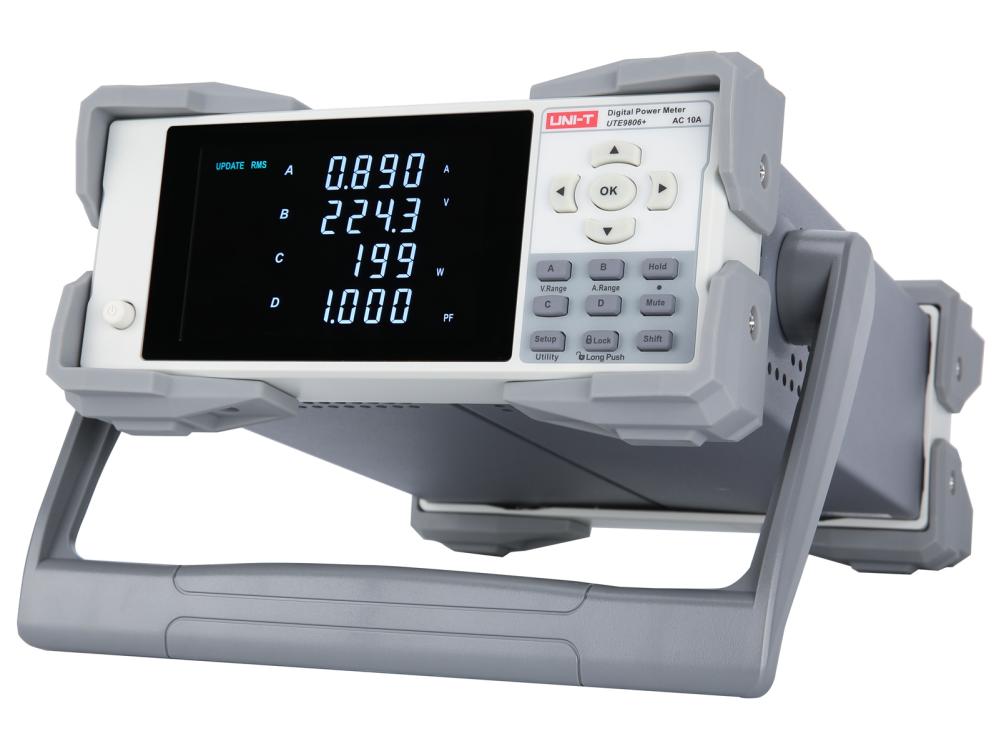

Compact and portable unit with carrying handle. Silicone corners protect against falls.
Support for RS232 and RS485 with SCP and Modbus. The unit can be connected to and remotely controlled from a computer or PLC. Uni-T's software can display the measurement data graphically with historical trend and export in CSV format.
| Display Update Rate | 0.1S, 0.25S, 0.5S, 1S, 2S, 5S |
| Measuring Object | V,A,W,VA,PF,V Hz / A Hz,Vpk/ Apk |
| Measuring Mode | AC |
| Measuring Range of Voltage | 0.5V-600V |
| Voltage Range | 60V/600V |
| Accuracy of Voltage (1% ~ 100% of range) |
40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) |
| Voltage Resolution | 0.01V/0.1V |
| Measuring Range of Current | 0.05mA-10A |
| Current Range | 50mA/100mA/10A |
| Accuracy of Current (1% ~ 100% of range) |
40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) |
| Current Resolution | 0.01mA / 0.1mA / 1mA |
| Switching Range | Auto/Manual |
| Power Range | 1W~6000W |
| Accuracy of Power (PF=1) | 40Hz≤f≤66Hz: ±(0.4% reading+ 0.1% range+1 character) 66Hz<f≤400Hz: ±(0.3% reading+ 0.2% range+1 character) (voltage > 10% of range, current > 1% of range) |
| Power Resolution | 0.001W/0.01W/0.1W/1W |
| Power Factor Range | -1.000~1.000 |
| Accuracy of Power Factor | ±0.01 |
| Frequency Range | 40Hz~400Hz |
| Accuracy of Frequency | ±0.1% reading |
| Weight | 3.3kg |
| Size | 214mm×88mm×340mm |
