Driver for tesla coils
Art no: 12306010
Sorry, this product is outdated and no longer active
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

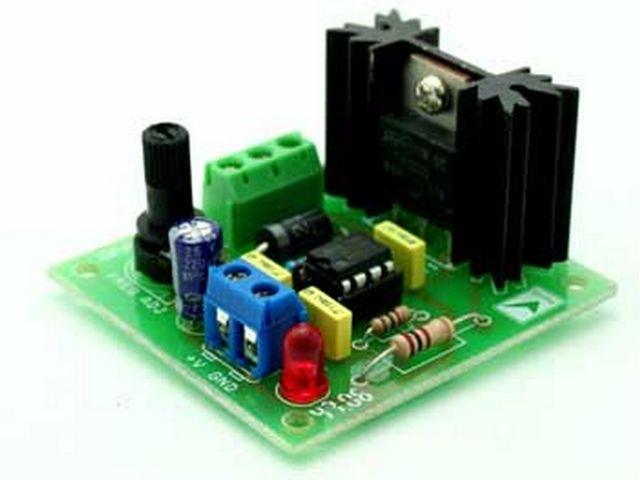

This kit is an ideal solution for power supply requirements of your TESLA coil experiments. Onboard oscillator can generate 20 KHz up to 30 KHz frequency required for energizing TESLA coil.
* Input 12 VDC @ 500 mA (current depends on coil)
* Onboard PRESET to adjust frequency of oscillator
* Diode protection at the output against back EMF produced by the Coil
* Heatsink for switching transistor
* LED indication for input
* Power Battery Terminal (PBT) for easy input and output connection
* Four mounting holes of 3.2 mm each
* PCB dimensions 51 mm x 54 mm
* Input 12 VDC @ 500 mA (current depends on coil)
* Onboard PRESET to adjust frequency of oscillator
* Diode protection at the output against back EMF produced by the Coil
* Heatsink for switching transistor
* LED indication for input
* Power Battery Terminal (PBT) for easy input and output connection
* Four mounting holes of 3.2 mm each
* PCB dimensions 51 mm x 54 mm
