Product description

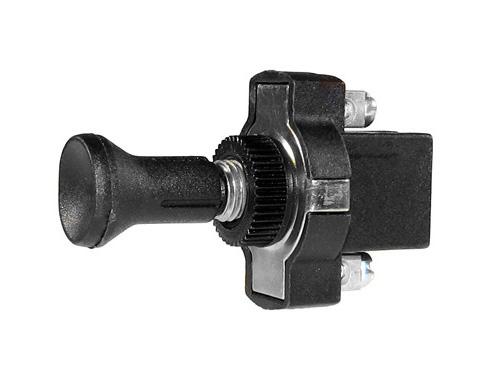

Panel-mounted single-pole pull switch. In pulled out position, the switch is on. Short neck for panel up to 4 mm. Suitable for automotive or marine use.
Specifications:
- Breaking capacity: 16 A / 12 VDC
- Breaking capacity: 8 A / 24 VDC
- Function: (off-on) 2 positions, off or on
- Connection: Screw terminals (0.5–2.5 mm² wire)

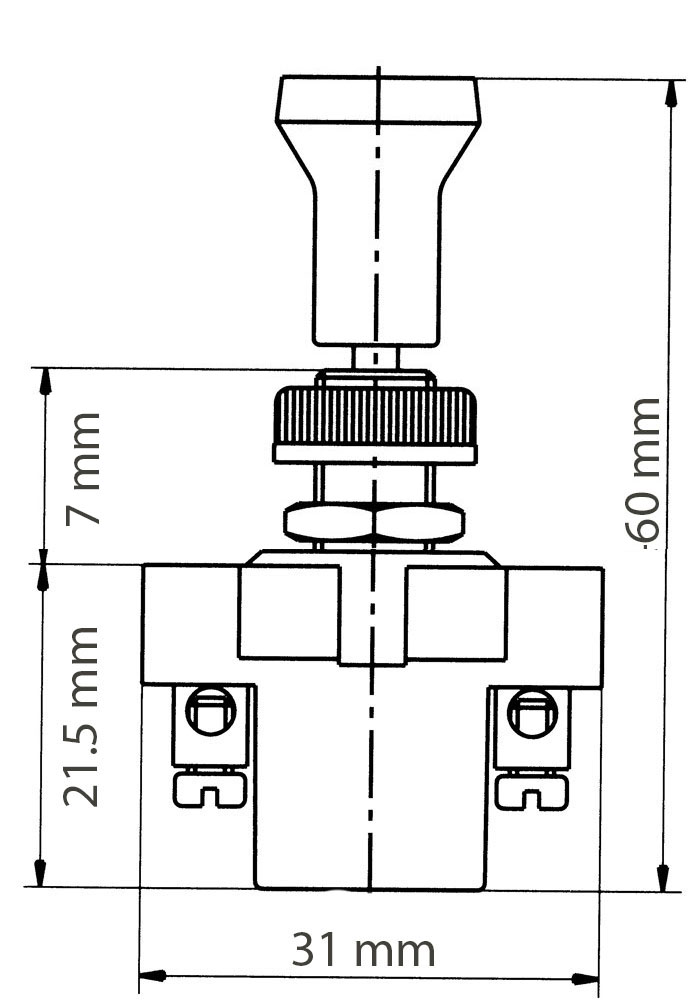

- Fits in hole diameter: 8 mm
- Panel thickness (min–max): 1.5–4 mm
- Mounting depth: 22 mm
- Total switch length, pushed in position (off): 42 mm
- Total switch length, pulled out position (on): 54 mm
