Product description

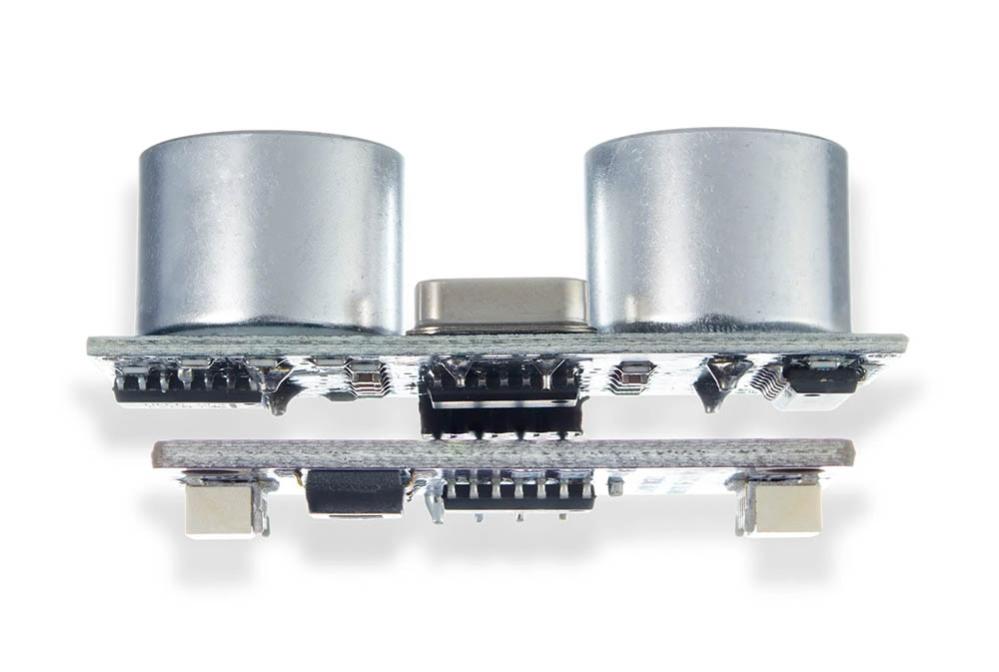

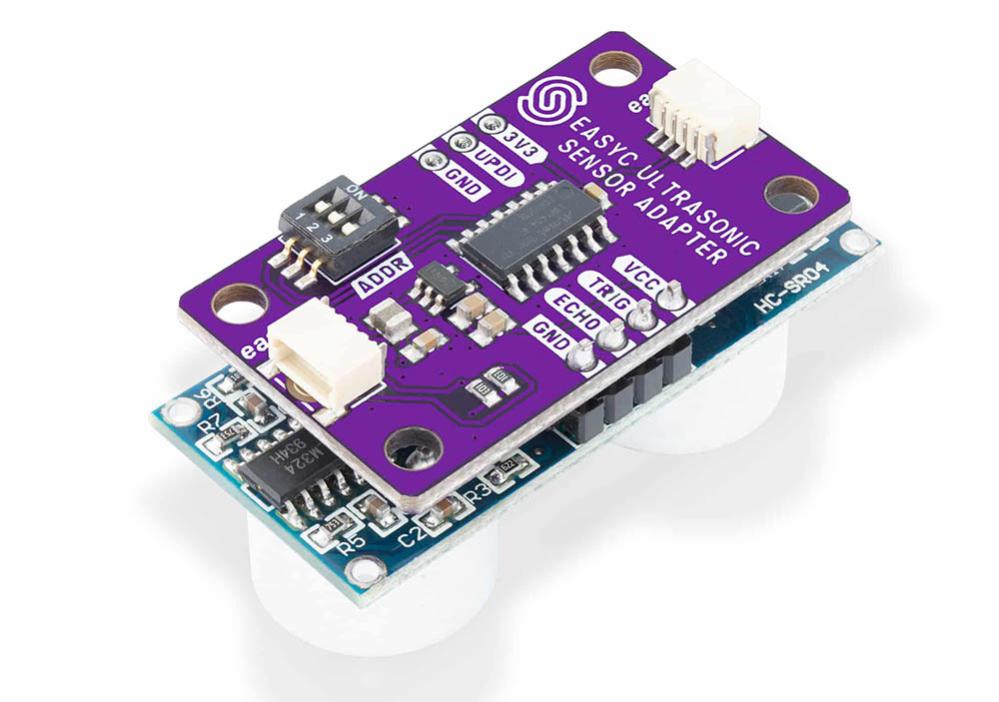

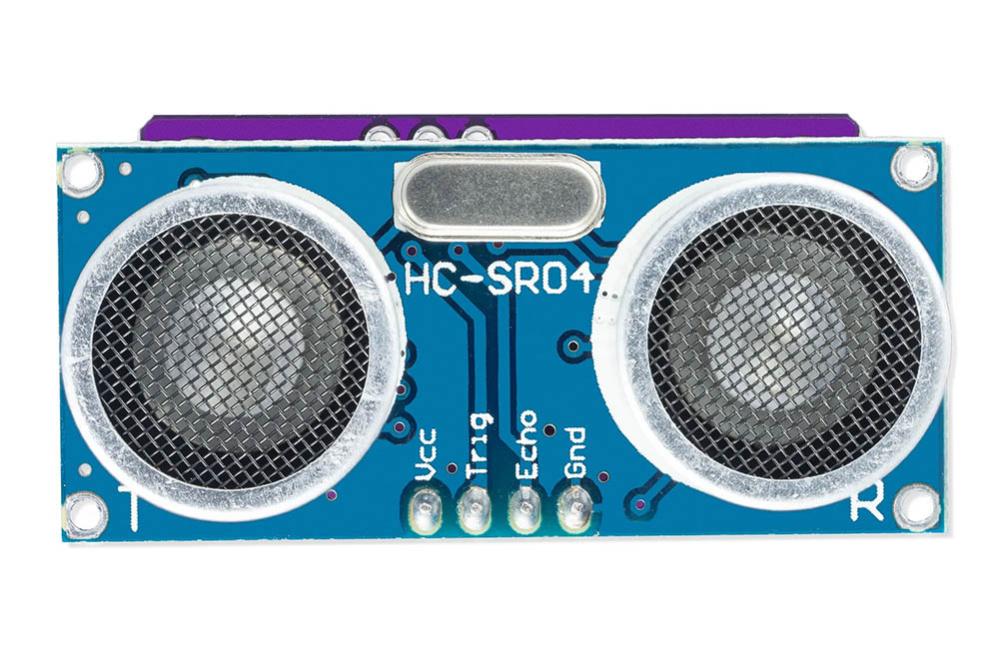

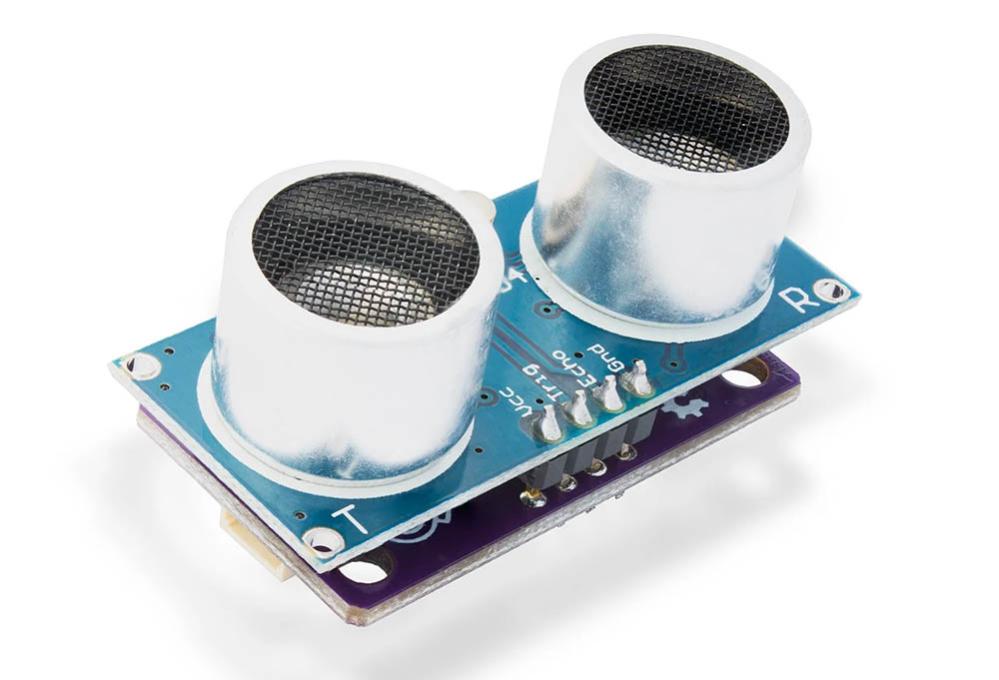

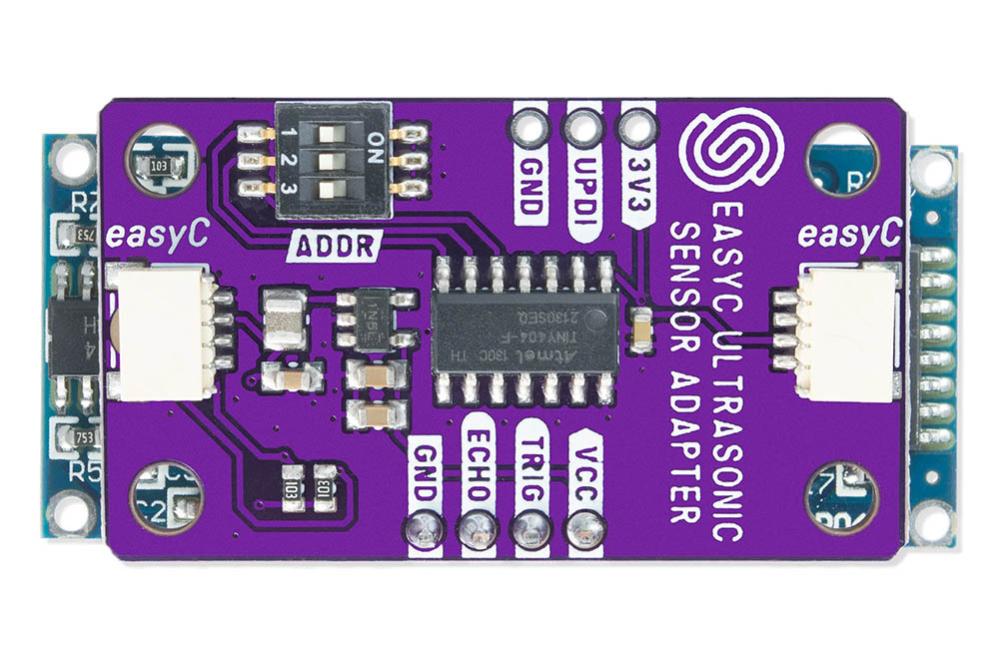

Ultrasonic sensor with Qwiic connector for distance measurement. The sensor is based on the well-known HC-SR04 and is mounted on a board with a built-in ATtiny microcontroller that transmits measurement data digitally via the Qwiic interface. This simplifies connection to microcontroller boards and eliminates the need for separate trigger and echo signals. The sensor is suitable for applications such as robotics, level measurement, obstacle detection and automated systems where distance measurement is required.
Specifications:
- Sensor type: Ultrasonic sensor
- Sensor module: HC-SR04
- Communication: I2C via Qwiic
- Connection: 2x Qwiic
- Measurement range: 2 to 400cm
- Accuracy: ±1cm
- Detection angle: 15°
- Supply voltage: 5V
- Dimensions: 45 x 22mm
