Product description

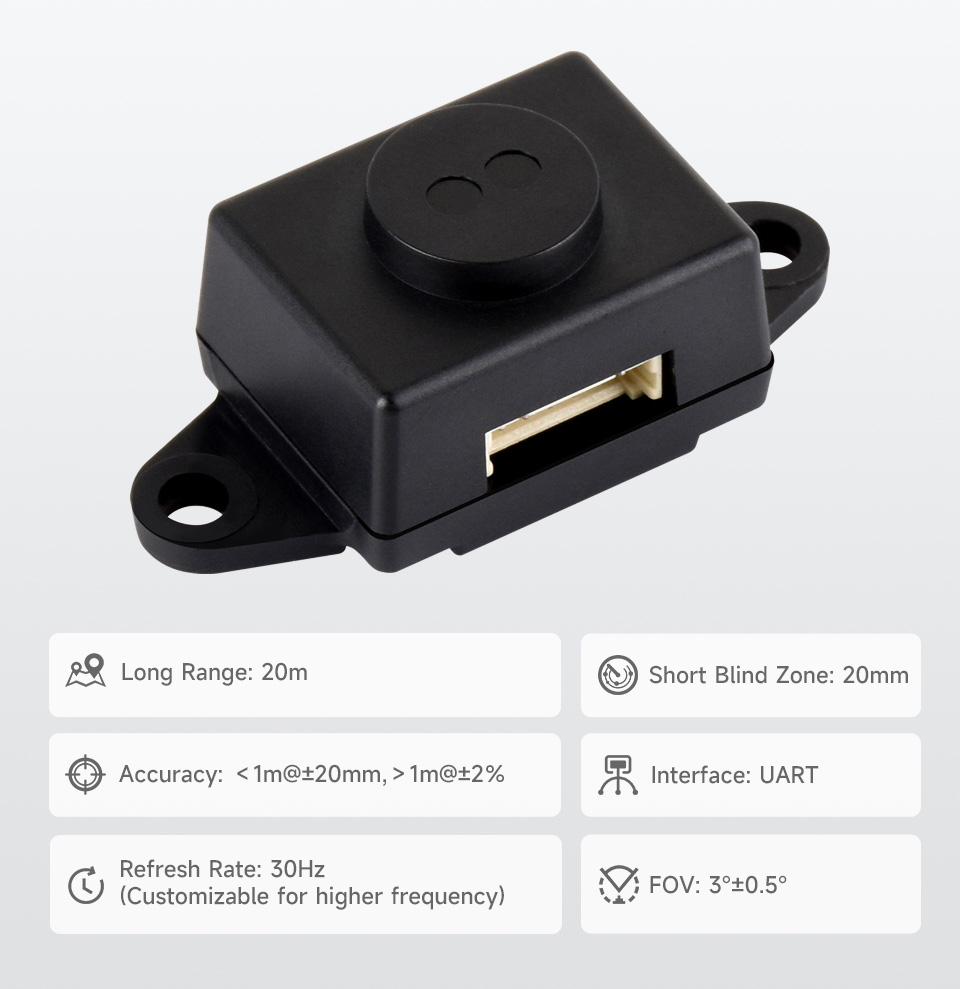

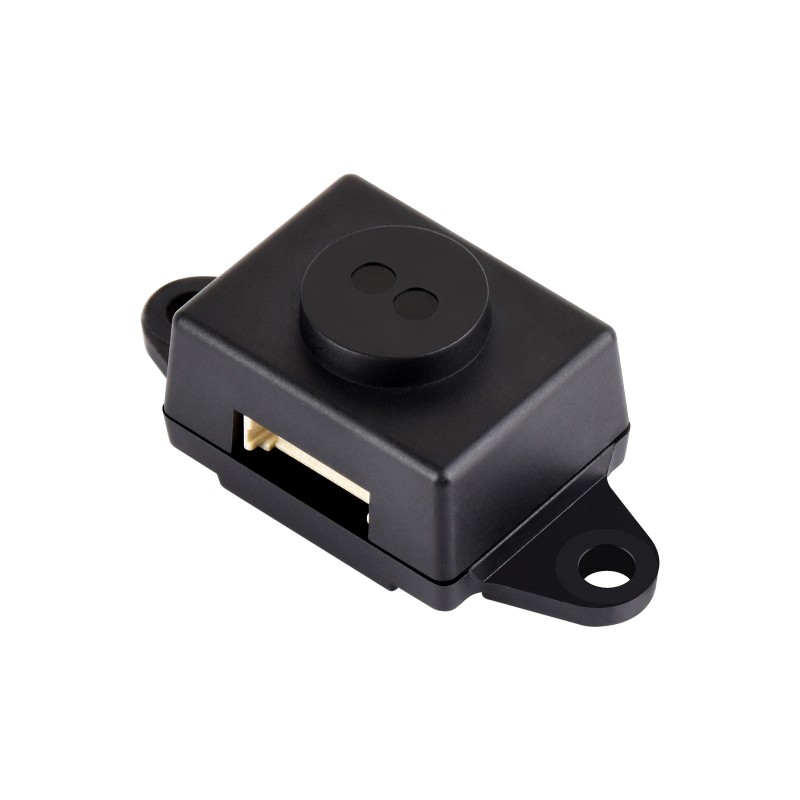

LiDAR-based distance sensor for precise measurement up to approximately 20 meters. The sensor features low power consumption and a high update rate. It is designed according to the ToF principle (Time of Flight) and built around a D-TOF single-point sensor with an integrated microcontroller. The narrow measurement angle enables accurate point measurements without being affected by surrounding objects. Optical algorithms are used for stable, accurate, and sensitive distance detection. Typical applications include precise distance measurement in robotics, autonomous systems, industrial automation, and level detection. The sensor module communicates via UART, simplifying connection to microcontrollers.
Specifications:
- Range: 0.02 to 20 m
- Field of view: 3° ±0.5°
- Accuracy: 1 m <±20 mm, >1 m ±2 %

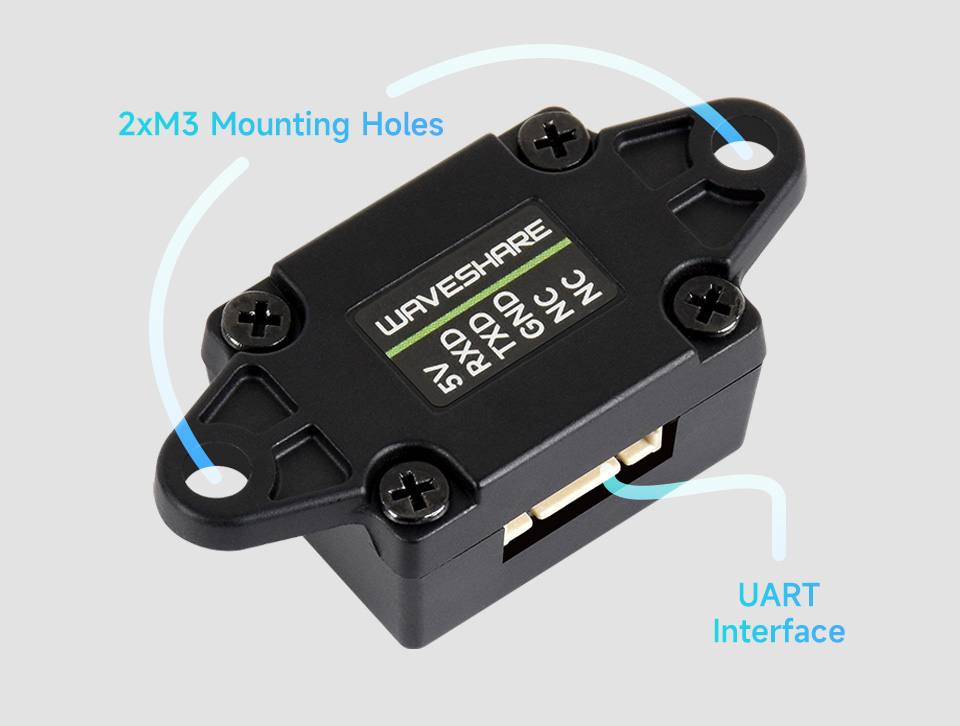

- Communication: UART TTL 3.3 V
- Baud rate: 115200
- Update rate: 30 Hz
- Wavelength: 940 nm
- Ambient light resistance: up to 100,000 lux
- Operating temperature: 0 °C to 60 °C
- Current consumption: 34 mA
- Supply voltage: 5 V
- Logic level: 3.3 V
- Included connection cables: 2 pcs 10 cm

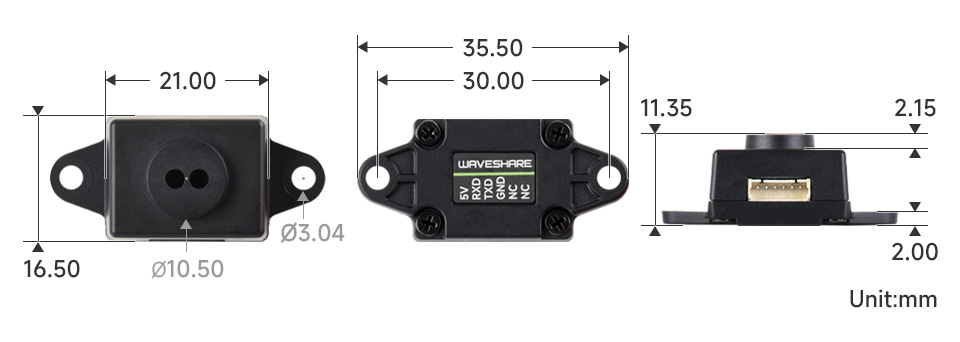

- Dimensions: 35.5 x 16.5 x 11.4 mm
