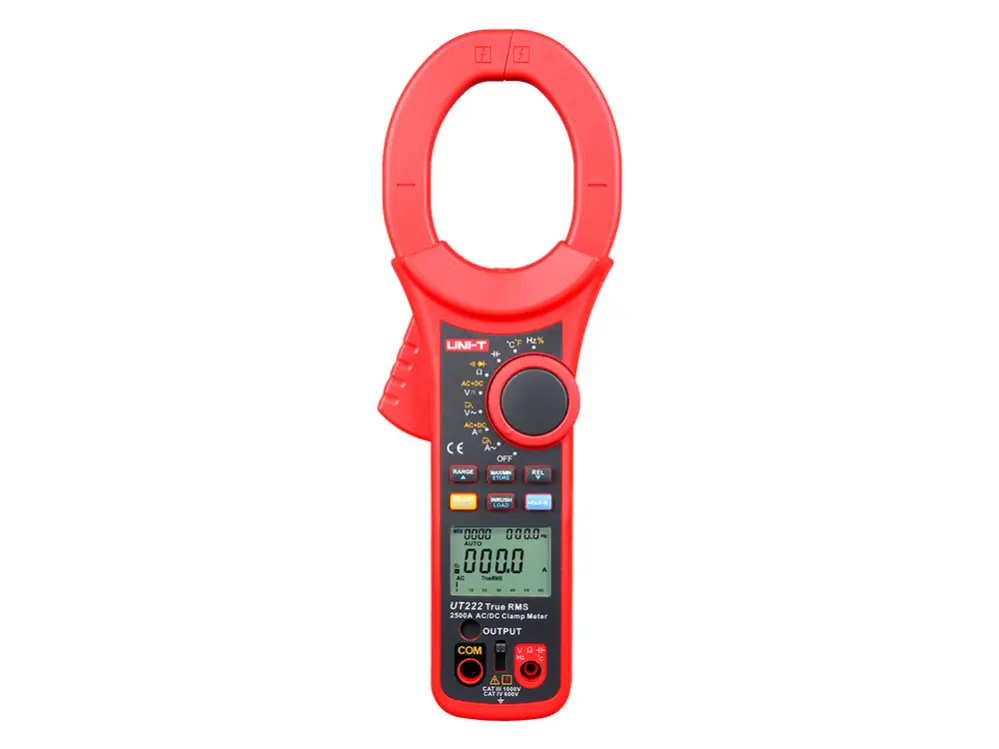

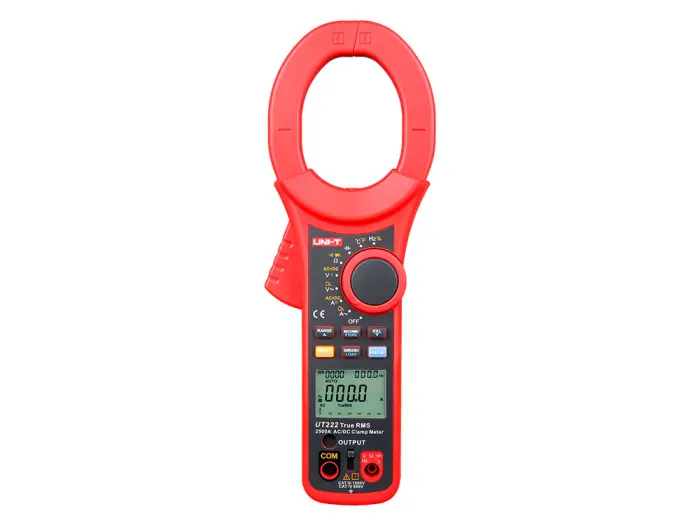

Digital clamp multimeter AC/DC Uni-T UT222

UNI-T UT222 is a high-performance clamp multimeter that handles advanced measurements, with large measurement ranges. Measures AC and DC current up to 2500A with high accuracy, ± (1.5%+5). Measures AC and DC voltage up to 1kV, resistance up to 60MΩ, capacitance up to 6000uF and frequency up to 60MHz. Has diode test and continuity test with buzzer.

Also measures temperature, from -40°C to 1000°C with the included temperature probe, pulse width (duty cycle) and inrush current. Can deliver a signal corresponding to the measured current (1mV/A) on an output, cable included.

The meter has a large display (43 x 30mm) with 6000 counts (0-5999) with backlight.

Automatic setting of the measuring range (auto range), bar graph, min/max, relative mode and hold function make measurements easier. Memory function. Low-pass filter for AC measurement.

Automatic shutdown and low battery indicator

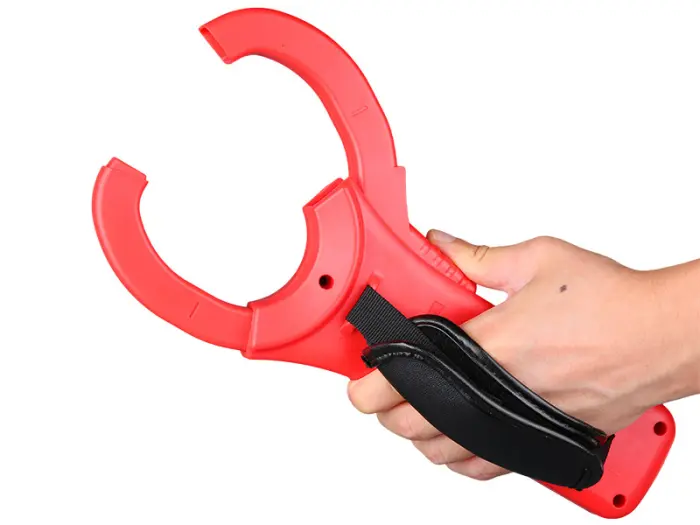

Large jaws, 63mm opening, enable measurement on large conductors.

Supplied with test probes, temperature probe, output cable, 1x 9V battery.

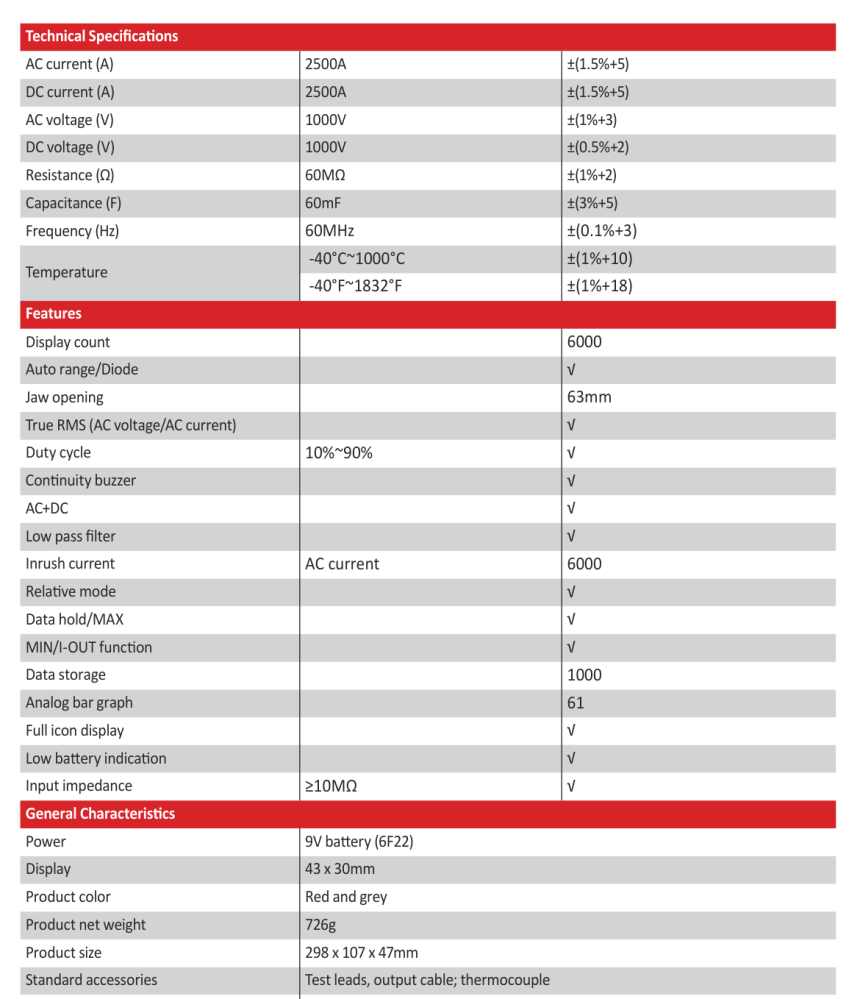

Measuring range / accuracy:

• ACA 2500 A ± (1.5% +5)
• DCA 2500 A ± (1.5% +5)
• ACV 1000 V ± (1% +3)
• DCV 1000 V ± (0.5% +2)
• Resistance: 60 Mohm ± (1% +2)
• Capacitance: up to 6000uF, ± (3% +5)
• Frequency: 10Hz to 60 MHz, 1VRMS-30VRMS ± (0.1% +3)
• Temperature: -40°C – 1000°C, ±(1% +10)

Specifications:

• Counts: 6000 (0-5999)
• Jaws: 63mm
• Dimensions: 298 x 107 x 47mm
• Weight: 726 g
• Safety: CAT III 1000V, CAT IV 600V
• Battery: 1x 9V
