Product description

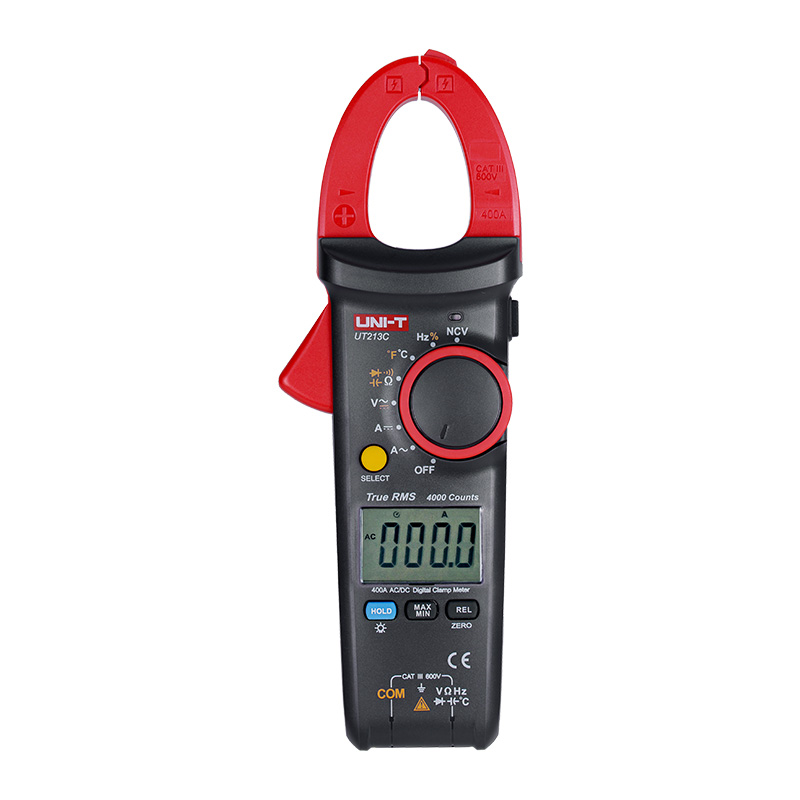

UNI-T UT213C is a with many types of measurements. Measures AC and DC current up to 400A, AC and DC voltage up to 600V, resistance up to 40MΩ, capacitance up to 4000uF and frequency up to 10MHz. Also measures duty cycle.
Diode test witth 3V, continuity meter with buzzer. NCV function (non-contact voltage tester) detects live wires (≥ 100VRMS, within 10 cm). True RMS.
Automatic setting of the measurement range (auto range), min/max, relative mode and hold function make measurements easier.
Measures temperature, from -40°C to 1000°C with the included temperature probe.
The meter has a backlit display with a scale length of 4000 (4000 counts, shows 0-3999).

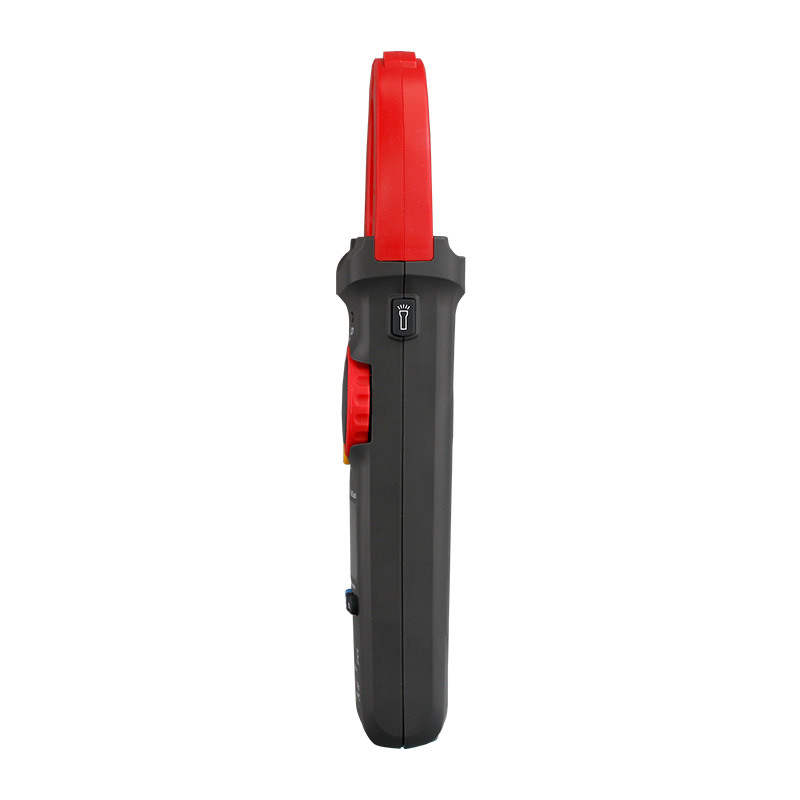

Automatic shutdown and warning for low battery level. Built-in flashlight.
Comes with test probes, temperature probe, 3x AAA batteries.
Measurement range / accuracy:
- ACA: 400 A ± (2.5 % +5)
- DCA: 400 A ± (2 % +3)
- ACV: 600 V ± (1.2 % +5)
- DCV: 600 V ± (0.8 % +3)
- Resistance: 40 Mohm ± (1 % +2)
- Capacitance: 4000 uF ± (4 % +5)
- Frequency: 10 Hz to 1 MHz ± (0.1 % +4)
- Temperature: -40℃~1000℃ ± (1 % +3)
Features:
- 4000 counts (0-3999)
- Jaws: 30 mm
- Dimensions: 220 x 75 x 40 mm
- Weight: 280 g
- Battery: 3x AAA
- Safety: Cat III 600 V
