Product description

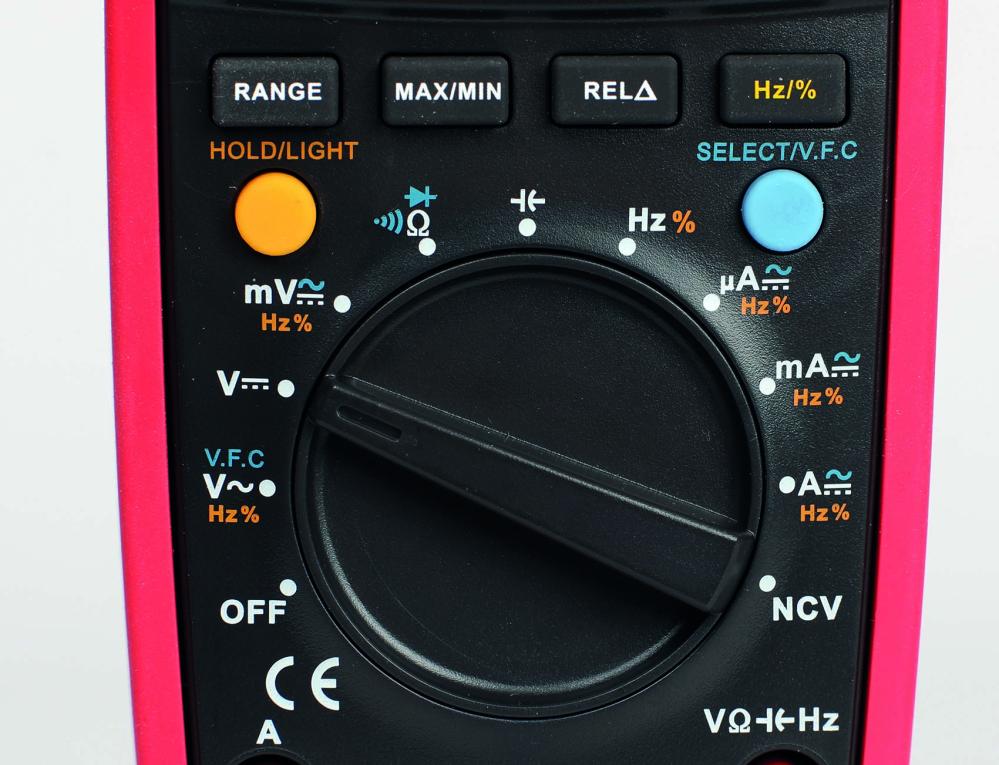

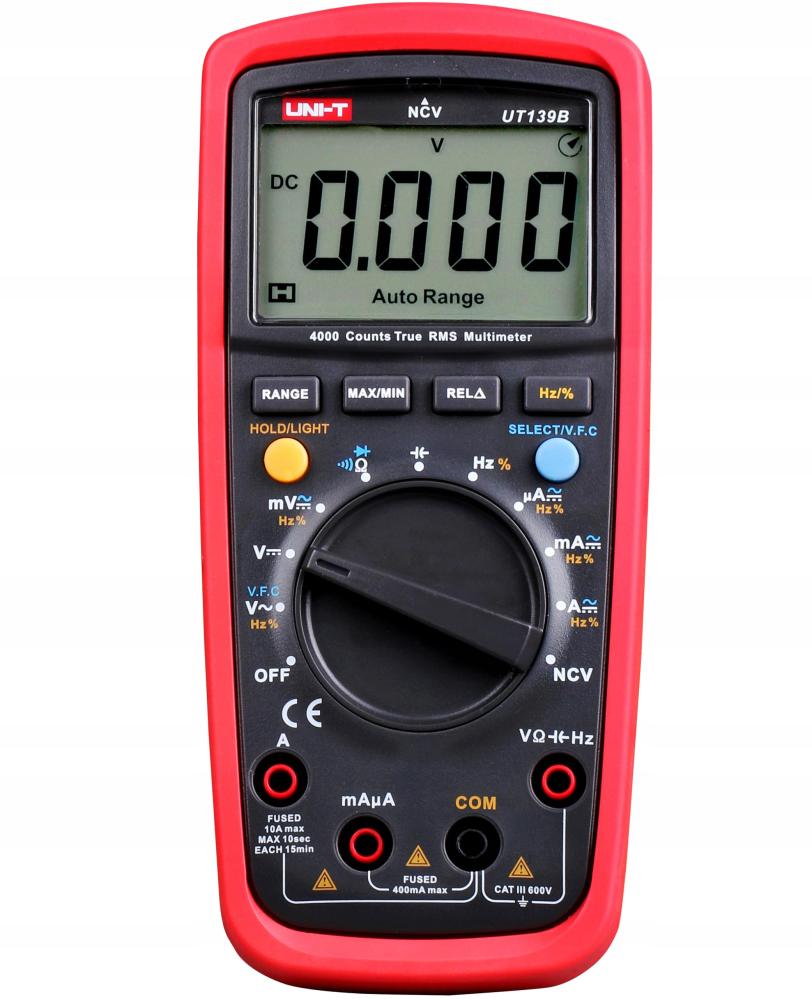

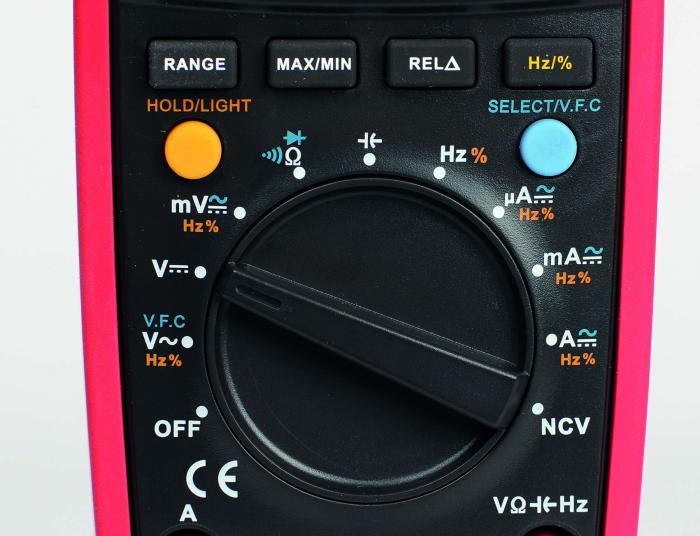

Professional multimeter for many types of measurements, with 3 3/4 digits. Measures voltage (AC and DC) up to 600V, current (AC and DC) up to 10A, resistance and resistance, capacitance, frequency and pulse width (duty cycle). Continuity test with buzzer and diode test with 3V. The instrument has a built-in sensor for non-contact voltage testing (230 VAC). Large (58 x 36 mm) backlit LCD display with 4000 scale steps (0-3999). Automatic switch-off function that can be switched off if desired. With the Hold function, measured values can be frozen in the display. Relative mode. Handy clamps for storing the measurement probes.

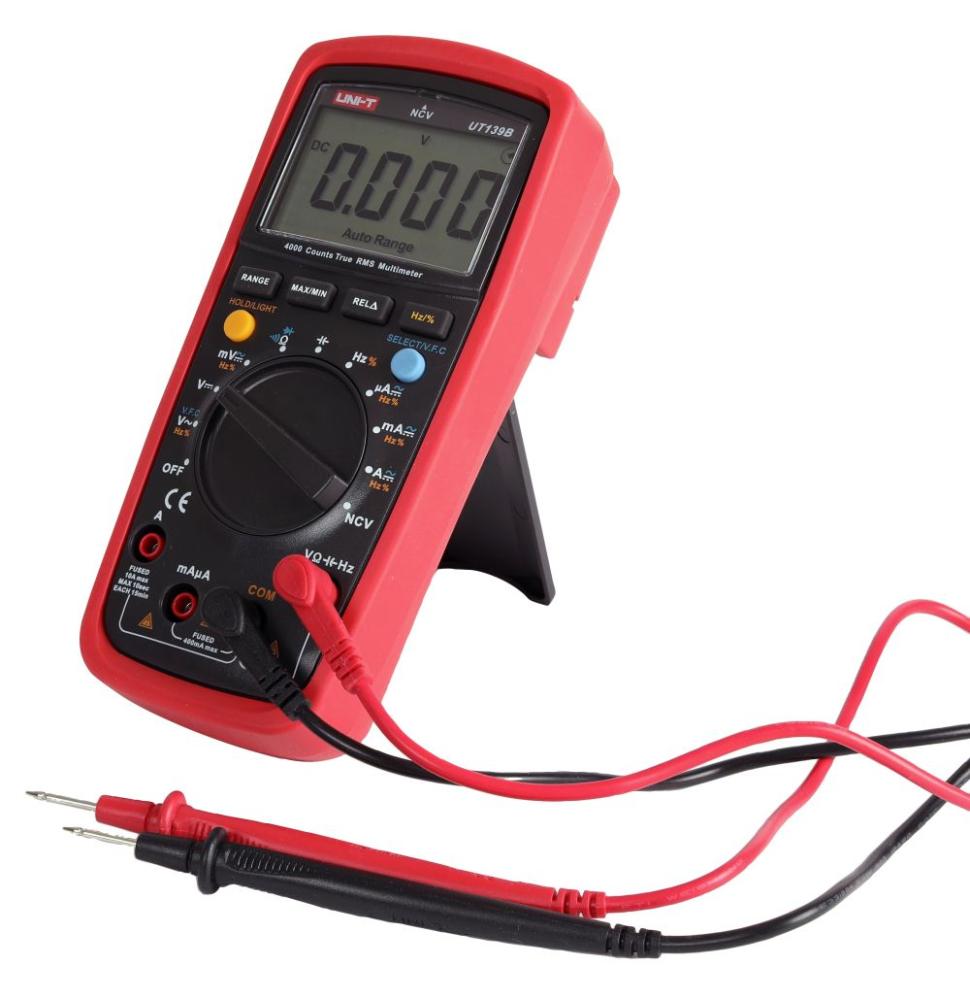

Supplied with test leads and 2x AA batteries.
Measuring range/accuracy:
- ACV: 0-600 V ± 0.8%+3
- DCV: 0-600 V ±0.7% +3
- ACA: 0-10 A ±1.2% +3
- DCA: 0-10 A ± 1% +3
- Resistance: 0-40 Mohm ± 0.8% +2
- Capacitance: 0-9999 uF ± 4% +5
- Frequency: 10Hz-10MHz ± 0.1 % +4
Specifications:
- Scale steps: 4000 (0-3999)
- Bandwidth: 45 - 1 kHz
- Dimensions: 170 x 80 x 48mm
- Weight: 354 g
- NVC (Non-Contact Voltage Test)
- Battery: 2x AA
- Safety category: CAT III 600V
