Product description
Digital desoldering station with an integrated vacuum pump for efficient desoldering of through-hole components (THT) and removal of solder from printed circuit boards. The ZD-8965 combines a temperature-controlled desoldering gun with a vacuum pump that extracts molten solder. The station is suitable for repair, servicing and rework of electronic circuit boards.
The desoldering station has an adjustable temperature range from 160 to 480 °C. The temperature is set using three push buttons in increments of 1 or 5 °C and can be displayed in Celsius or Fahrenheit. A large, backlit LCD shows the current temperature. The station also features a memory function for storing temperature settings.
The desoldering gun has an ergonomic handle and a solder collection chamber that can be easily cleaned. The included holder has a stable base with separate compartments for a cleaning sponge and desoldering tips.
The station features an automatic sleep mode that activates after 10 minutes of inactivity to reduce power consumption and extend the service life of the equipment.
Specifications:
- Model: ZD-8965
- Type: Digital desoldering station with vacuum pump
- Heating element: Ceramic
- Desoldering gun power: 140 W
- Temperature range: 160–480 °C
- Temperature adjustment: Increments of 1 or 5 °C
- Temperature unit: °C or °F
- Display: Backlit LCD
- Temperature memory: Yes
- Vacuum pressure: 0.6 bar
- On/off switch on the rear of the unit: Yes
- Desoldering gun cable length: 1 m
- Sleep mode: Automatic after 10 minutes of inactivity
- Desoldering gun: ZD-553P
- Desoldering tips: N5 series
- Dimensions, station: 140 x 170 x 190 mm
- Dimensions, desoldering gun: 125 x 30 x 190 mm
- Supply voltage: 230 VAC
- Weight: 2.2 kg
Supplied with:
- Desoldering station with ZD-553P desoldering gun
- Desoldering gun holder with base
- 2x desoldering tips (N5-1 and N5-3)
- 3x cleaning needles (Ø0.7, Ø0.9 and Ø1.2 mm)
- 1x filter Ø20.8 mm (station)

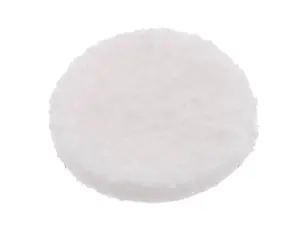

- 3x filters Ø16.8 mm (desoldering gun)
- Earthed power cable
- User manual
