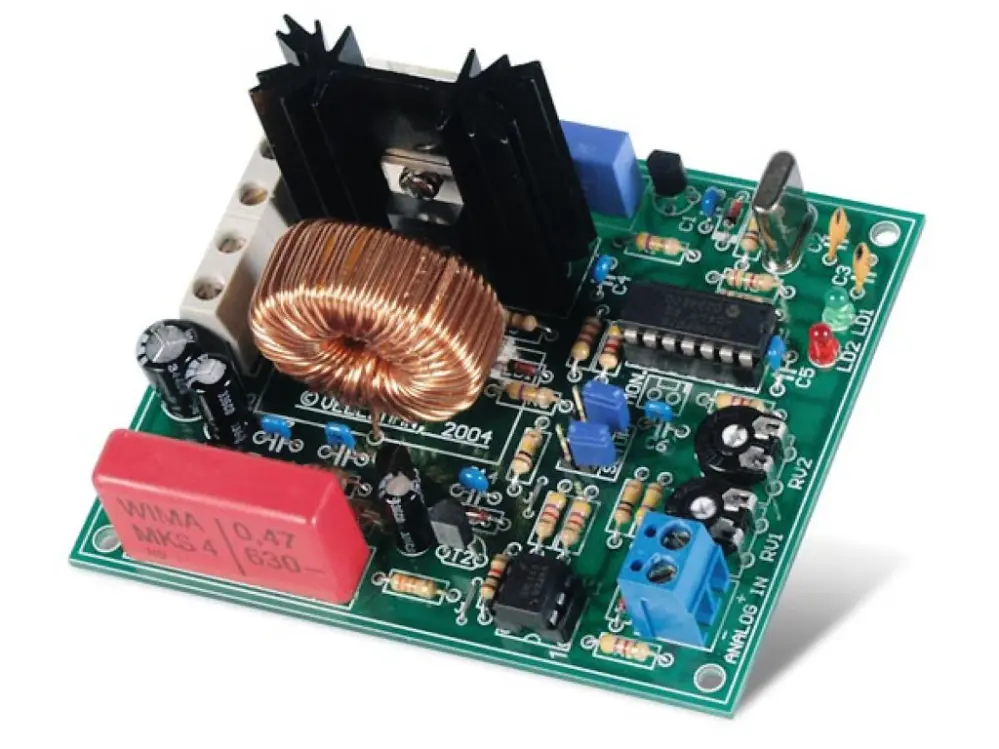

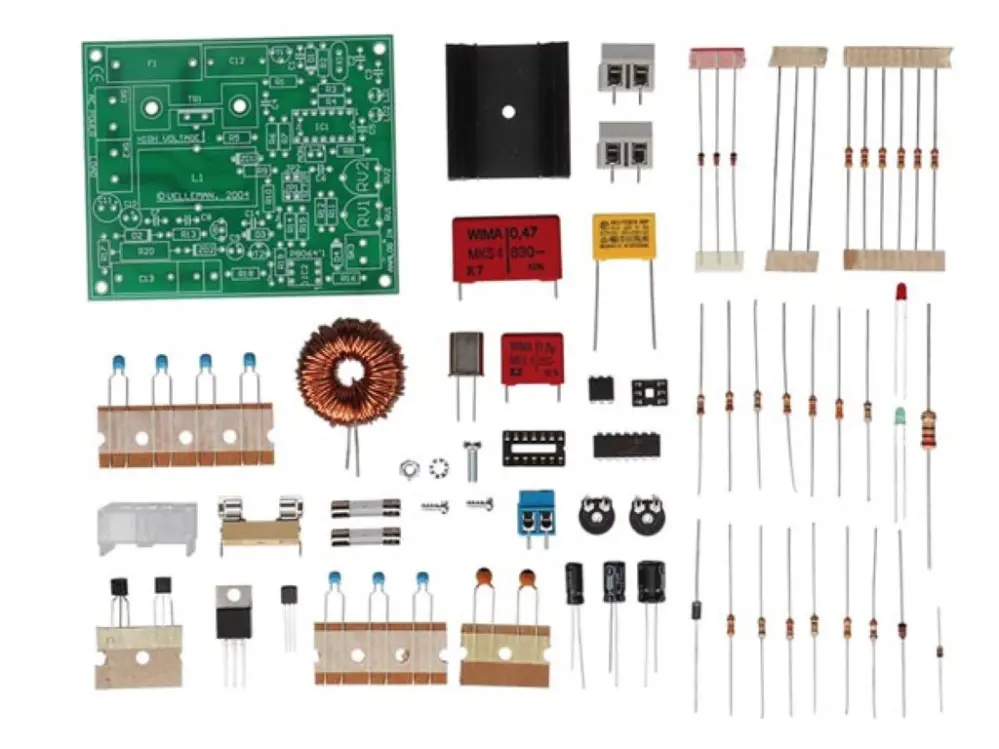

DC-controlled dimmer
Art no: 12008064
Velleman - WSL8064
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Features
simple brightness adjustment by means of a DC voltage
optically isolated adjustment input
pre-set adjustment for full brightness
suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
"Soft start" feature to ensure lamp longevity
transformer protection in case of defective light sources
LED status indication
compatible with our computer interface cards: K8000, K8055
Specifications
adjustment voltage: 0 to 12Vdc max.
max. adjustment current: 2.25mA at adjustment voltage of 12V
suppression of radio & TV interference according to EN55015
operating voltage: 110-125V or 230-240V AC (50/60Hz)
max. load: 750W/230V or 375W/110V, 0-98% adjustable
max. phase shift with inductive load: 30°
PCB dimensions: 90 x 75 x 40mm (3.5" x 3.0" x 1.6")
simple brightness adjustment by means of a DC voltage
optically isolated adjustment input
pre-set adjustment for full brightness
suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
"Soft start" feature to ensure lamp longevity
transformer protection in case of defective light sources
LED status indication
compatible with our computer interface cards: K8000, K8055
Specifications
adjustment voltage: 0 to 12Vdc max.
max. adjustment current: 2.25mA at adjustment voltage of 12V
suppression of radio & TV interference according to EN55015
operating voltage: 110-125V or 230-240V AC (50/60Hz)
max. load: 750W/230V or 375W/110V, 0-98% adjustable
max. phase shift with inductive load: 30°
PCB dimensions: 90 x 75 x 40mm (3.5" x 3.0" x 1.6")
Documents
Product information
SKU:
12008064MPN:
WSL8064EAN / GTIN:
5410329733506
