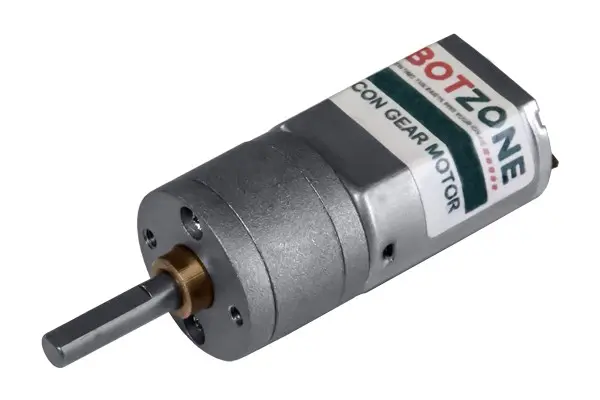

DC motor with gearbox 25:1 6-18V 508rpm
Art no: 41015441
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
DC motor with planetary gearbox. The gearbox has a ratio of 25:1 with an unloaded shaft speed of 508rpm.
Please note! This motor must not be stalled or damage to the gearbox may occur!
* Operating voltage: 6 - 18VDC
* No load current: 0.08A
* No load speed: 508rpm
* Stall current: 1.4A
* Stall torque: 2.4kgf-cm (33.3oz-in)
* Gear Ratio: 25:1
* Shaft size: 4mm (0.1575")
* Weight: 44g (1.55oz)
Please note! This motor must not be stalled or damage to the gearbox may occur!
* Operating voltage: 6 - 18VDC
* No load current: 0.08A
* No load speed: 508rpm
* Stall current: 1.4A
* Stall torque: 2.4kgf-cm (33.3oz-in)
* Gear Ratio: 25:1
* Shaft size: 4mm (0.1575")
* Weight: 44g (1.55oz)
Documents
Technical data
| Attribute | Value |
|---|---|
|
Rpm
|
508 RPM
|
|
Shaft
|
4mm
|
|
Voltage
|
12 V
|
