Product description

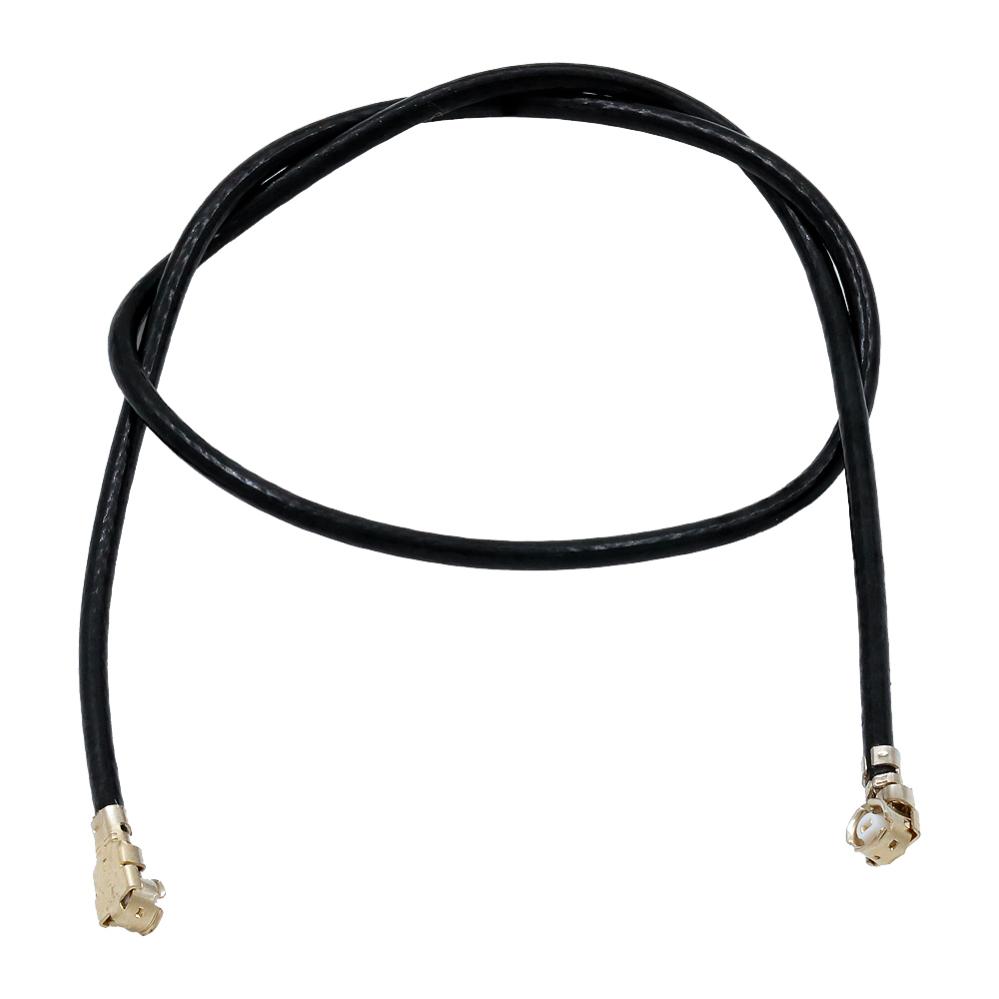

200 mm coaxial cable with two IPEX4 connectors. The connectors feature a right-angle design. The cable assembly is suitable for systems requiring high-frequency coaxial transmission, such as wireless communication modules, antenna connections, and test and measurement equipment. The high transmission frequency makes it well suited for applications involving high-speed signal transmission or reception where low loss and proper impedance matching are desired.
Specifications:
- Connectors: IPEX4
- Impedance: 50 Ohm
- Max frequency: 6.0 GHz
- VSWR (max): 1.5
- Mating/Unmating cycles: 30
- Length: 200 mm
- Cable outer diameter: 0.81 mm
- Temperature range: -40 to +90°C
