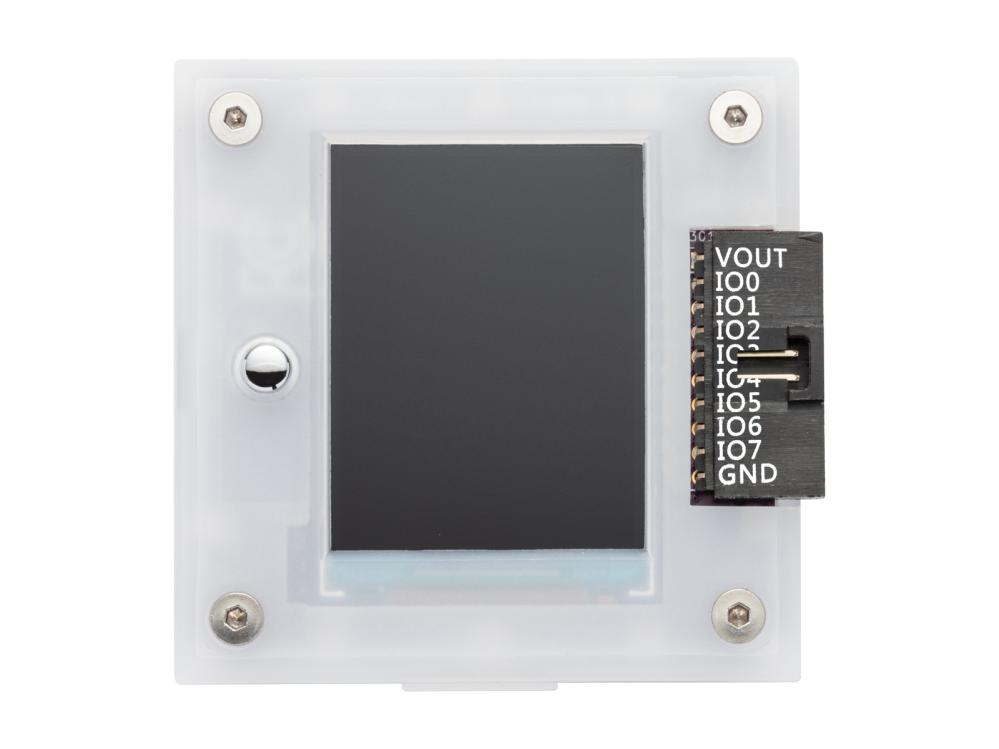

Bus Pirate v5 with enclosure REV10

Art no: 41021981 - Dangerous Prototypes
Shop this product, Bus Pirate v5 with enclosure REV10
new price 599 SEK
old price 649 SEK
Including 25% VAT
In stock, 22 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Bus Pirate 5 REV10 is the latest generation of the popular open-source hardware debugging tool and serves as a versatile instrument for troubleshooting and electronics development. It is particularly useful for engineers, hackers, and makers. Developed by Dangerous Prototypes, Bus Pirate 5 is a universal debugging tool designed for analyzing and troubleshooting microcontrollers, sensors, and other integrated circuits. Its primary function is decoding and debugging serial protocols and other low-level communications.

Specifications:

  • Universal bus master: Supports UART, I²C, SPI, 1‑Wire, MIDI, and manual bit-banging
  • Voltage adaptation: Configurable I/O voltage from 0 V to 5 V, with level shifting for compatibility with various target devices
  • Interactive interface: Command-line terminal via USB serial connection with help functions, data logging, and scriptable interaction
  • USB connectivity: Powered and programmed via USB; appears as a standard COM port on Windows, macOS, and Linux

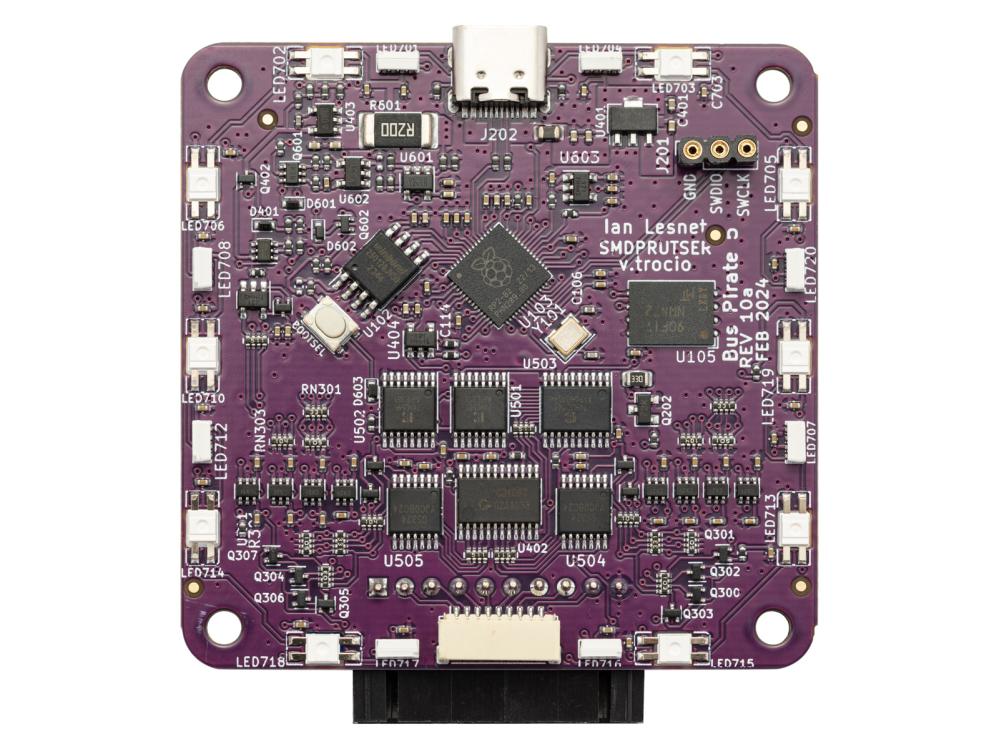

  • Improvements in REV10: Refined PCB layout, improved signal integrity, and more robust connectors

Typical use cases:

  • Troubleshooting and monitoring serial data buses in embedded systems
  • Reverse engineering of protocols and communication analysis
  • Firmware development and low-level hardware testing
  • Educational tool for learning digital protocols and electronics

Why choose Bus Pirate 5 REV10:

  • All-in-one solution: Replaces the need for multiple adapters and breakout boards
  • Community support: Documentation, forums, and ongoing firmware improvements
  • High flexibility: Handles a wide range of logic levels and communication protocols
  • Compact and robust: Suitable for field use and prototyping work

Based on Paspberry Pi RP2040:

  • Based on Raspberry Pi Foundation RP2040
  • 128Mbit flash storage for lots of features
  • Firmware developed with the Pico C language SDK

8 Buffered IO pins:

  • 1.65-5volt operating range, 3 state
  • Voltage measurement on every pin
  • Toggleable 10K pull-up resistors
  • 10 pin x 2.54mm main header
  • 9 pin x 1.0mm auxiliary header

Programmable Power Supply Unit:

  • Current Sense
  • Programmable 1 - 5.0 V output
  • Programmable 0 - 500 mA current limit
  • Resettable digital fuse
  • Protection circuit

1Gbit NAND flash storage:

  • Save global and mode settings
  • Appears as a USB disk drive
  • Future use for logs, dumps and stand-alone programming

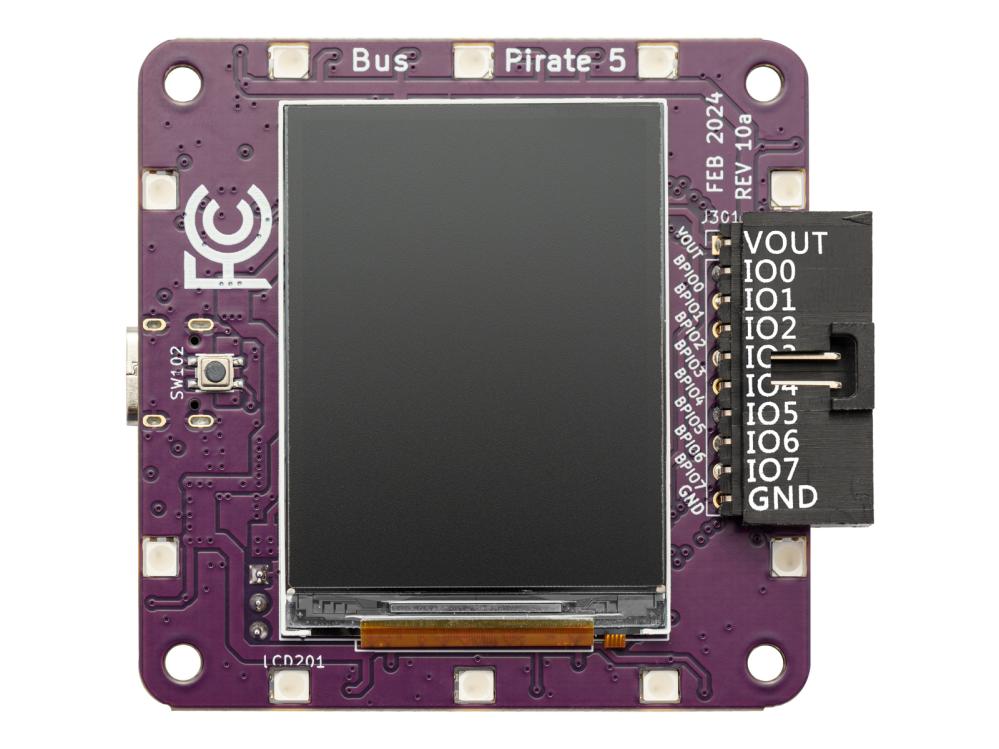

Display:

  • 320 x 240 pixel IPS all direction display
  • Pin labels
  • Live voltage measurements
  • Live current consumption

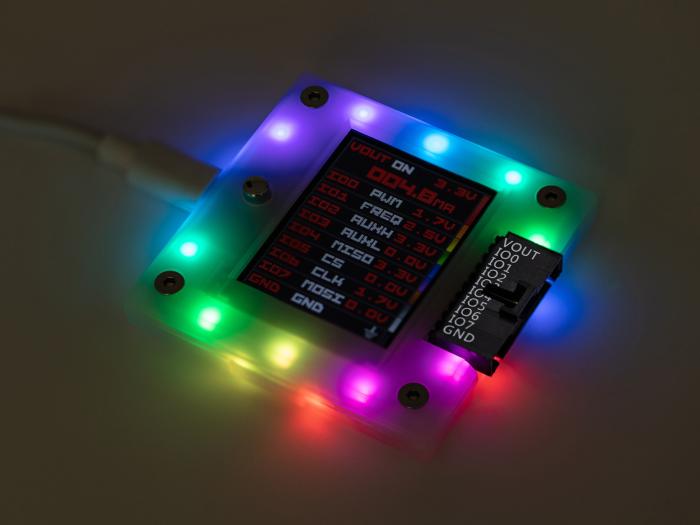

18 RGB LEDs:

  • Introduction demo
  • Party mode

Just one button:

  • Escape from modes
  • User input for production programming, remote hacking, whatever

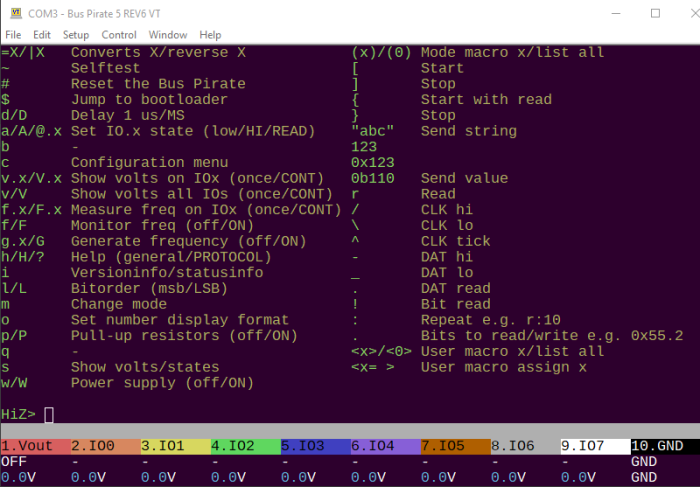

VT100 terminal interface:

  • Color interface
  • Live update toolbar/monitor

USB bootloader:

  • Updating is as simple as dragging a file onto the disk

USB C connector:

  • Limited to the USB speeds supported by the RP2040

Specifications:

  • Raspberry Pi RP2040 with 128Mbit program flash
  • 8 powerful IO pins - Support multiple protocols from 1.2-5volts. Analog voltage measurement and optional 10K pull-ups on all pins
  • 1-5volt output power supply - 0-500mA current limit, current sense, resettable fuse and protection circuit
  • 1Gbit NAND flash - Store settings and files. Appears as a USB drive.

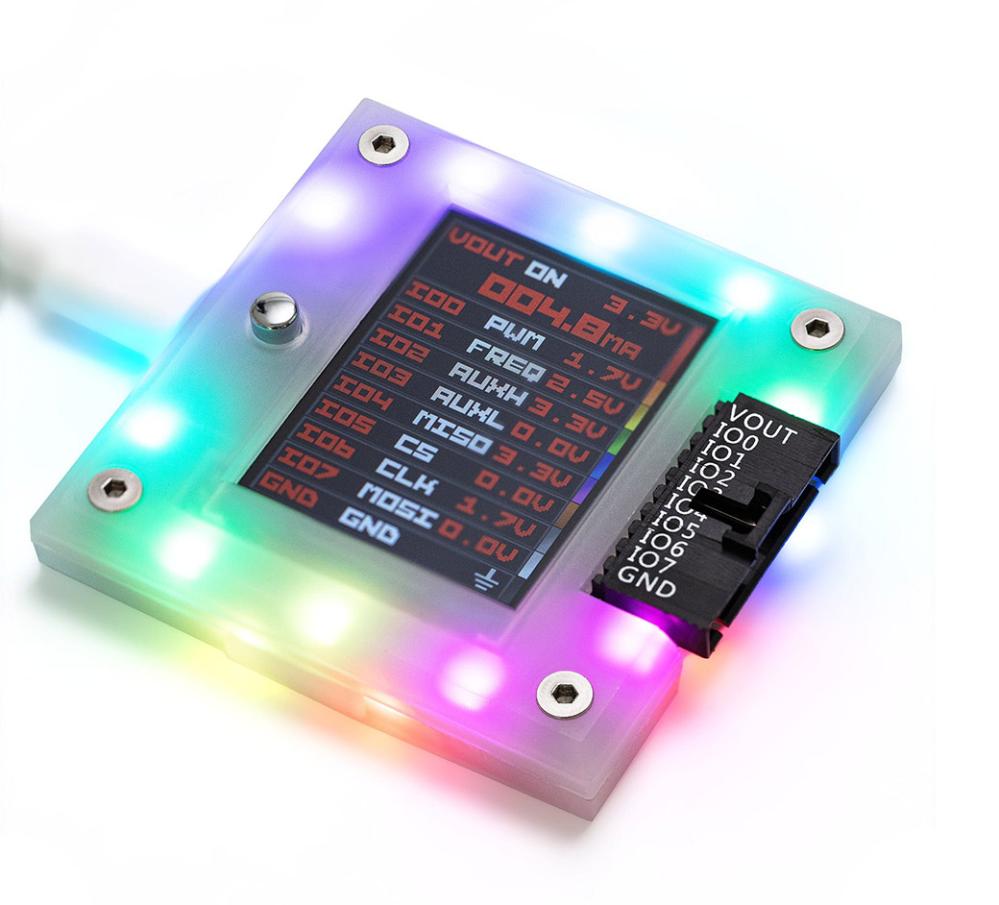

  • LCD - A beautiful 240x320 pixel color IPS (all angle viewing) LCD acts as a pin label, while also showing the voltage on each pin and the current consumption of the programmable power supply unit
  • 18 RGB LEDs - It's customary to have an indicator LED, so to check that box we added 16 SK6812 RGB LEDs.
  • Just one button - 18 party LEDs but just one button!
  • 1-Wire, I2C, SPI, UART, MIDI, serial LEDs supported, more to come!

Product information

  • SKU:

    41021981
  • EAN / GTIN:

    6098403367367
