Product description

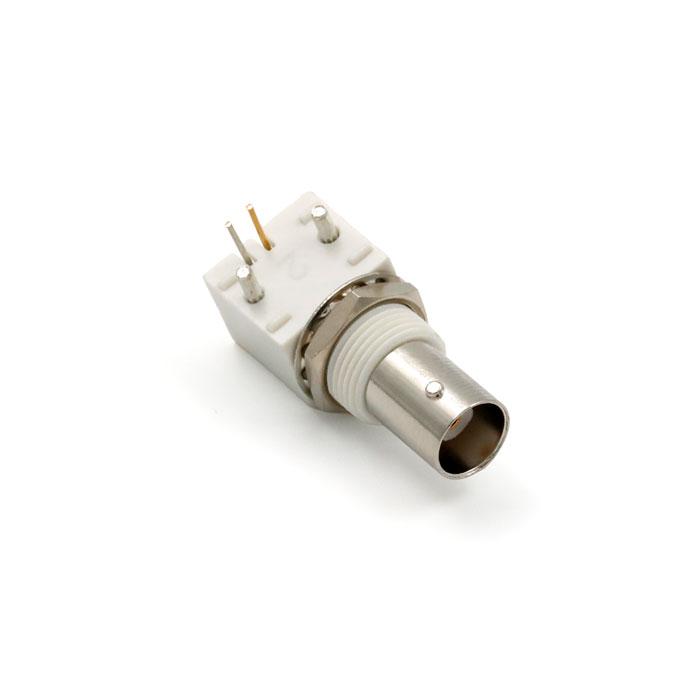

Right-angle BNC female connector for through-hole (THT) PCB mounting. The connector is designed for RF applications with a 50 ohm impedance and frequencies up to 3 GHz. The center pin is mounted through the PCB and the connector is mechanically secured with two ground pins, a nut and a washer, providing a stable mounting. Suitable for test equipment, measuring instruments, and other high-frequency electronics.
Specifications:
- Type: Right-angle BNC female
- Mounting: Through-hole (THT)
- Impedance: 50 ohm
- Frequency range: DC to 3 GHz
- Operating temperature: -55 to +155 °C
