Product description

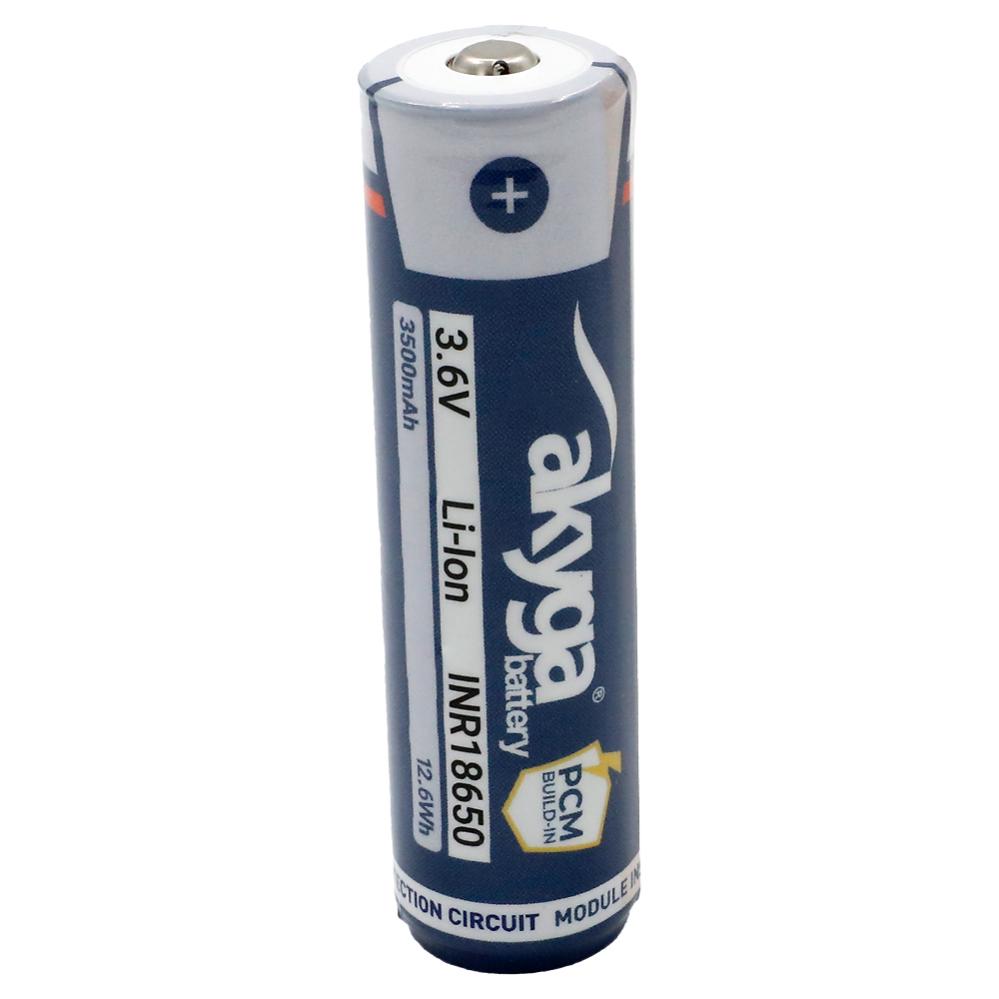

Akyga AKY2465 is an 18650 Li-Ion cell with integrated PCM (protection circuit). The cell’s PCM protects against overcharge, over-discharge, overload, and short circuit. Intended for applications such as flashlights, power banks, sensors, and remote controls. Features low self-discharge.
Specifications:
- Nominal capacity: 3500 mAh (minimum 3350 mAh)
- Nominal voltage: 3.6 V
- Maximum charge voltage: 4.2 V
- End-of-discharge voltage: 2.5 V (cutoff voltage)
- Standard charge: 0.2C - 700 mA
- Fast charge: 0.45C - 1500 mA
- Maximum discharge current: 1.5 A
- Operating temperature, charging: 0 to 45 °C
- Operating temperature, discharging: −20 to 60 °C
- Terminals: Standard battery terminals
- Battery type: Li-Ion INR18650-35M
- Model: AKY2465
- Weight: 52 g
Dimensions:
- Height: 69.5 mm
- Diameter (ø): 18.5 mm
Safety recommendations:
- Do not discharge the cell at a higher current (A) than specified.
- Do not charge the cell at a higher current (A) than specified.
- Do not short-circuit the cell.
- In battery packs, do not mix cells of different types, brands, or states of wear.
- Use the cell only within the temperature ranges specified by the manufacturer.
- Do not use damaged cells; dispose of cells with physical or functional damage via recycling.
- Do not allow contact with water or other liquids.
- Never reverse the polarity of the cell.
- Never solder directly to the cell terminals; use a battery holder.
