Product description

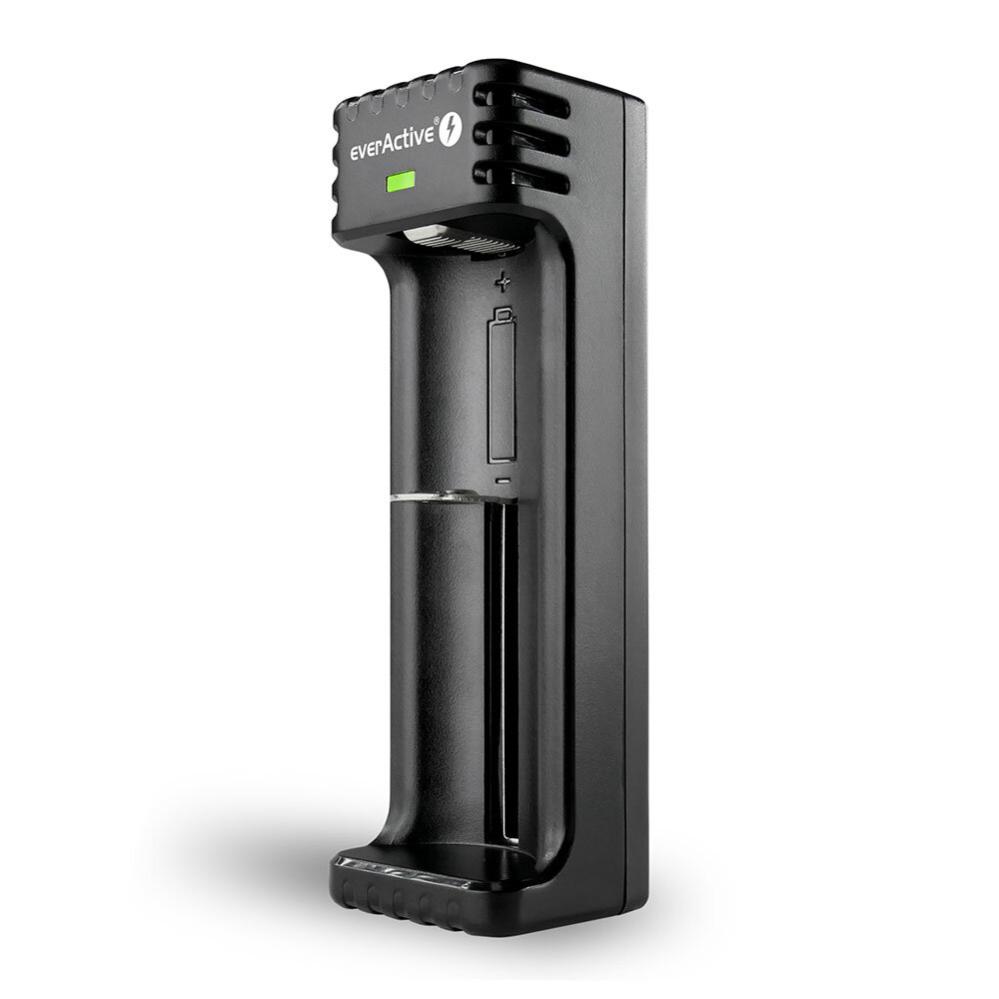

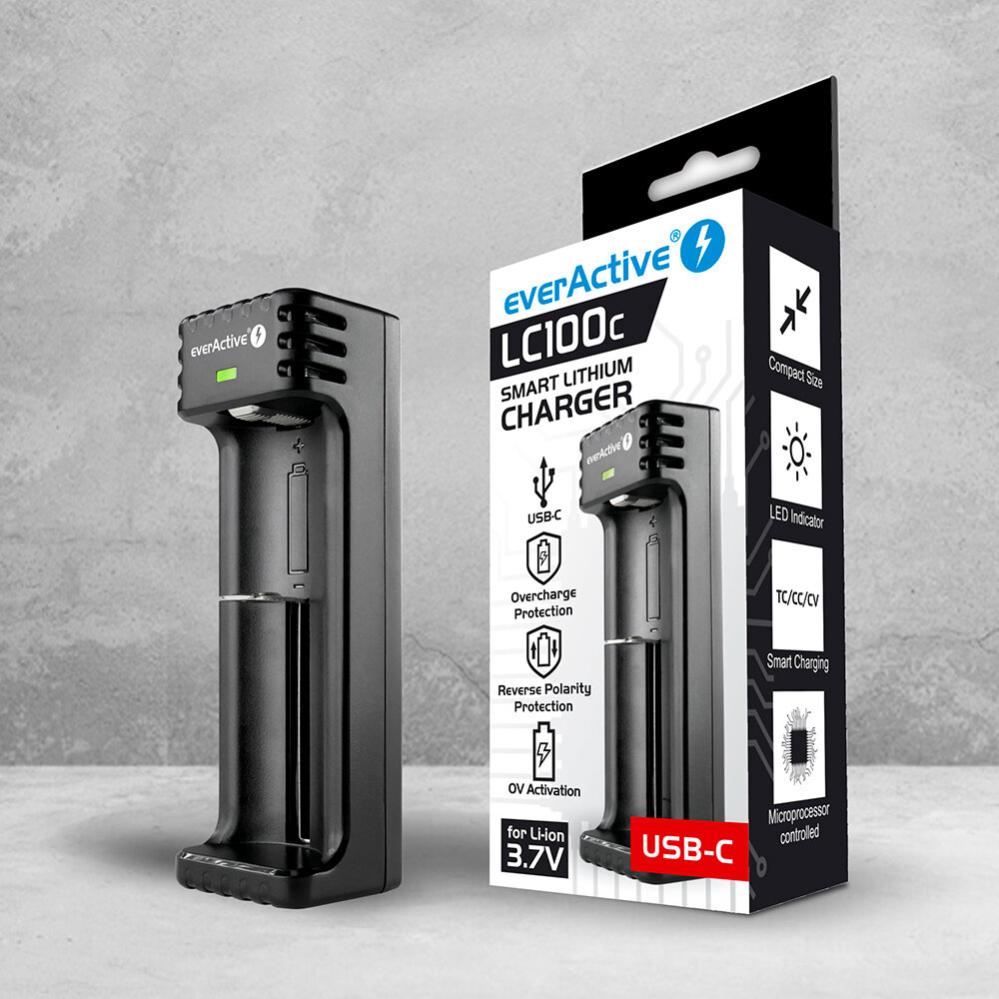

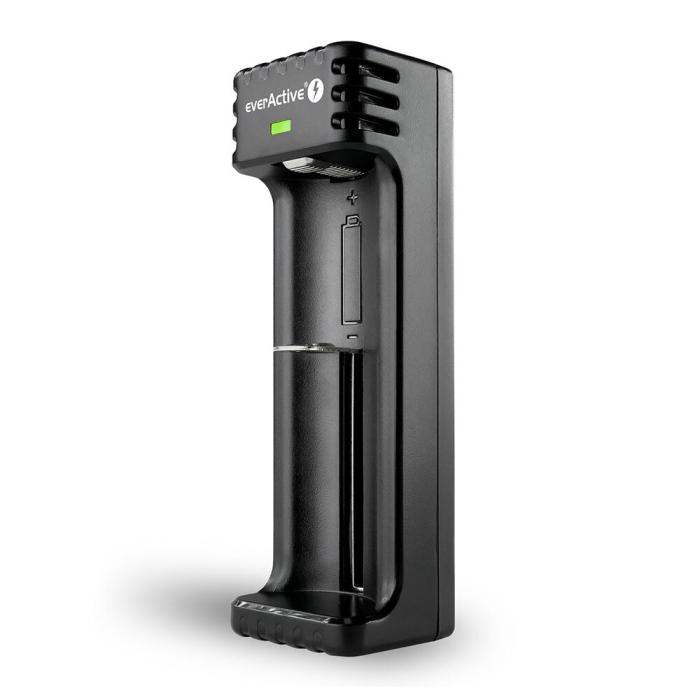

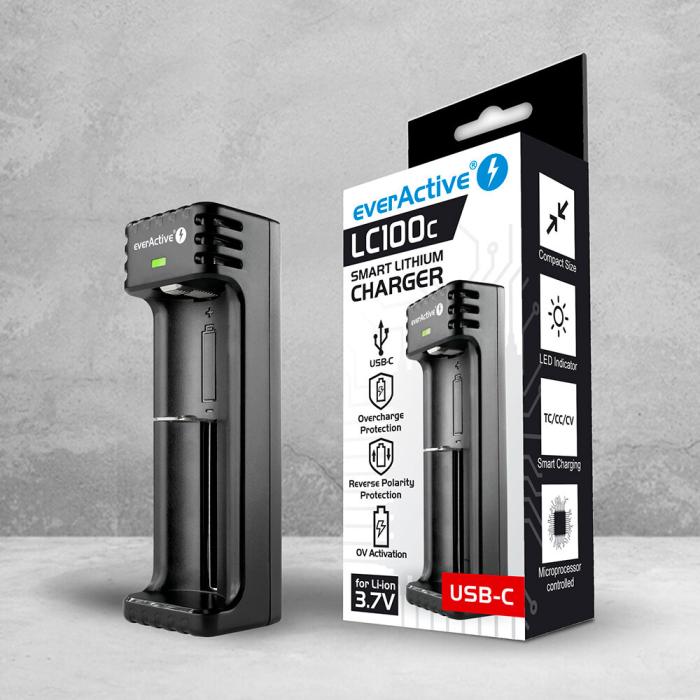

USB-C charger for one Li-ion cell in sizes from 10440 up to 26650. The charger uses microprocessor-controlled TC/CC/CV charging and features protection against short circuit, reverse polarity, overcharging, and overheating. It can also reactivate deeply discharged cells. Suitable for, among others, 18650 and 21700 cells.
The charger is very safe and designed for Li-Ion cells without a built-in protection circuit, but it also works excellently with Li-Ion cells with integrated protection circuit (PCM).

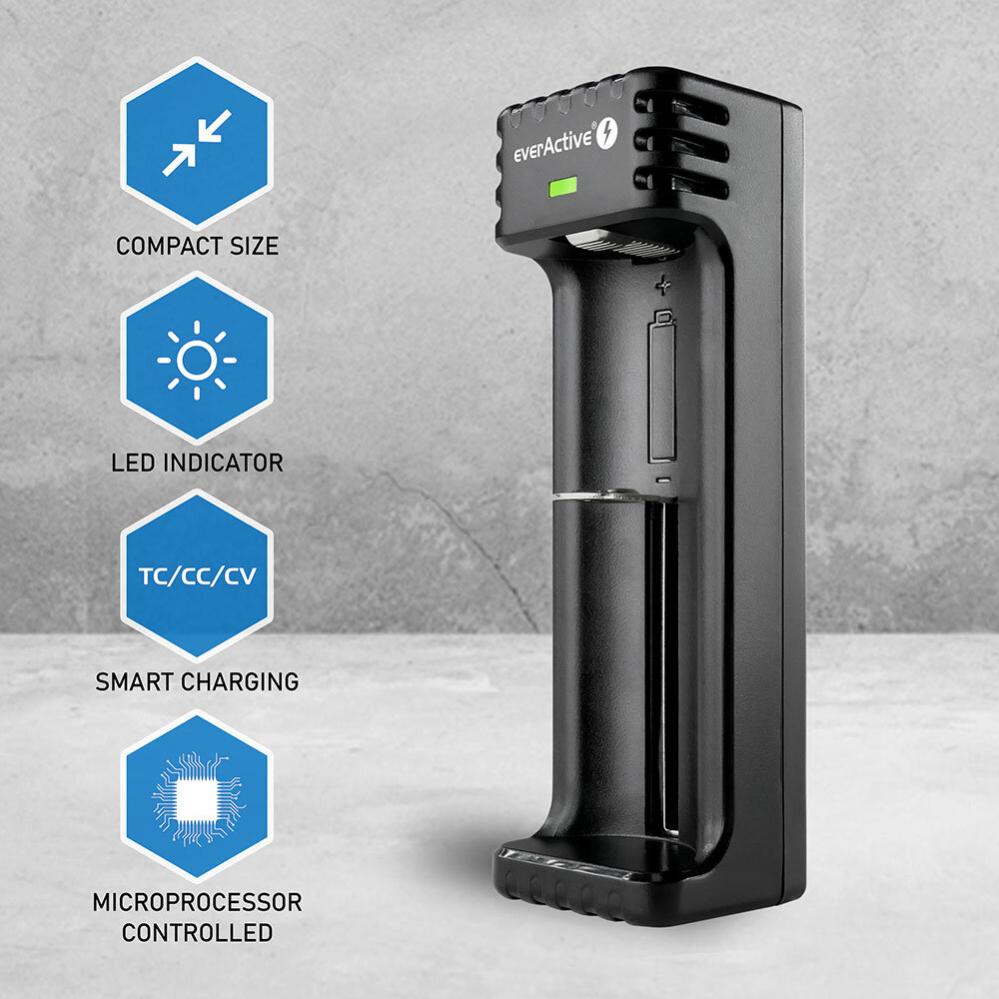

Function – 3-stage charging:
- Step 1 – Temperature-controlled charging (TC)
- Step 2 – Constant current charging (CC)
- Step 3 – Final charging with constant voltage 4.2V (CV)
Specifications:
- Type: Li-ion charger for 1 cell
- Battery types: Li-ion 3.6V / 3.7V

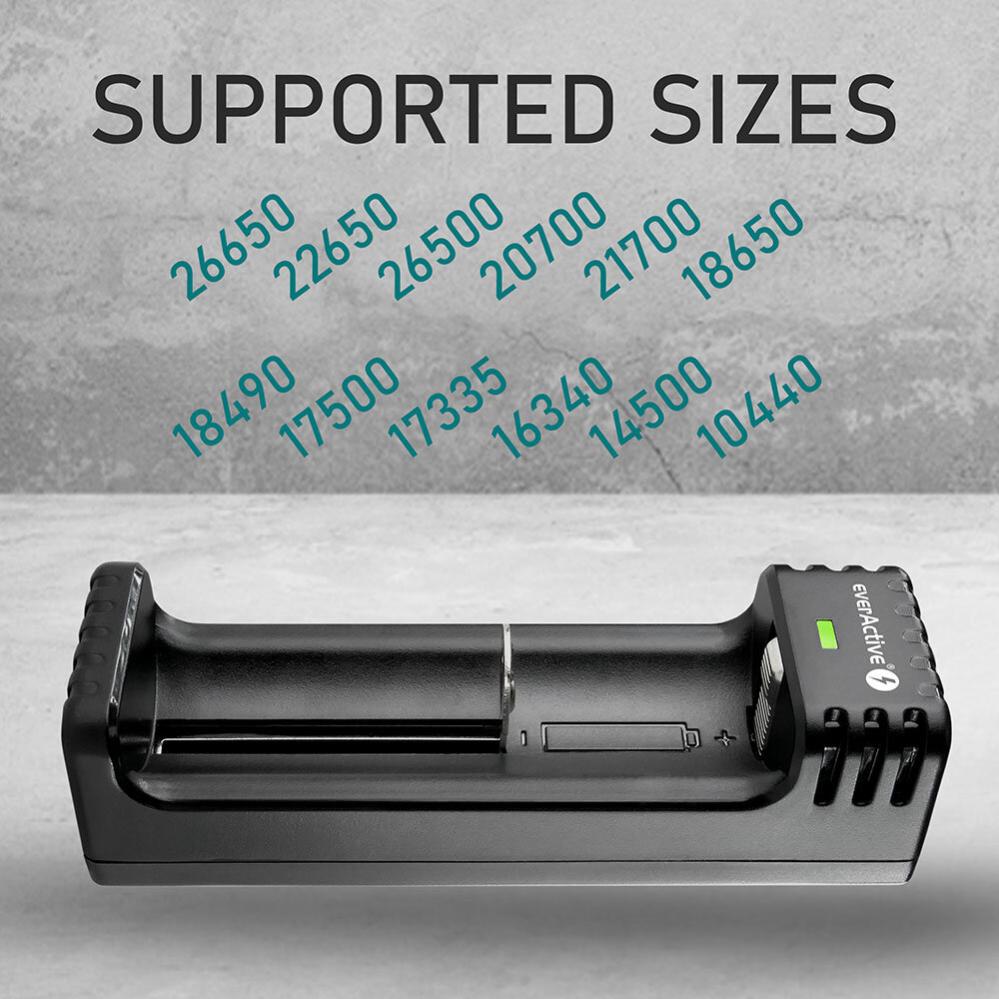

- Supported sizes: 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 20700, 21700, 22650, 25500, 26500, 26650
- Charging current: 1000mA
- Supply voltage: 5V DC / 1A

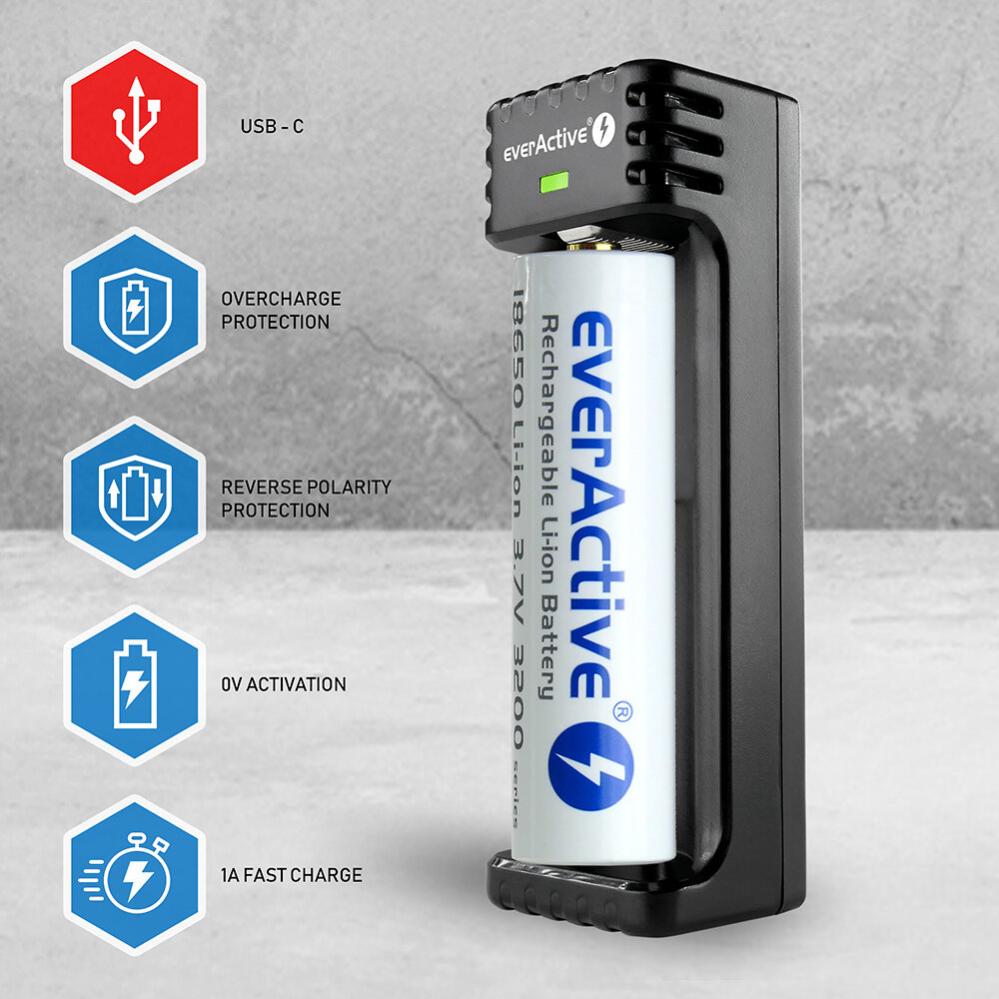

- Input connector: USB-C

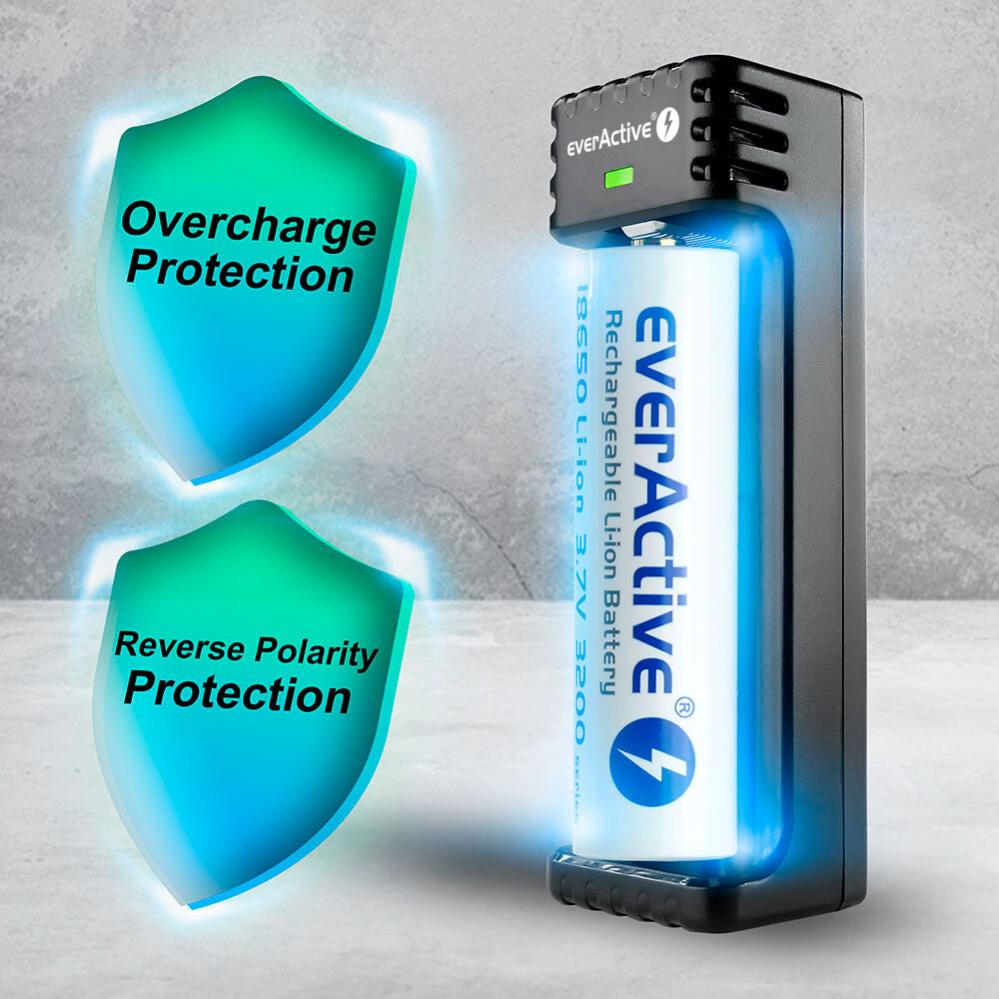

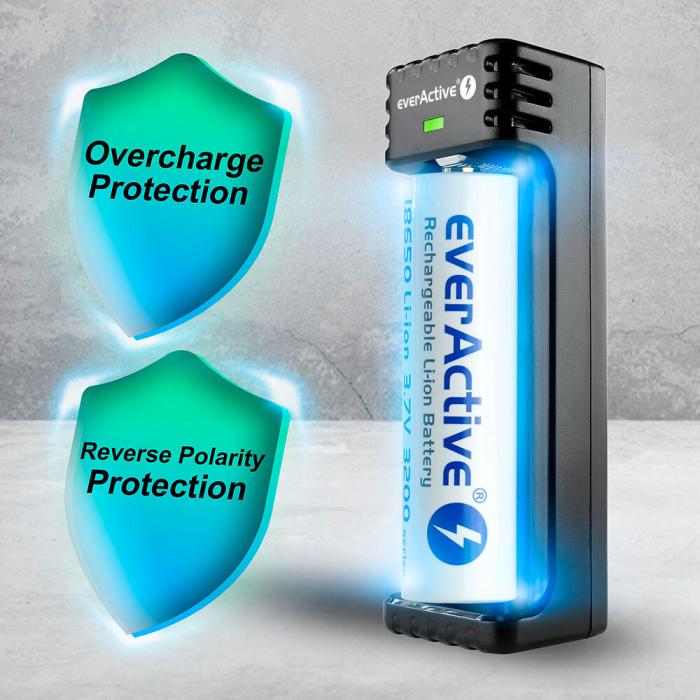

- Protection: Short circuit, overheating, reverse polarity, overcharging
- Indicator: Dual-color LED
- 0V cell reactivation: Yes
- Dimensions: 100 x 32 x 28.5mm
- Included accessories: USB-A to USB-C cable 0.5m
- Recommended power adapter/charger: USB-A 5W (not included)
