Product description

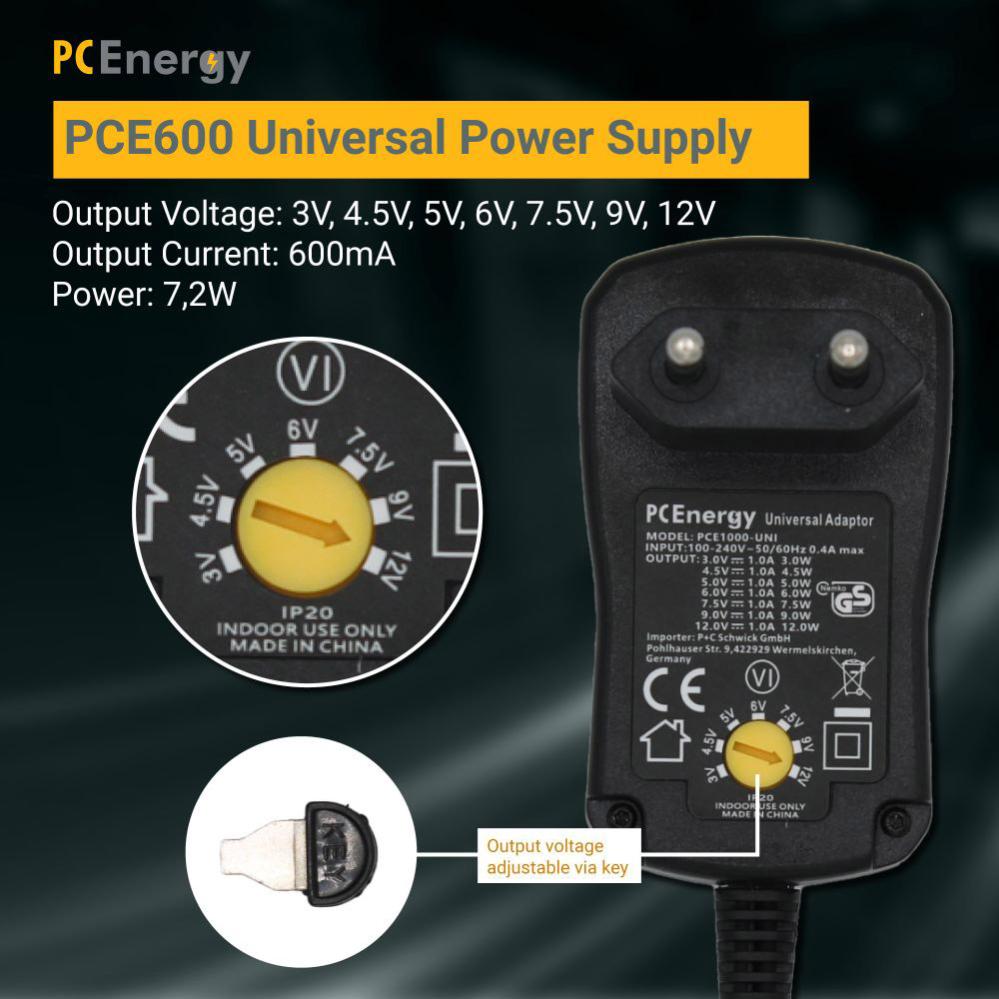

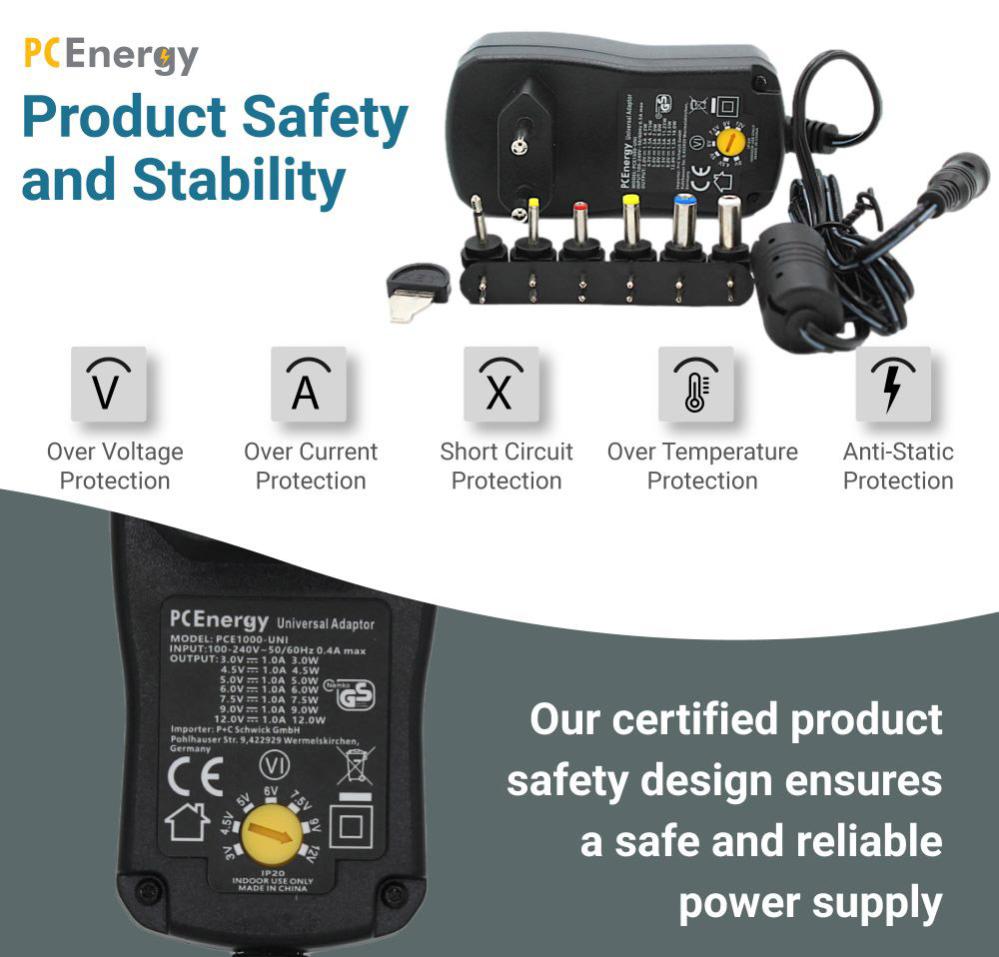

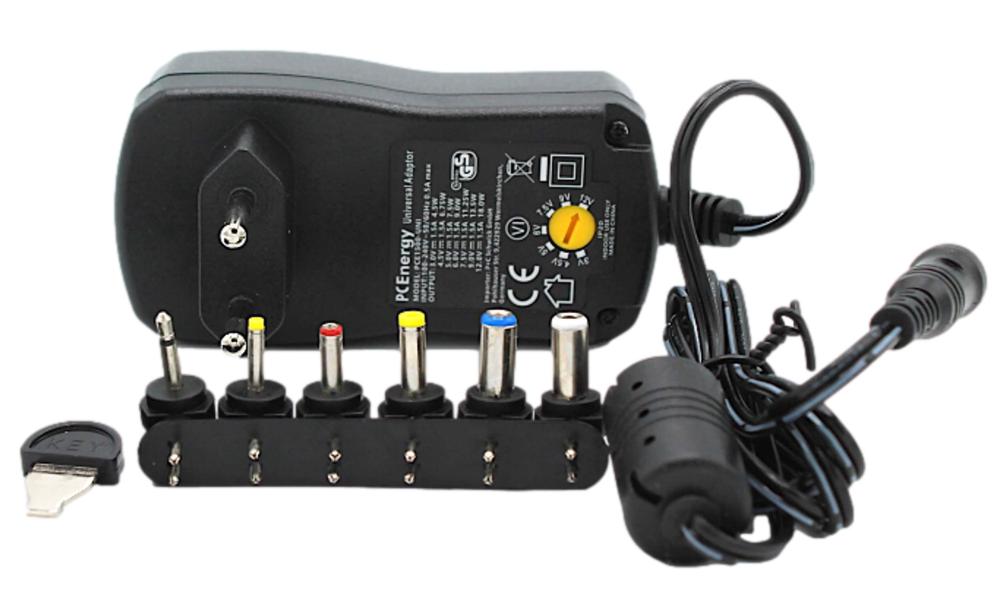

Universal adjustable power adapter 7.2W. Adjustable in 7 steps between 3 and 12 VDC. Replaces an old broken or lost power adapter. Supplied with 6 DC adapter plugs for broad compatibility. The output is protected against short circuit and overcurrent.

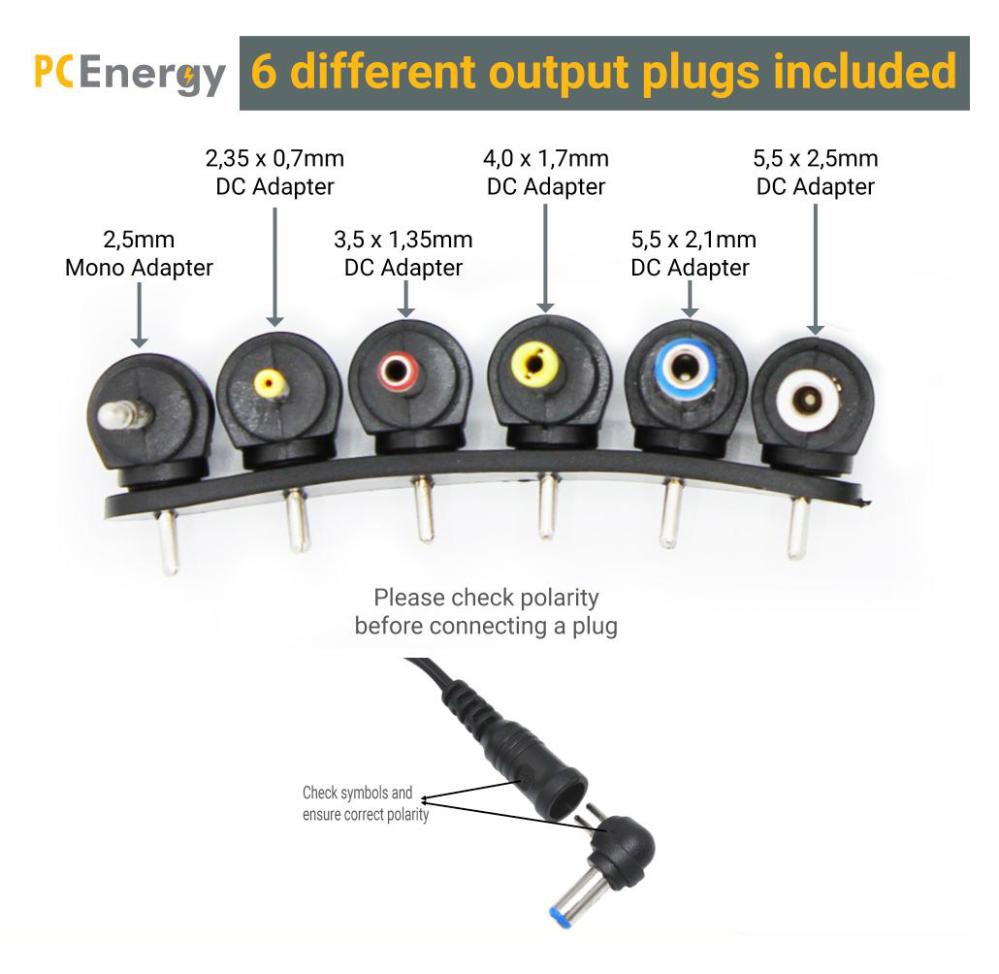

Included connectors/plugs: 2.5, 2.35x0.7, 3.5x1.35, 4.0x1.7, 5.5x2.1, 5.5x2.5 mm.
Specifications:
- Input: 100-240 VAC
- Cable length: 1.5m
- Dimensions: 75.5 x 43.3 x 35.8 mm
- Safety / environment: CE, GS, RoHS/REACH
- Complies with standards: EN62368-; EN60950; EN 61558; EN 55032; EN55035; EN 61000-3-2; EN 61000-3-3
Output - voltage/current/power (max):
- 3.0 V / 600 mA / 1.8W
- 4.5 V / 600 mA / 2.7W
- 5.0 V / 600 mA / 3.0W
- 6.0 V / 600 mA / 3.6W
- 7.5 V / 600 mA / 4.5W
- 9.0 V / 600 mA / 5.4W
- 12.0 V / 600 mA / 7.2W
