Product description

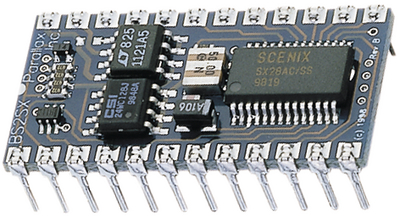

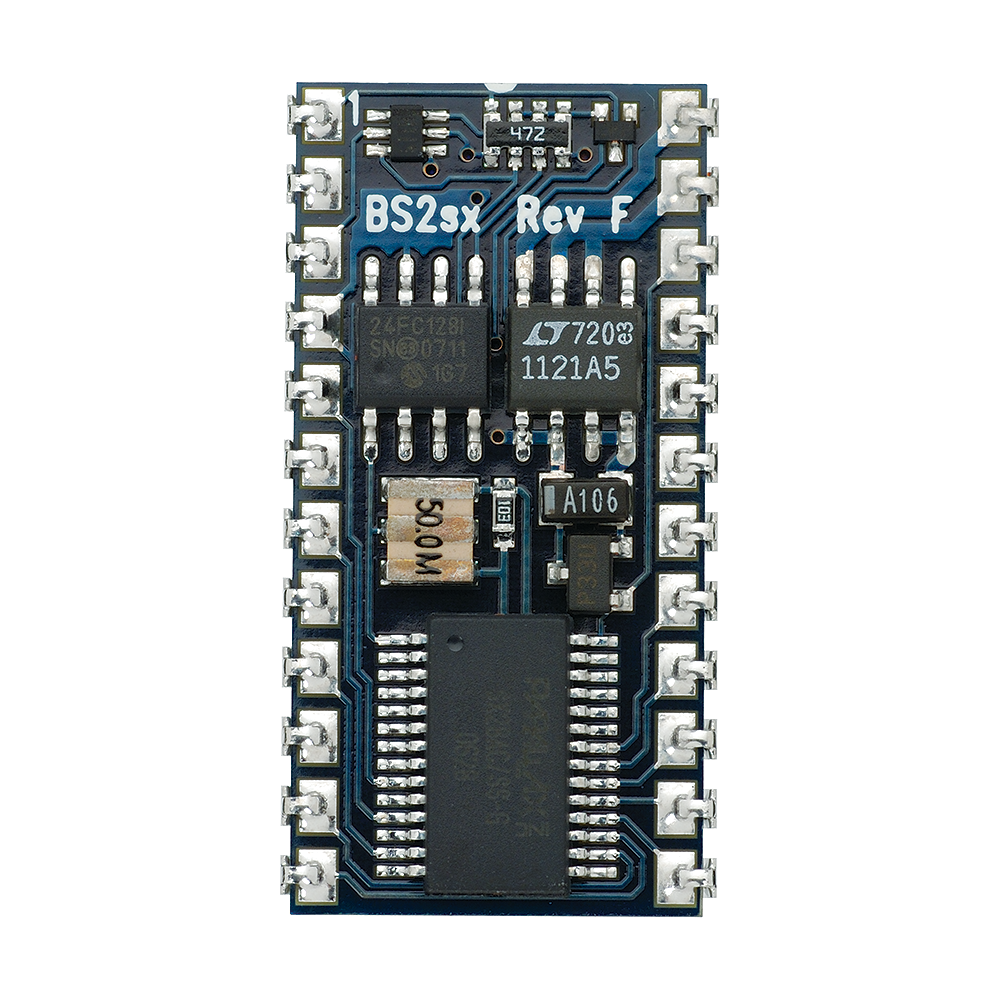

Microcontroller in DIP-24 package. Based on Ubicom SX28AC. The stamp is programmed via PC and is transferred serially. Inputs and outputs can be connected to switches, potentiometers, sensors, LEDs, summers and external logic. With external drive circutry relays and motors can also be controlled.
* Processor Speed: 50 MHz; ~10,000 PBASIC instructions/sec
* PBASIC Commands: 45
* Package: 24-pin DIP
* I/O pins: 16 + 2 dedicated serial
* RAM Size: 32 Bytes (6 I/O, 26 Variable)
* Scratch Pad RAM: 64 bytes
* EEPROM (Program) Size: 8 x 2 KBytes; ~4,000 PBASIC instructions
* Voltage requirements: 5.5 to 12 VDC (Vin), or 5 VDC (Vdd)
* Current requirements: 60 mA Run, 500 µA Sleep
* Source/Sink Current per I/O: 30 mA / 30 mA
* Source/Sink Current per unit: 60 mA / 60 mA per 8 I/O pins
* Communication: Serial (9600 baud for programming)
* Dimensions: 1.20 x 0.63 x 0.15 in (30.0 x 16.0 x 3.81 mm)
* Operating temp range: -40 to +185 °F (-40 to +85 °C)
