Product description

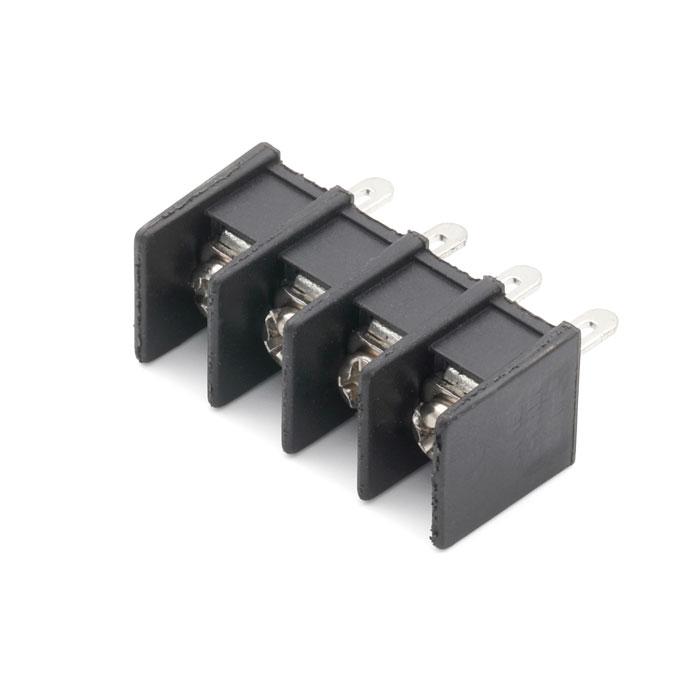

Terminal block for chassis mounting. With screw connections. Barriers between the poles prevent short circuits.
Specifications:
- Number of poles: 4
- Wire size: 0.25–2.5 mm² (AWG 22–14)
- Rated voltage: 300 VAC
- Rated current: 15 A
- Connection: Screw (M3)
- Pitch: 7.62 mm
- Chassis mounting holes: Ø3.15 mm
- Operating temperature: -40 to +105 °C
- Material: PA66 (polyamide 66)
- Flammability rating: UL94 V-0
