Barrier Terminal block 2-pole 0.25-2.5mm² @ electrokit
Barrier Terminal block 2-pole 0.25-2.5mm² @ electrokit
Barrier Terminal block 2-pole 0.25-2.5mm² @ electrokit

Barrier Terminal block 2-pole 0.25-2.5mm²

Art no: 41037577
Max - MX25MH-7.62-02P
6.90 SEK
Including 25% VAT

Mängdrabatt:
2pcs = 13:80 10pcs = 62:- 25pcs = 128:75

QuantityPrice
2 9
6.90 SEK
10 24
6.20 SEK
25
5.15 SEK
In stock, 99 pcs. Leveranstid ca 1-3 vardagar
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

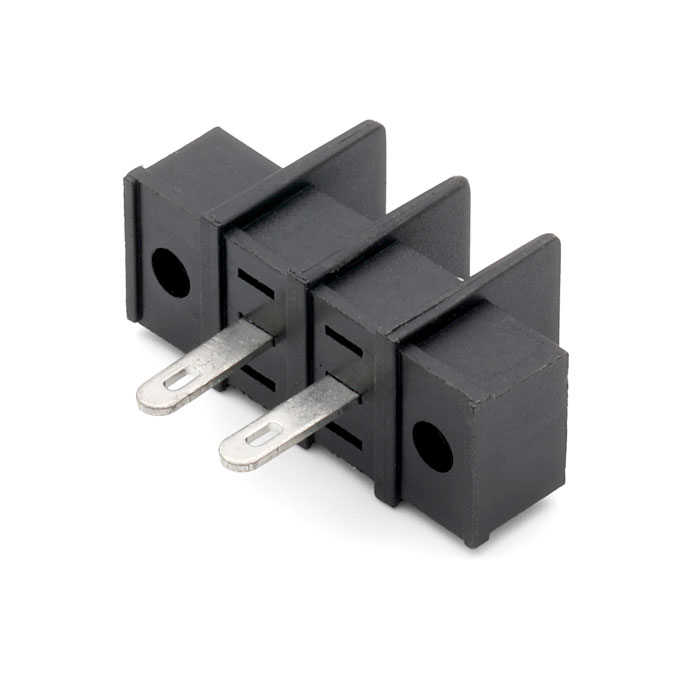

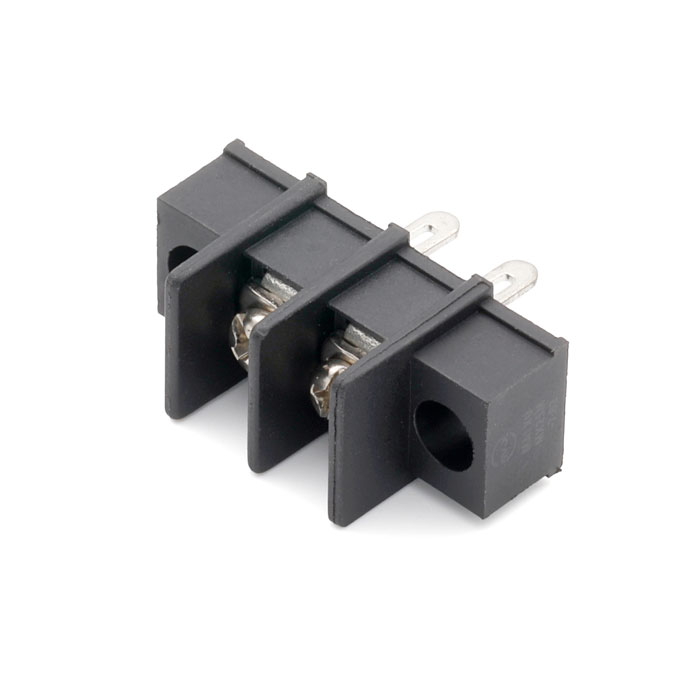

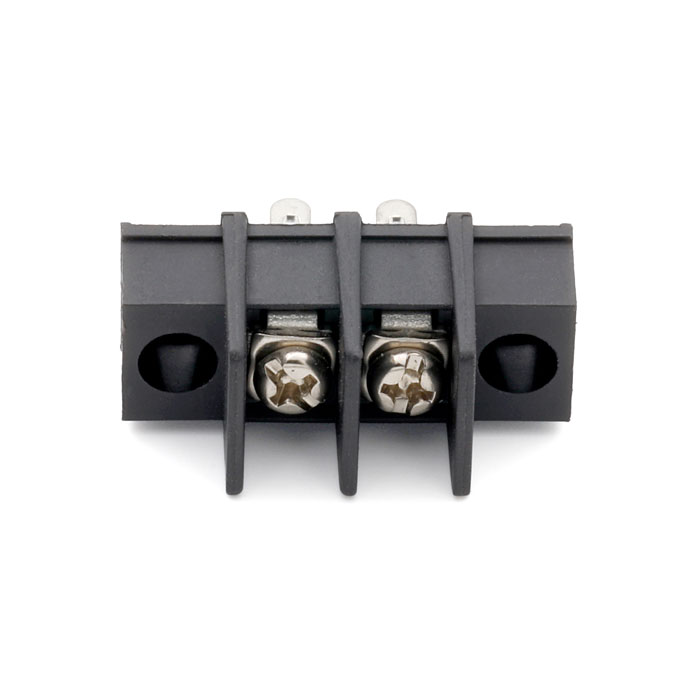

Terminal block for chassis mounting. With screw connections. Barriers between the poles prevent short circuits.

Specifications:

  • Number of poles: 2
  • Wire size: 0.25–2.5 mm² (AWG 22–14)
  • Rated voltage: 300 VAC
  • Rated current: 15 A
  • Connection: Screw (M3)
  • Pitch: 7.62 mm
  • Chassis mounting holes: Ø3.15 mm
  • Operating temperature: -40 to +105 °C
  • Material: PA66 (polyamide 66)
  • Flammability rating: UL94 V-0

Product information

  • SKU:

    41037577

  • MPN:

    Max - MX25MH-7.62-02P

  • HS / TARIC:

    8536901000
