Product description

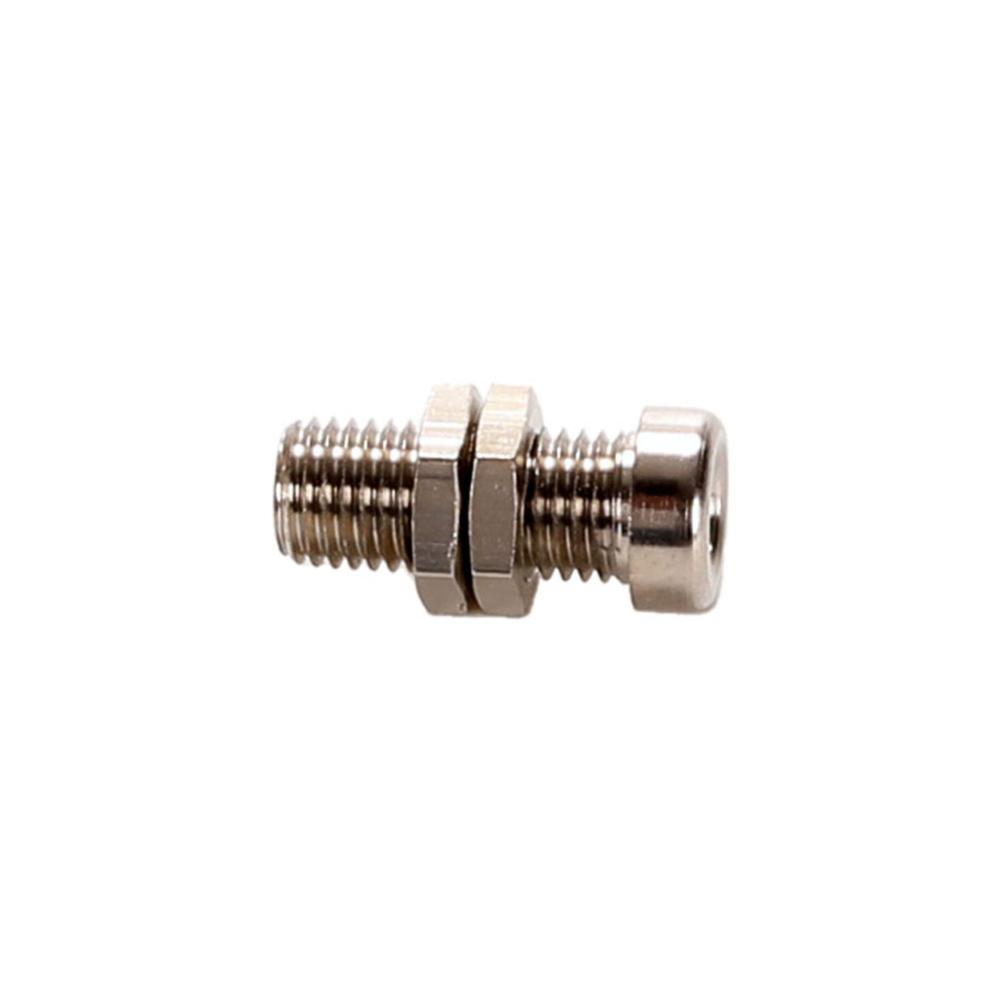

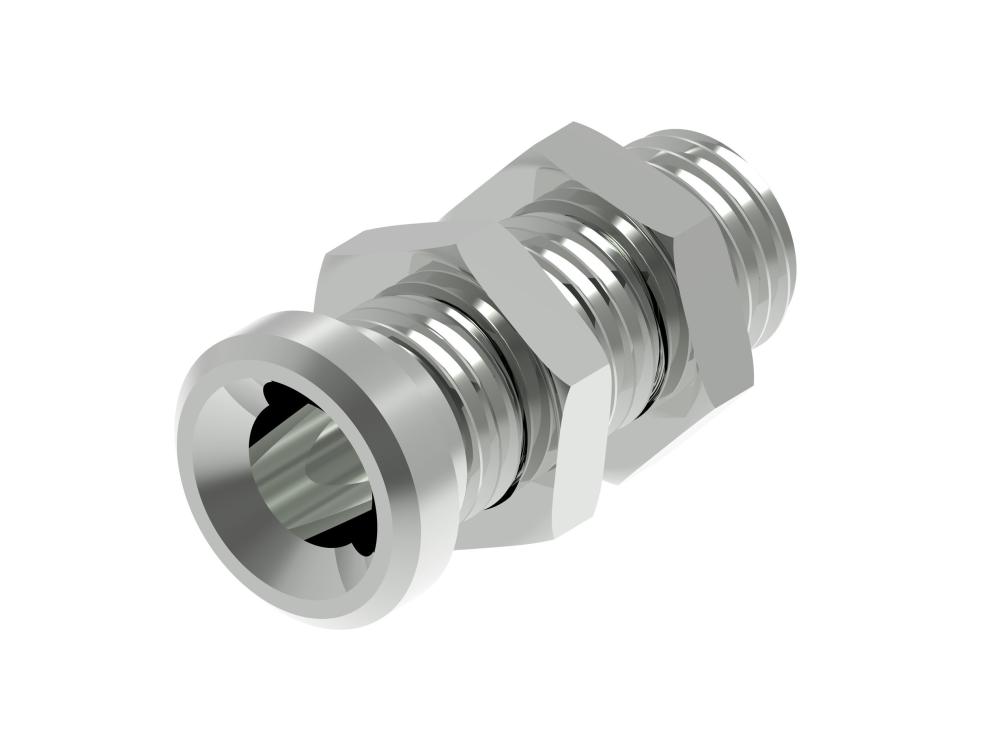

4mm banana jack for panel mounting. Uninsolated, all metal. Nickel plated brass. M6 thread with two counter nuts. For use with ring terminals (not included) or PCB with through plated 6mm holes. It's also possible to solder wires directly to the connector with higher-power soldering stations.
Made in France.
- Max voltage: 30VAC / 30 VDC
- Max current: 36A

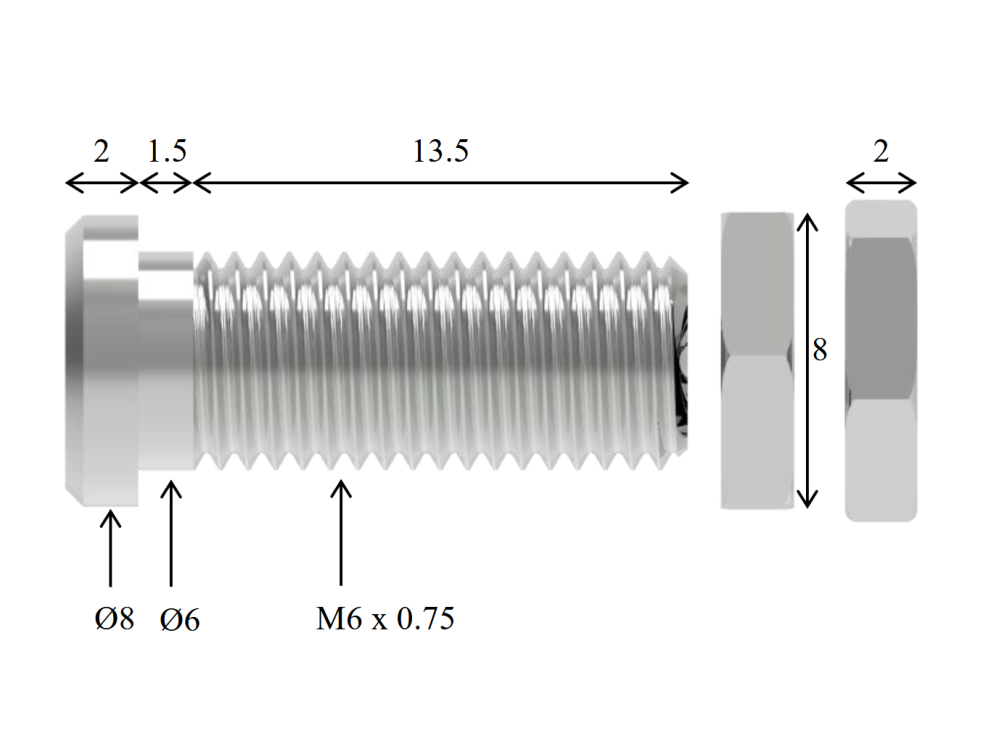

- Outer diameter (in front of panel): 8mm
- Inner diameter: 4mm
- Diameter (thread) 5.9mm (M6)
- Length (thread): 13.5mm
- Length (total): 17mm
