Product description

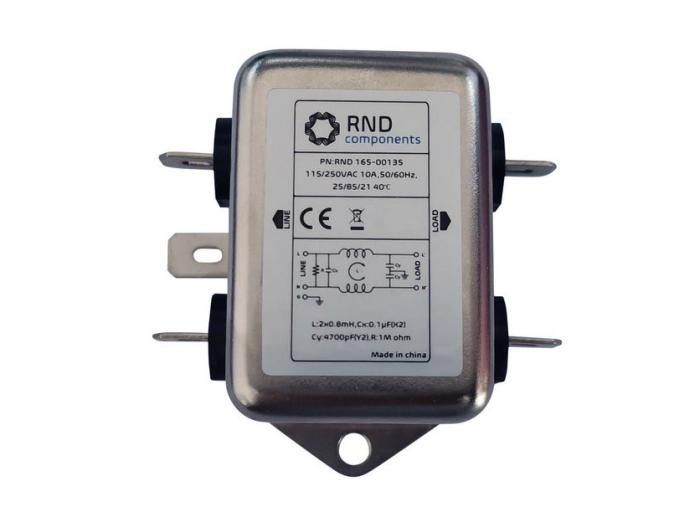

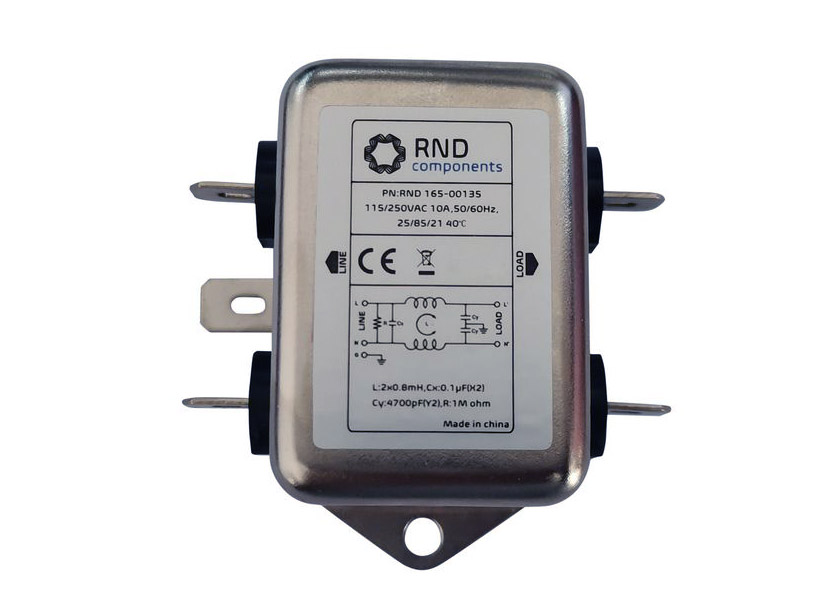

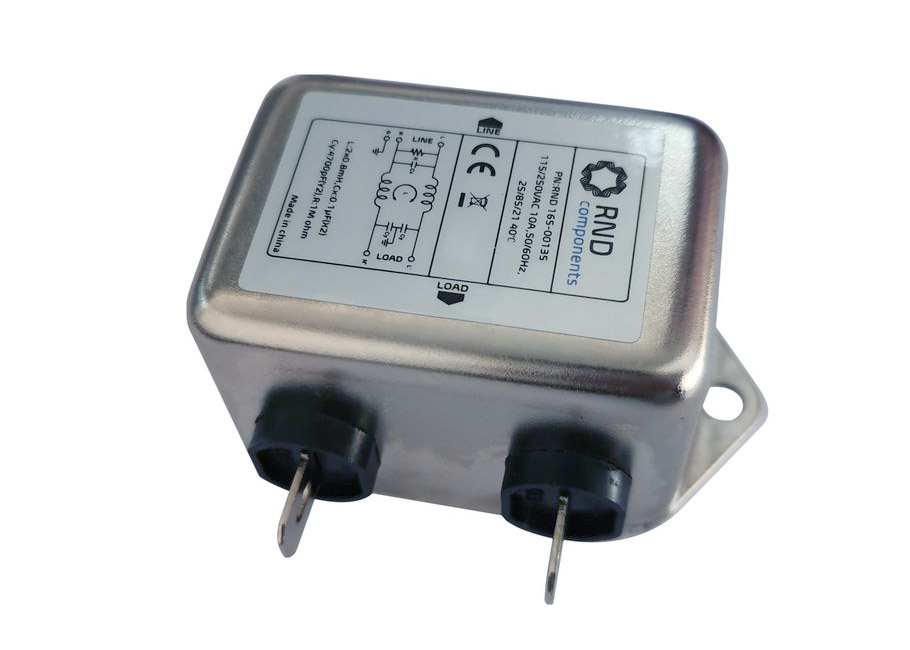

Compact and easy-to-install EMI filter for 250 VAC / 10 A. Suppresses electromagnetic interference in applications such as power supplies, UPS systems, and industrial control equipment.
Specifications:
- Rated current: 10 A RMS
- Rated voltage: 250 VAC

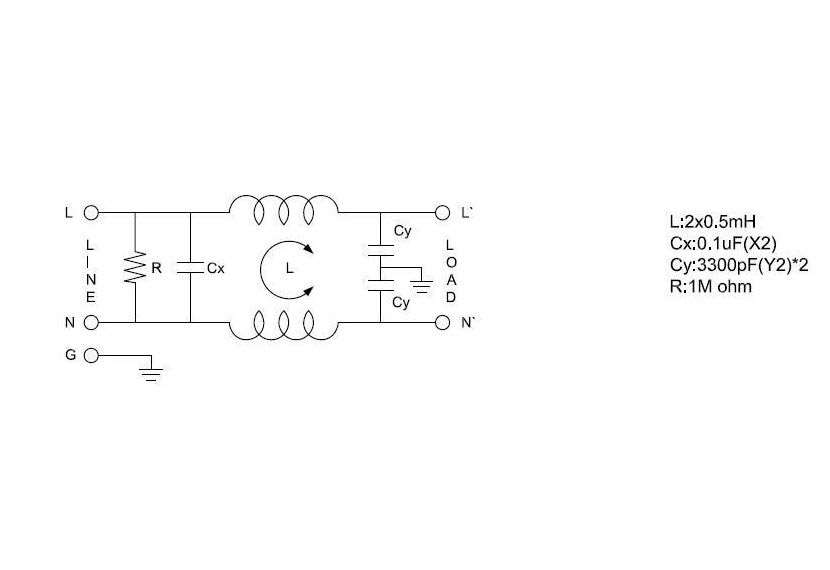

- Inductance: 500 µH
- Frequency range: 50/60 Hz
- Leakage current: 0.4 mA @ 115 VAC / 0.8 mA @ 250 VAC
- Test voltage: 2250 VDC (L–PE), 500 VDC (L–L)
- Insulation resistance: 50 MΩ @ 500 VDC
- Operating temperature: –25 °C to +85 °C
- Connection: 6.3 mm quick-connect terminals (Faston)
- Mounting: Chassis
- Dimensions: approx. 65 × 55 × 30 mm
- Weight: 83 g
