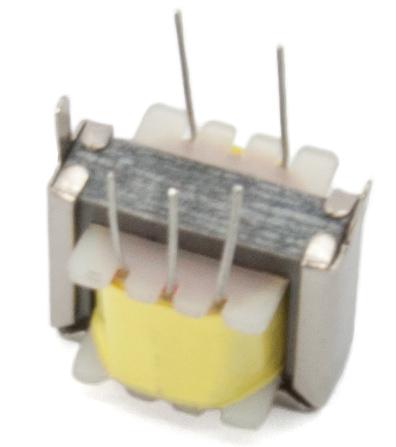

Audio transformer 10/1 kohm

Audio transformer with dual secondary windings.

* Primary winding: 2500 turns (0.06mm)
* Secondary winding: 400 x 2 turns (0.08mm)
* Primary impedance (1kHz): 10000ohms
* Secondary impedance (1kHz): 1000ohms
* Primary DC-resistance: 480ohms
* Secondary DC-resistance: 125ohms
* Primary inductance (1kHz): 6.4H
* Secondary inductance (1kHz): 675mH
* Ratio: 10:1
