Product description

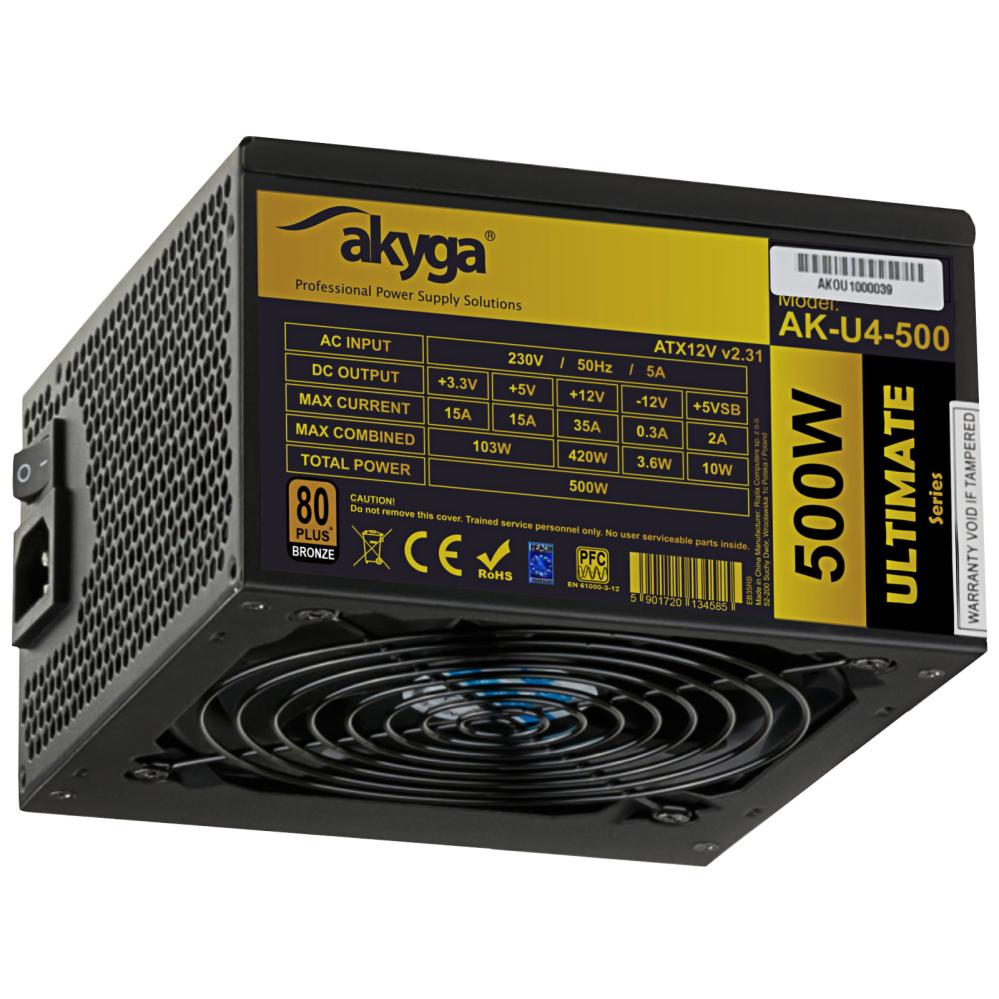

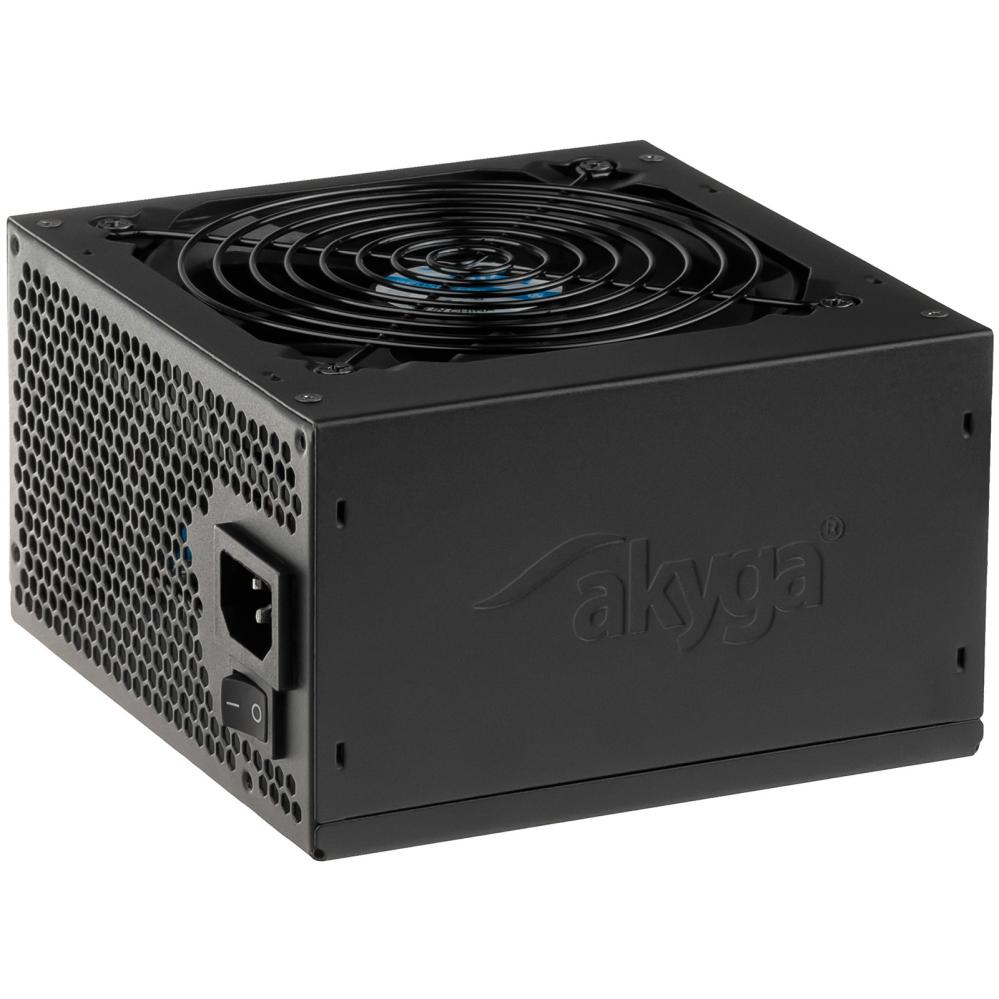

ATX power supply rated at 500 W from the Akyga Ultimate series, compatible with the ATX 2.31 standard. The power supply features 80 Plus Bronze certification and an efficiency above 80%, contributing to energy-efficient operation and reduced heat generation. The design is optimized for stable power delivery in systems with higher demands.

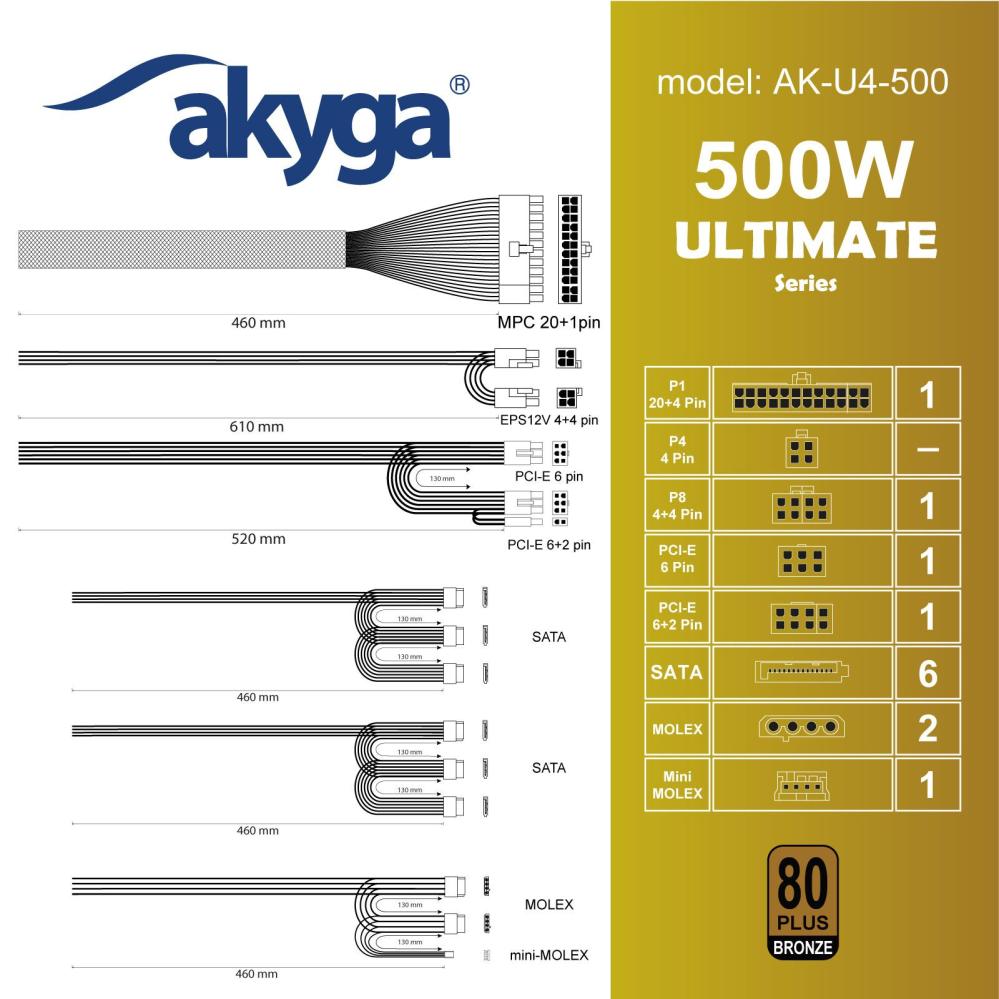

Connections: 24-pin motherboard connector, EPS 4+4-pin for CPU, and PCIe 6-pin and 6+2-pin for graphics cards. A total of six SATA connectors, two Molex, and one mini-Molex enable connection of multiple storage devices and peripherals. The built-in temperature-controlled 120 mm fan ensures efficient cooling during operation. The mechanical power switch allows shutdown without disconnecting the mains cable.
For increased operational reliability, the power supply includes multiple protection features such as overvoltage protection, overcurrent protection, overpower protection, undervoltage protection, overtemperature protection, and short circuit protection. Active PFC contributes to stable operation and reduced impact on the power grid. A mains cable is included in the package.
Specifications:
- Model: AK-U4-500
- Power: 500 W
- Form factor: ATX 2.31
- Series: Ultimate
- Supply voltage: 230 V
- Efficiency: > 80%
- Certification: 80 Plus Bronze
- +3.3 V: 15 A
- +5 V: 15 A
- +12 V: 35 A
- Max load +12 V: 420 W
- Max load +3.3 V +5 V: 103 W
- Motherboard connector: 24-pin
- CPU connector: 4+4-pin EPS
- PCIe connectors: 6-pin, 6+2-pin
- SATA connectors: 6 pcs
- Molex connectors: 2 pcs
- Mini-Molex: 1 pc
- Modular: No
- PFC: Active
- Cooling: 120 mm fan, temperature controlled
- Power switch: Yes
- Protection: OVP, OCP, OPP, OTP, SCP, UVP
- Power input: IEC C14, 1 m mains cable included
- DC cable length: 45–75 cm
- Product dimensions: 140 x 150 x 85 mm
- Weight (net): 1.26 kg
- Certifications: CE, RoHS, REACH
- Warranty: 36 months
