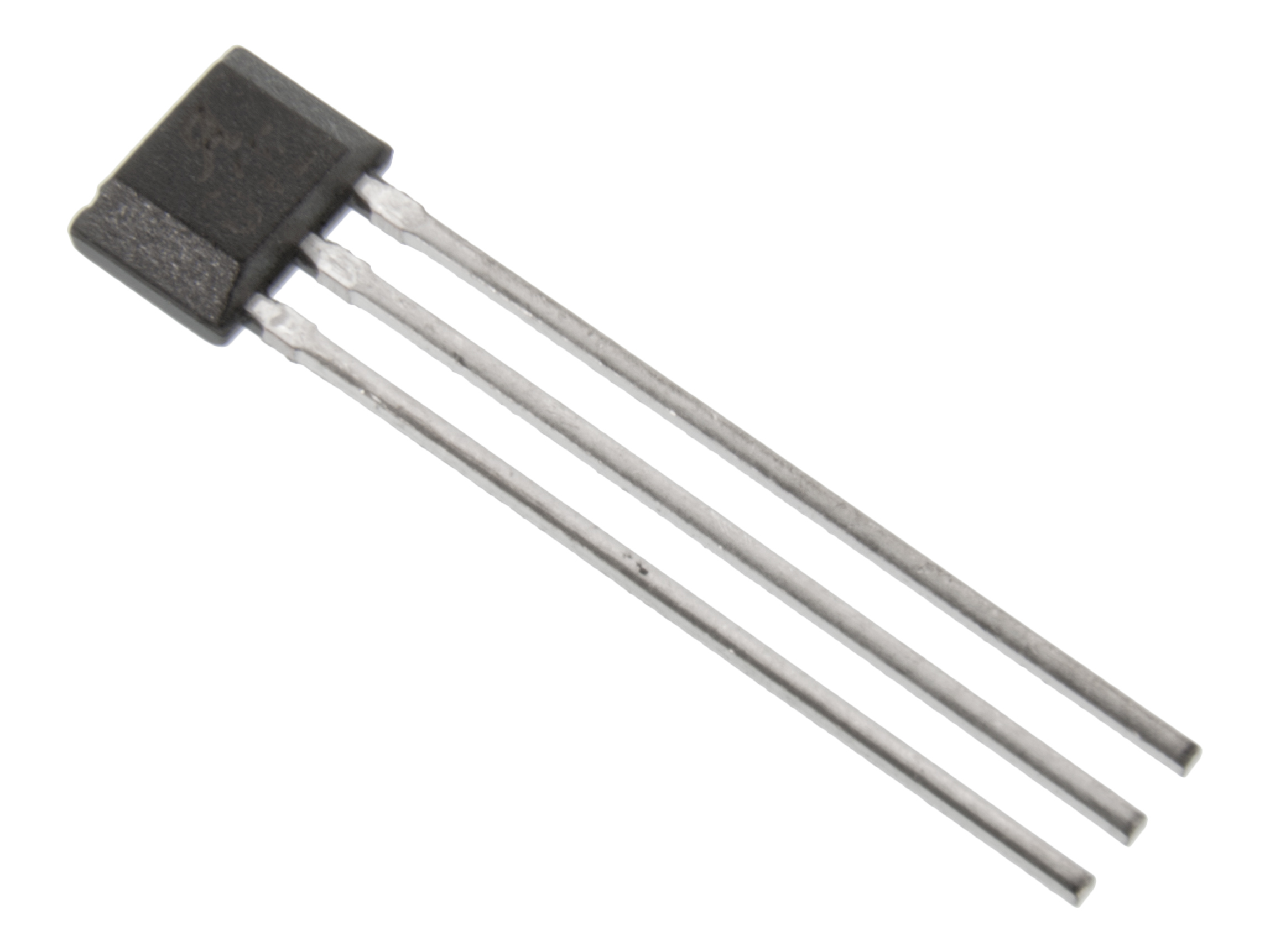

Allegro A1302 SIP-3 Hall-effect sensor 1.3mV/G

Ratiometric hall-effect sensor in through-hole SIP-3 package. The sensor detects magnetism and outputs a linear voltage between 0V and VDD, centered around VDD/2. Excellent for highly accurate positioning for short distances.

* Supply voltage: 4.5 - 6VDC
* Output current: 10mA
* Bandwidth: 20kHz
* Sensitivity: 1.3mV/G
* Manufacturer: Allegro Microsystems
* Model: A1302KUA-T
* Pinout: 1 = VCC, 2 = GND, 3 = VOUT
