Product description

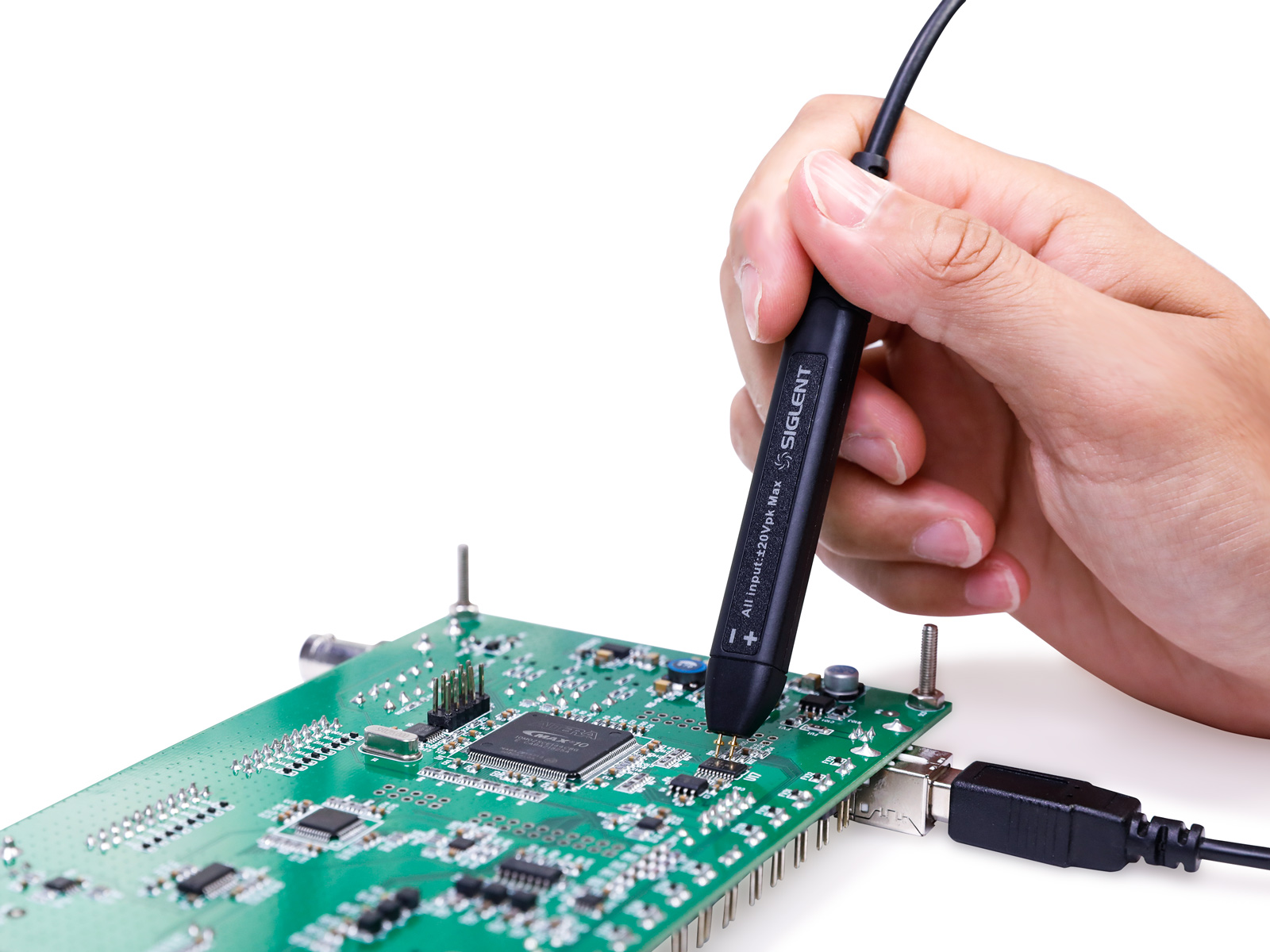

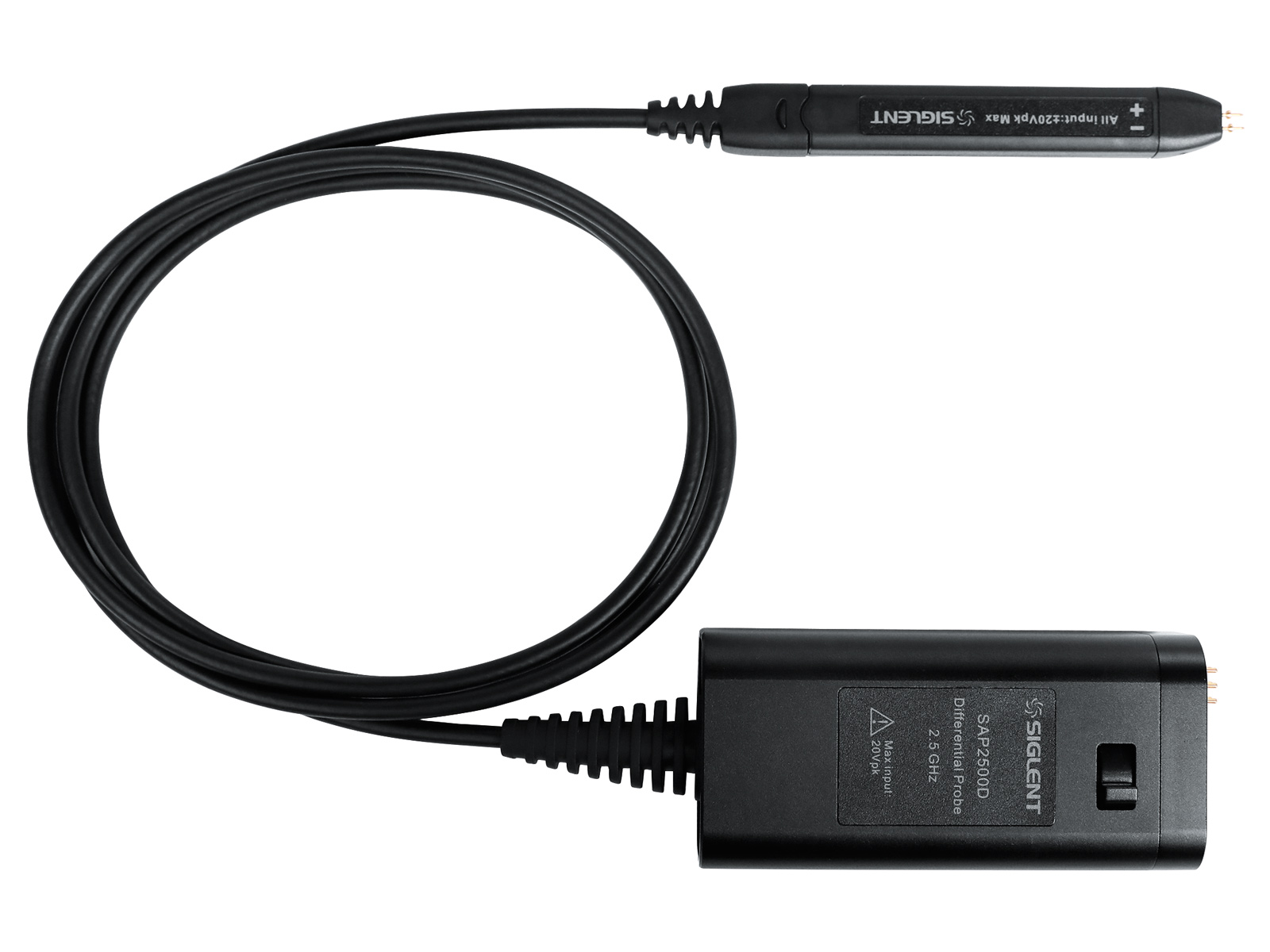

Active probe for SDS5000X and SDS6000A series oscilloscopes. The probe will provide much improved measurements at high frequencies and reduce loading of the DUT. This version has differential inputs for measuring non ground referenced signals.
* Bandwidth: 2.5GHz
* Offset range: ±12V
* Dynamic range: ±8V
* Dynamic range differential: ±4V
* Impedance: 200k (differential), 100k (single-ended), 50k (common mode)
* CMRR: >40dB @ 100MHz / >25dB @2.5GHz
* Capacitance: 1pF
* Maximum voltage: 20V
* Inteface: SAPBus
* Cable length: 1.3m
* Dimensions: 83 x 14.1 x 6.4mm
