Product description

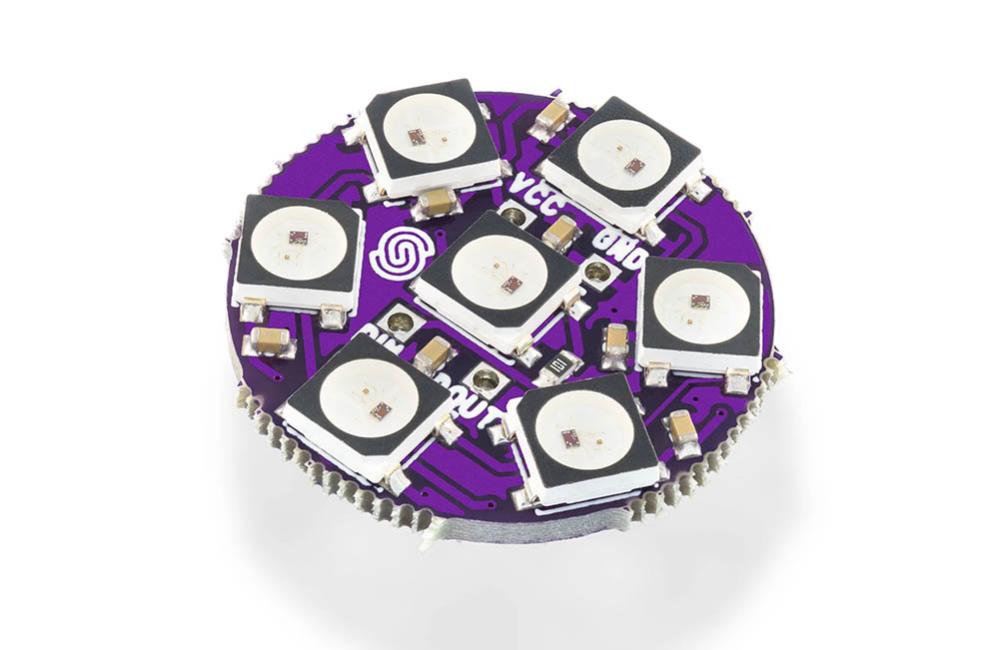

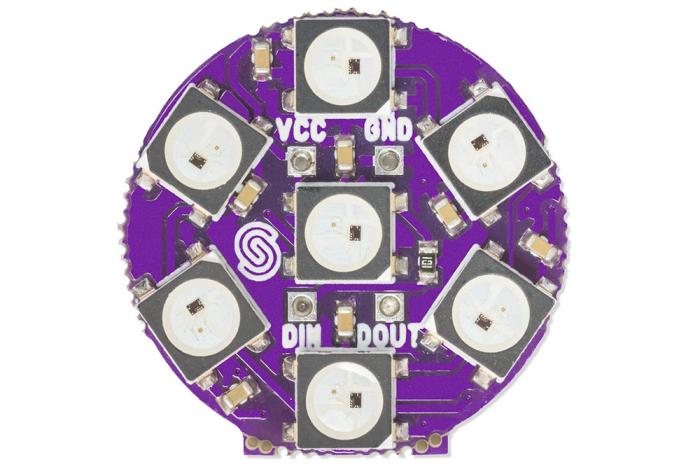

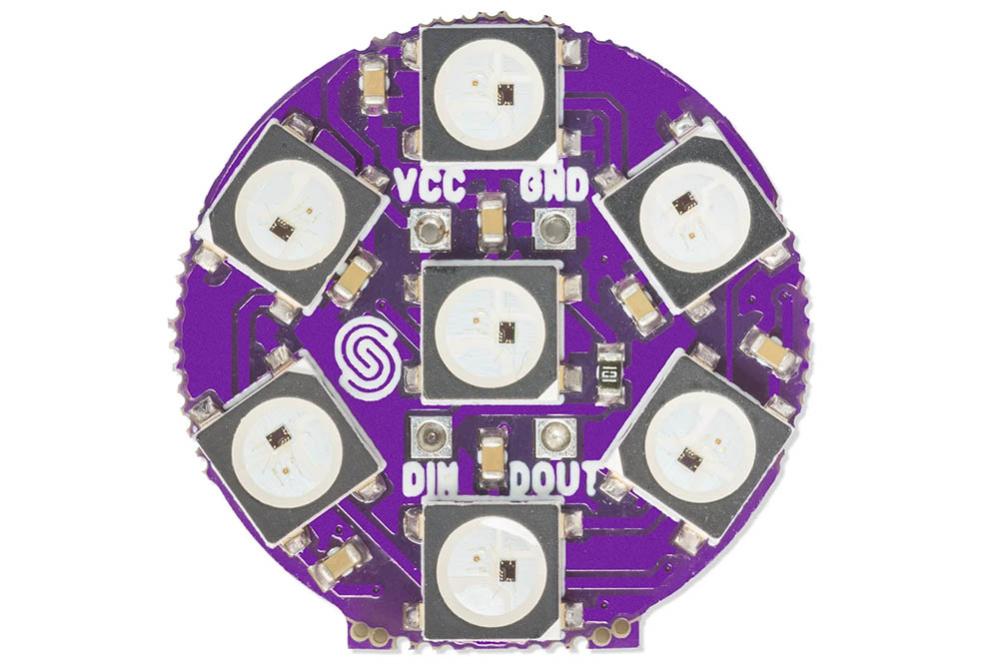

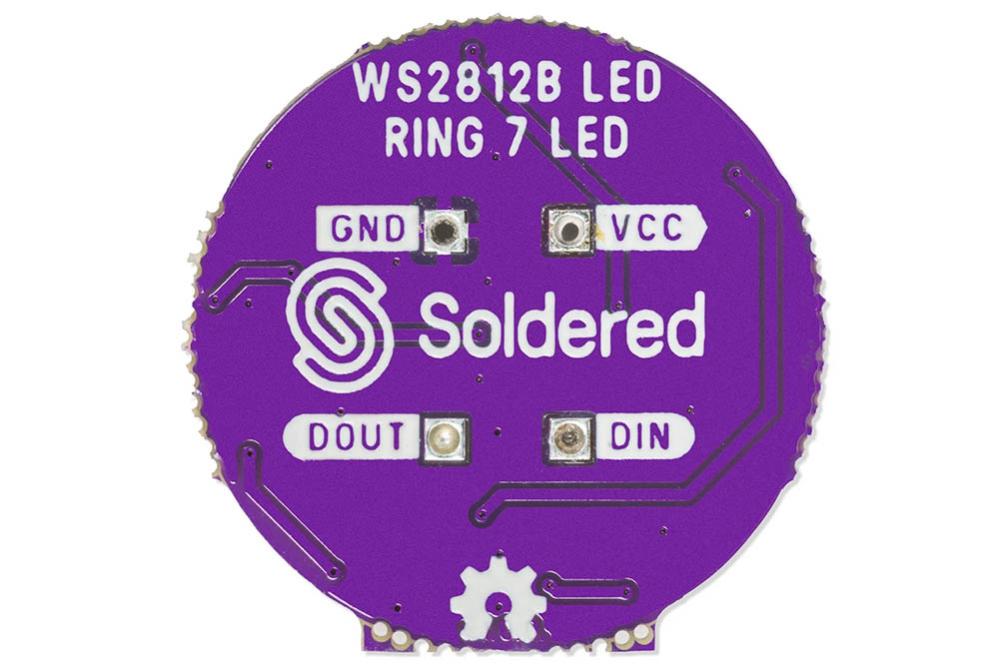

Addressable RGB LED ring featuring individually addressable WS2812B RGB LEDs. Each LED has an integrated driver IC, allowing its color and brightness to be controlled independently through a single data line. The LED ring can display approximately 16 million colors and is suitable for decorative lighting, lighting effects, wearables, information displays, and interactive projects. It is compatible with Arduino and ESP32 and can be easily programmed using available libraries.
Specifications:
- NeoPixel compatible: Yes
- LED type: WS2812B
- Number of LEDs: 7
- Colors: RGB
- Number of possible colors: Approx. 16 million
- Communication: Single-wire data interface
- Supply voltage: 5 V
- Current consumption: 18 mA per LED (max. 126 mA)
- Outer diameter: Ø23 mm
- Individually addressable LEDs: Yes
- Compatible with Arduino libraries: Yes
- User guide with code examples (Arduino and MicroPython): Yes

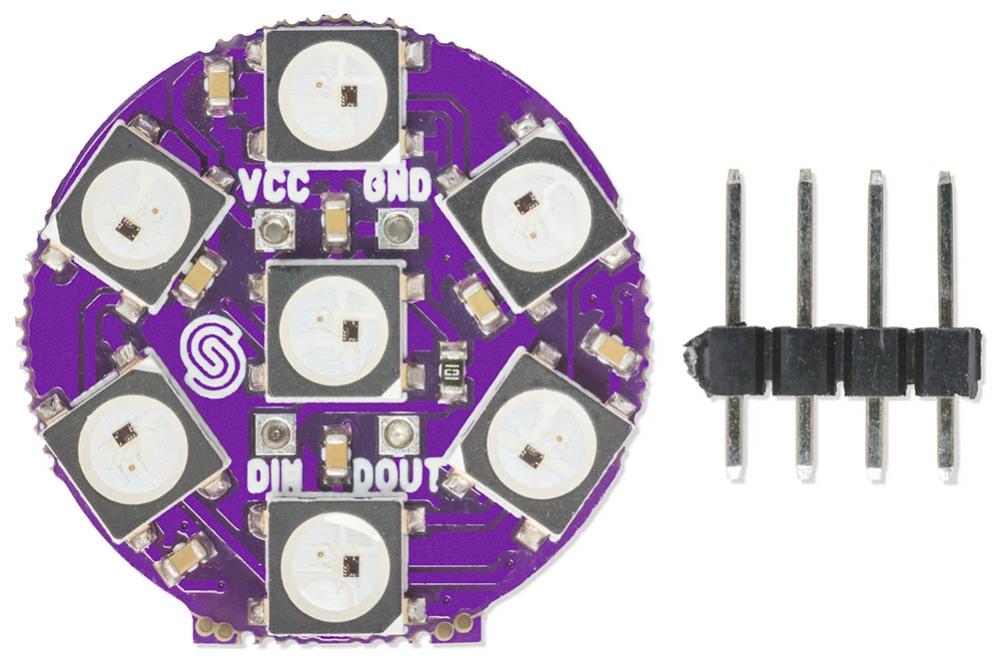

- Supplied with a pin header (not pre-installed)
