Product description
Breakout adapter, SMD to DIP. Allows a surface-mounted IC to be used on for example a breadboard or prototype board. Also useful since many ICs that were previously manufactured for through-hole mounting (THT) are no longer available and have been completely replaced by SMD variants. Manufactured in FR-4 fiberglass material which provides good mechanical stability and withstands repeated soldering. The adapter board is supplied without pin headers. Use pin headers with a 2.54 mm pitch.

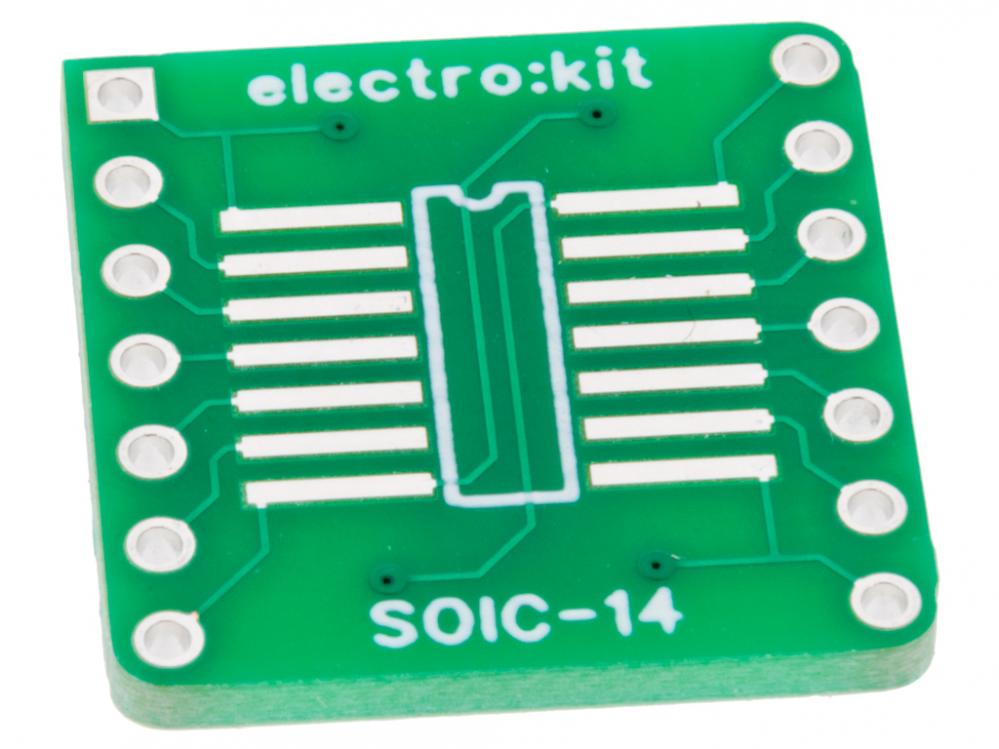

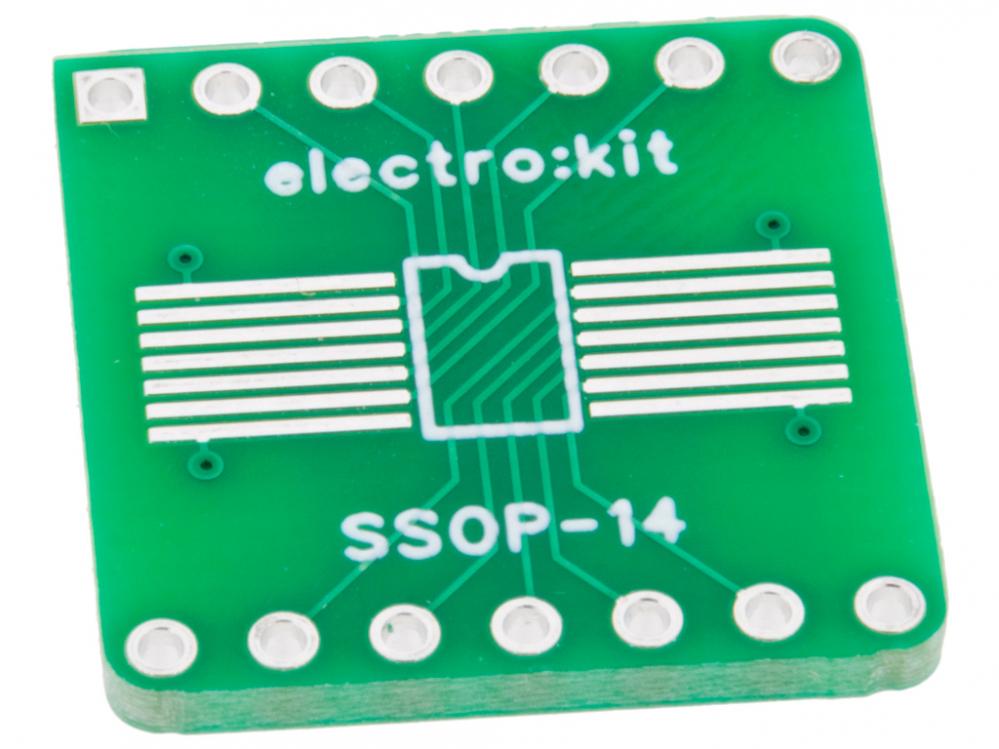

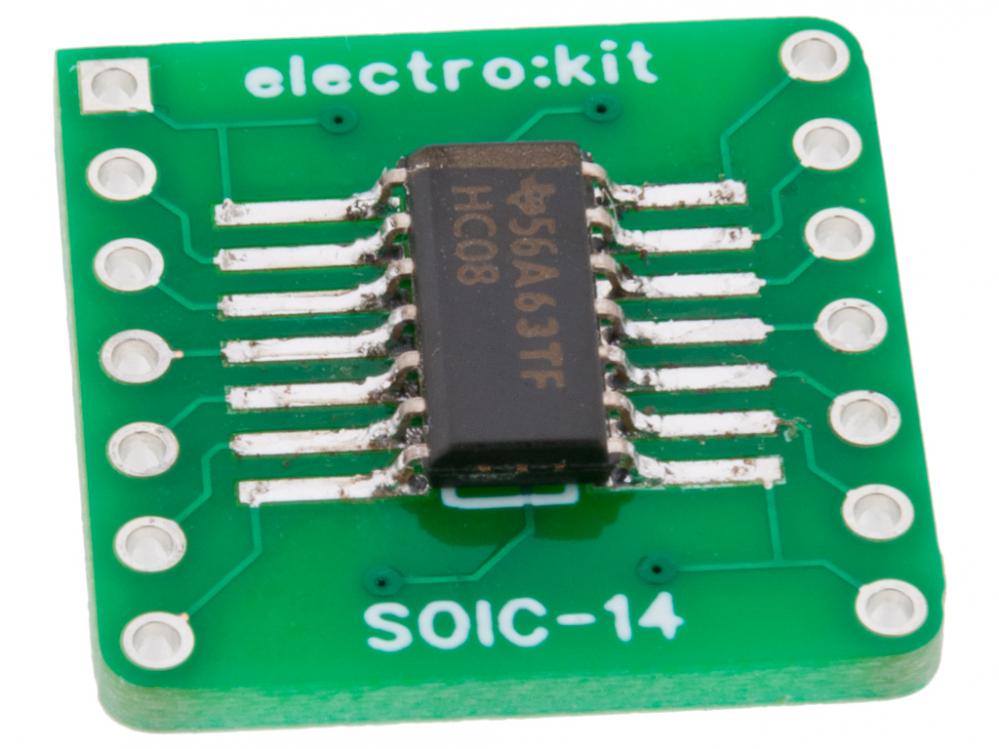

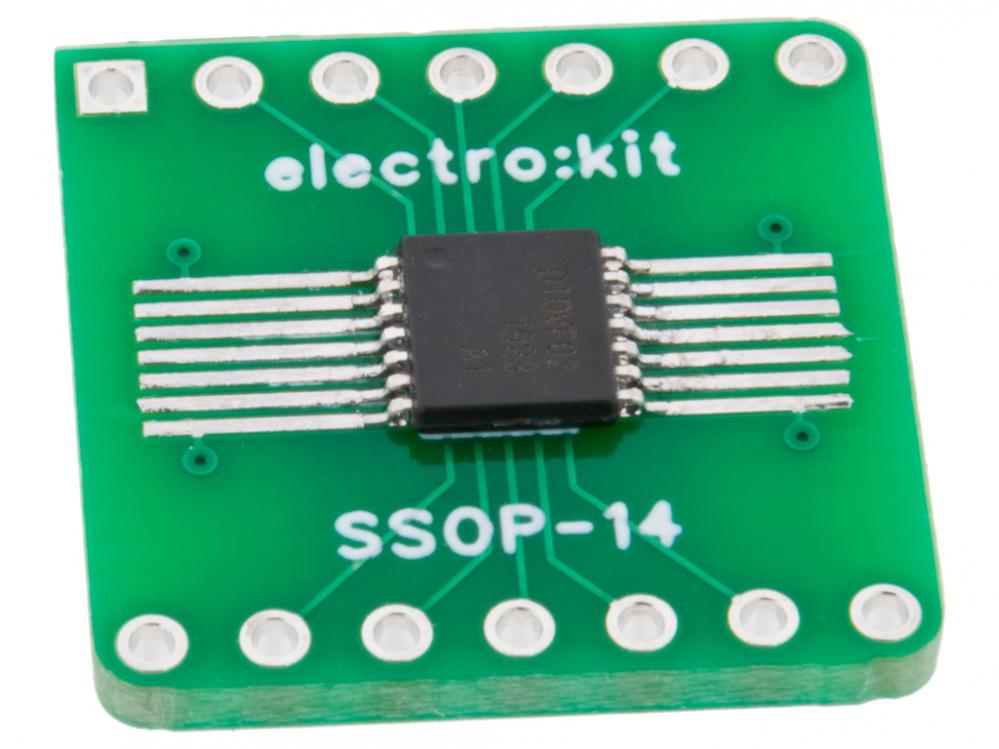

The adapter board has two sides, allowing it to be used for two different package types: SO-14/SOP-14 (1.27 mm pitch) or SSOP-14/TSSOP-14 (0.65 mm pitch).
Specifications:
- Compatible SMD IC package: SO-14/SOP-14 and SSOP-14/TSSOP-14
- Pin pitch side A: 1.27 mm (0.05")
- Pin pitch side B: 0.65 mm (0.025")
- Pin header pitch: 2.54 mm (0.1")
- Number of pins: 14
- Pin headers for DIP: Not included
- Width (DIL): 0.6" / 600 mil (15.24 mm)
- Number of adapter boards in package: 1 pcs
- Traces: Tinned copper (lead-free)
- Trace thickness: 35 µm, double-sided
- Plated through holes: Yes
- Material: Fiberglass (FR-4)
- Dimensions: 18 x 18 x 1.5 mm
- Operating temperature range: -40 to 130 °C
- Soldering temperature: < 260 °C (suitable for lead-free soldering)
- Manufacturer: Electrokit Sweden AB
