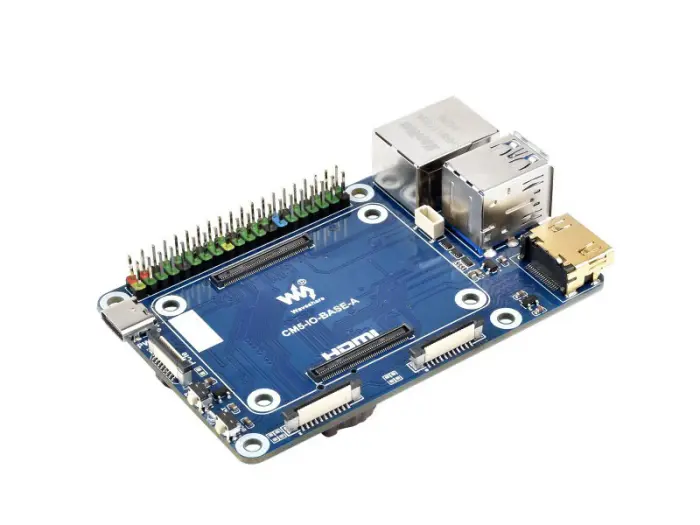

Product description

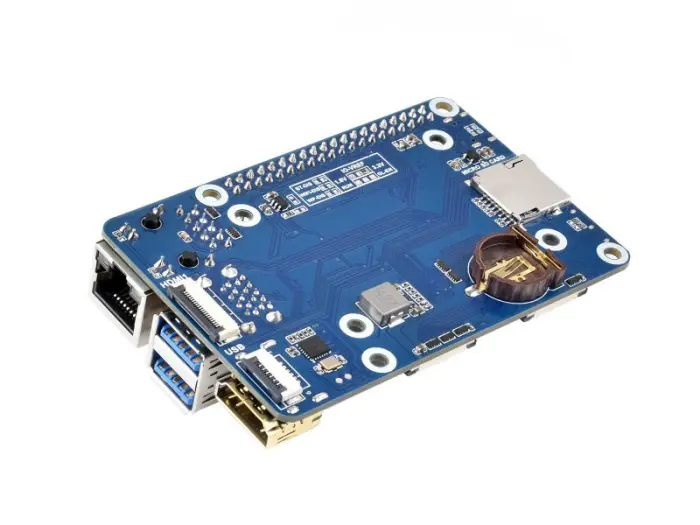

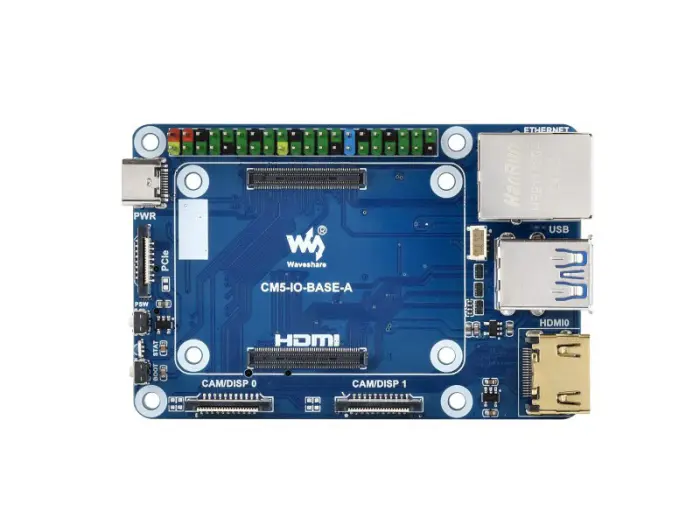

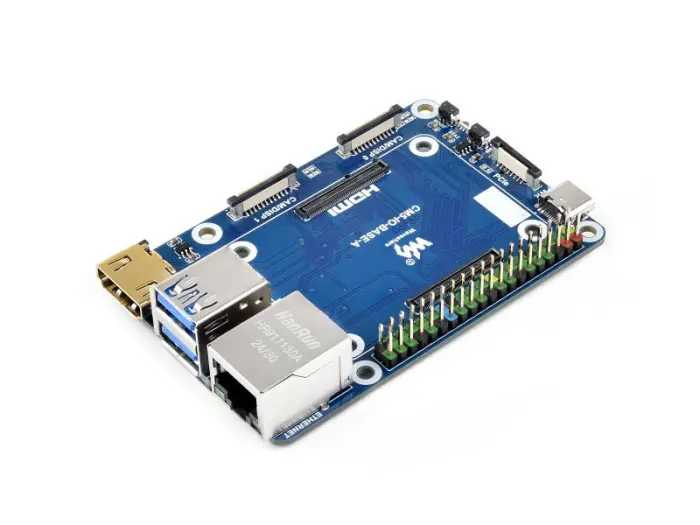

Waveshare Mini Base Board (A) is a compact IO carrier board for the Raspberry Pi Compute Module 5 (CM5). Supplied with mounting screws.

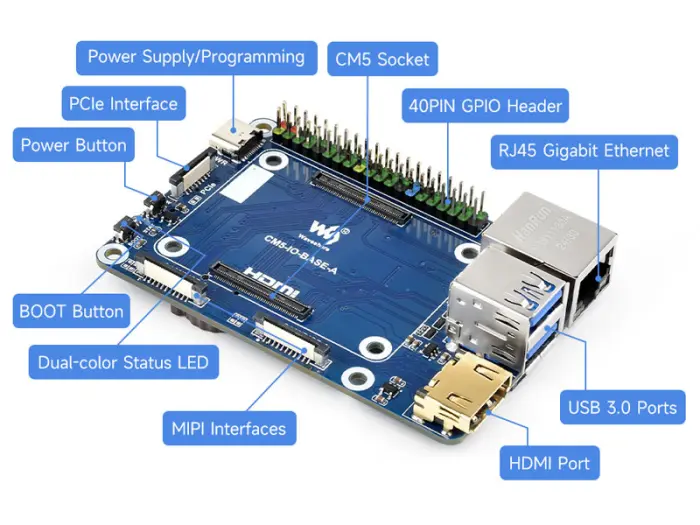

Specifications:
- Supports all CM5 variants (including Lite and eMMC versions)
- Power supply: DC 5V, 5A via USB-C port
- Networking: Gigabit Ethernet (RJ45)
- USB ports: 2 × USB 3.2 Gen1 Type-A, 2 × USB 2.0 via 6-pin 1 mm FFC connectors
- HDMI: 2 × HDMI ports (one via FFC connector), supports dual 4K output
- PCIe: 16-pin (PCIe Gen2/3 x1)

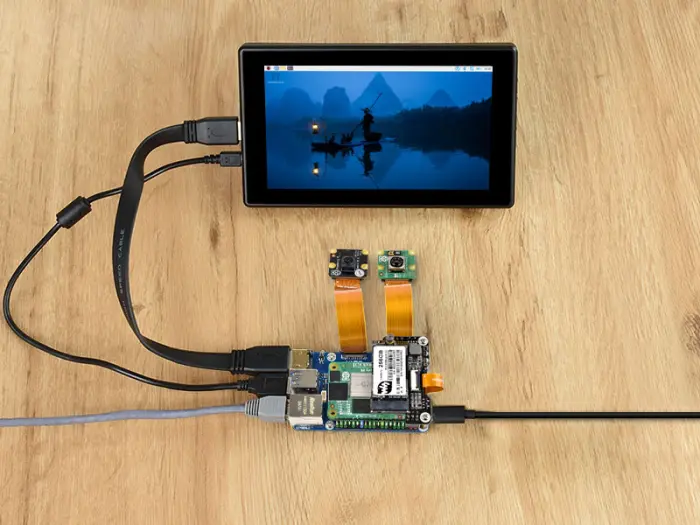

- MIPI interfaces: FFC connectors for DSI displays and CSI cameras

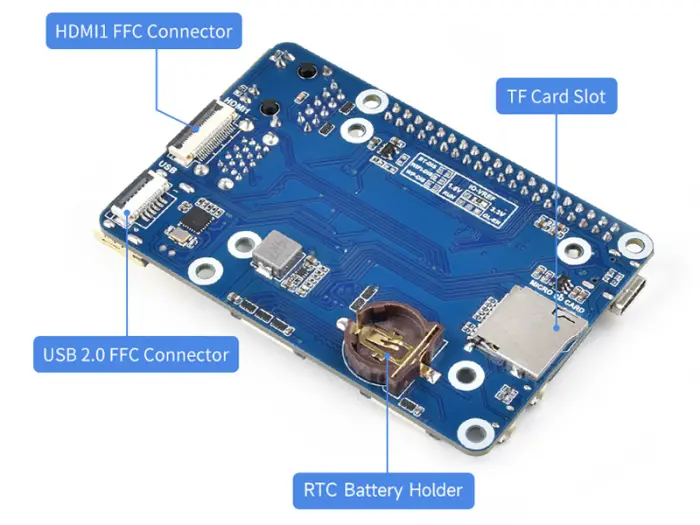

- Storage: Micro-SD card slot for CM5 Lite variants without eMMC

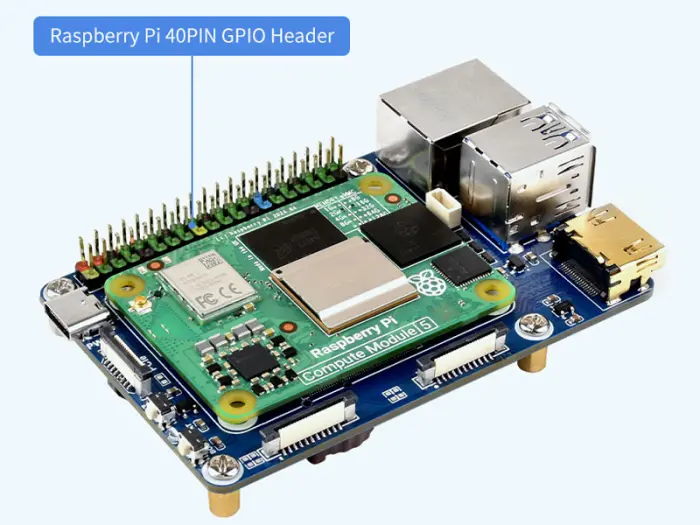

- GPIO: 40-pin GPIO header, color-coded for easy identification
- Fan connector: 4-pin JST-SH PWM connector for 5V fans
- RTC: Battery holder for CR1220 battery

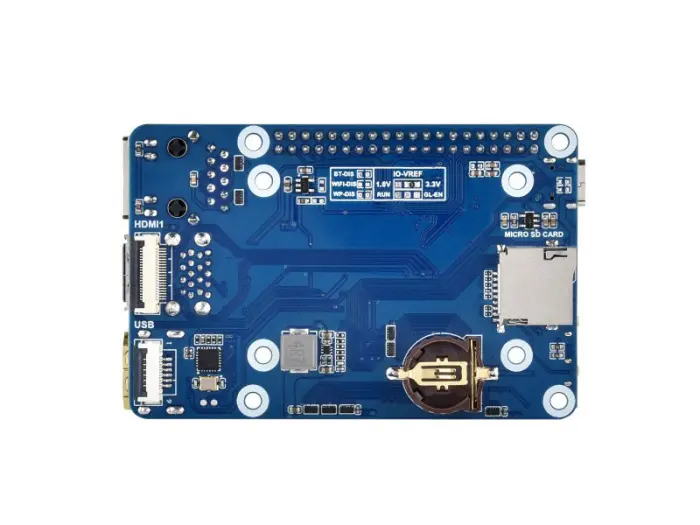

- Additional features: IO-VREF selection (3.3V or 1.8V), BOOT button, power button, status LED

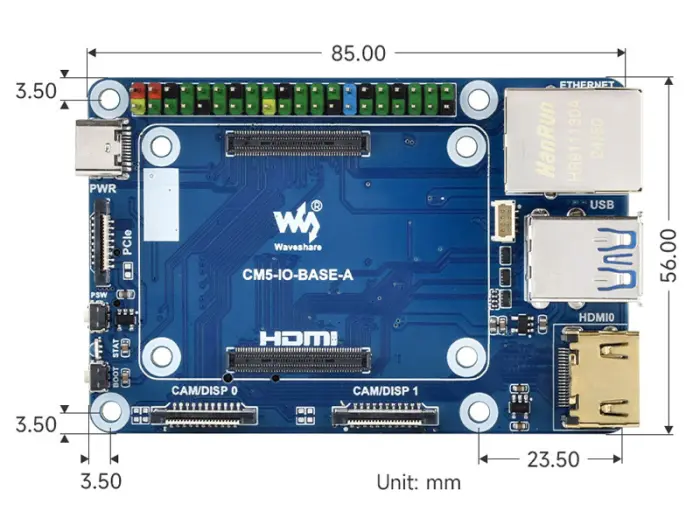

- Dimensions: 85 × 56 mm
