Product description

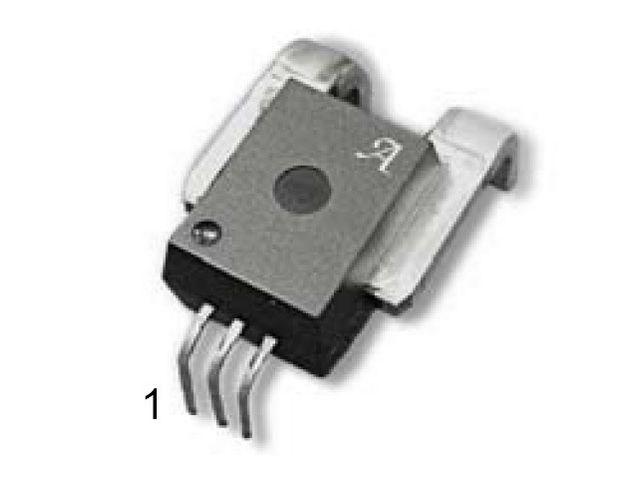

The Allegro ACS756 family of current sensor ICs provides economical and precise solutions for AC or DC current sensing in industrial, automotive, commercial, and communications systems. The device package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, power supplies, and overcurrent fault protection.
Features and Benefits
? Industry-leading noise performance through proprietary amplifier and filter design techniques ? Total output error 0.8% at TA = 25°C
? Small package size, with easy mounting capability
? Monolithic Hall IC for high reliability
? Ultra-low power loss: 130 µO internal conductor resistance
? 3 kVRMS
minimum isolation voltage from pins 1-3 to pins 4-5
? 3.0 to 5.0 V, single supply operation
? 3 µs output rise time in response to step input current
? 20 or 40 mV/A output sensitivity
? Output voltage proportional to AC or DC currents
? Factory-trimmed for accuracy
? Extremely stable output offset voltage
? Nearly zero magnetic hysteresis
