Product description

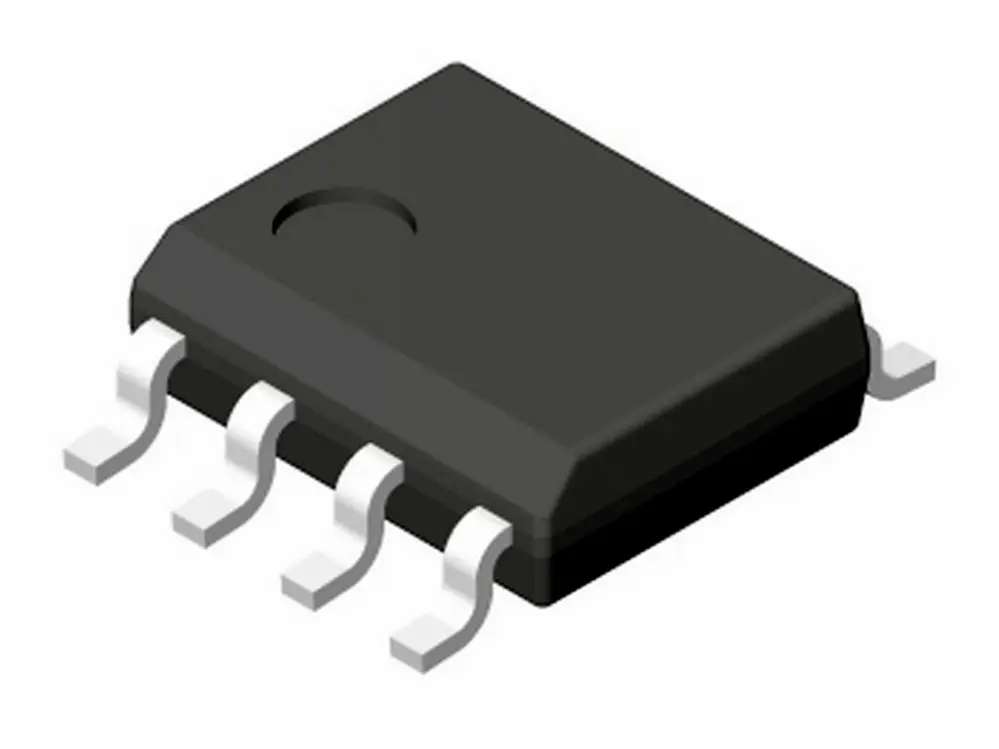

Current sensor for measuring both AC and DC. The sensor is built with a hall effect sensor and detects current without an external shint resistor. The sensor is very precise and outputs a linear output voltage, proportional to the measured current.
* Internal resistance: 1.2mOhm
* Sensitivity: 185mV/A
* Measurement range: ±5A
* Supply voltage: 4.5 - 5.5VDC
* Power consumption: 8mA
* Linearity: ±1%
* Insulation voltage: 2.1kV
