Product description

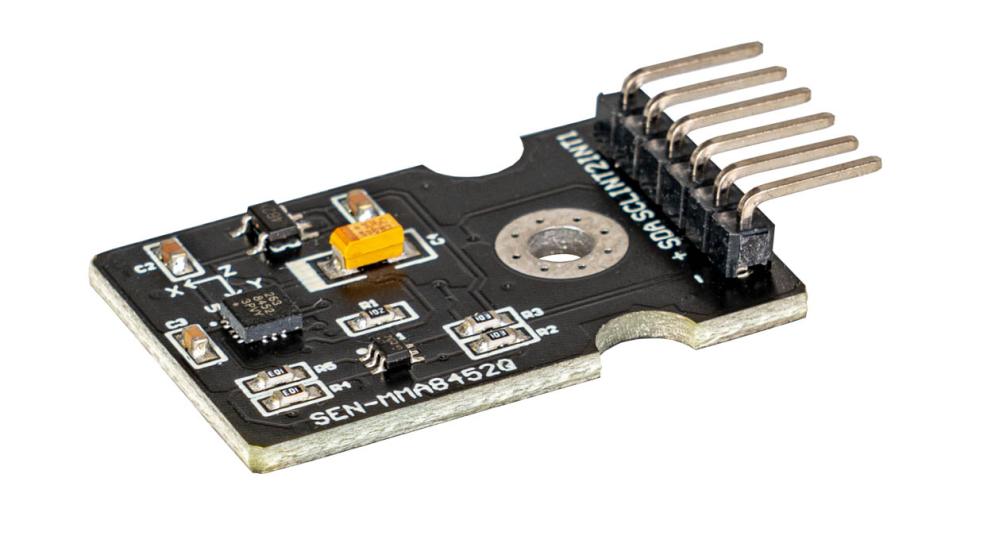

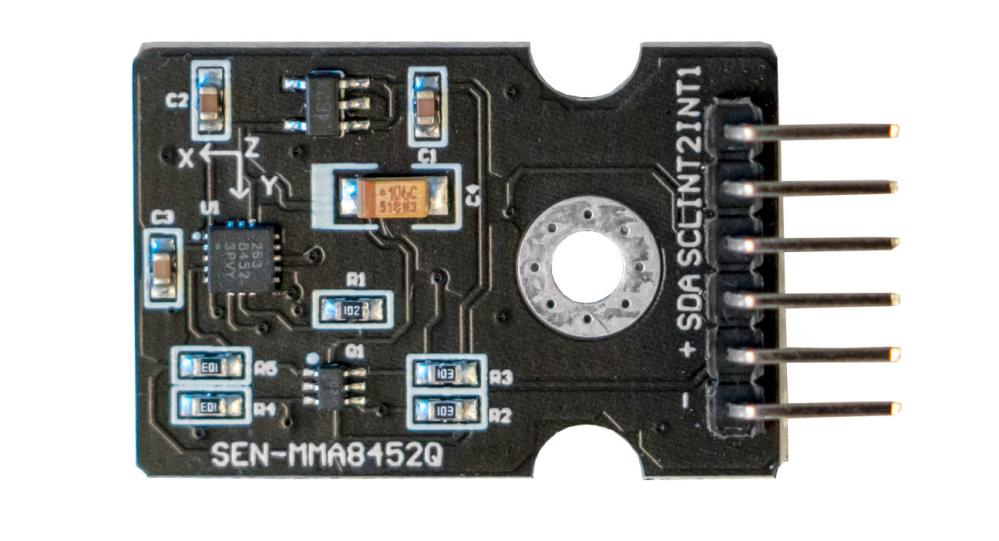

Three-axis accelerometer based on the MMA8452Q IMU sensor. Used in projects where precise motion detection and orientation analysis are required. The sensor communicates via I²C and can be configured with multiple measurement ranges as well as built-in functions for event detection such as free fall, vibration, and tilt. Well suited for robotics, embedded systems, education, and prototyping. Supports adjustable sampling rate and 8- and 12-bit digital output.
Specifications:
- IMU sensor: MMA8452Q
- Measurement range: ±2 g, ±4 g, ±8 g
- Resolution: 8 bit or 12 bit
- Sampling rate (ODR): 1.56 to 800 Hz
- Supply voltage: 1.95 - 3.6 V
- Logic level: 1.8 - 3.3 V
- Interface: I²C
- Dimensions: 35 × 20 × 7 mm
