Product description
8-bit shift register with storage register and tri-state outputs
The 74HCT595S16-13 is ideal for applications requiring serial-to-parallel data conversion, such as driving LED matrices, seven-segment displays, or other digital outputs when I/O resources are limited. This device is commonly used in microcontroller projects to easily expand the number of digital outputs using only three control signals (Data, Clock, and Latch). Multiple devices can also be cascaded to further increase the number of outputs.
For more detailed information, please refer to the datasheet.
Specifications:
- Logic type: Shift register (serial to parallel, serial to serial)
- Number of elements: 1
- Bits per element: 8
- Output type: Tri-state
- Supply voltage: 4.5V to 5.5V
- Input voltage: Up to 6.0V
- Output current: ±8mA at Vcc = 4.5V
- Propagation delay: 25 ns
- Operating temperature: -40°C to +125°C
- ESD protection:
- Latch-up immunity: >250mA per JESD78, Class II

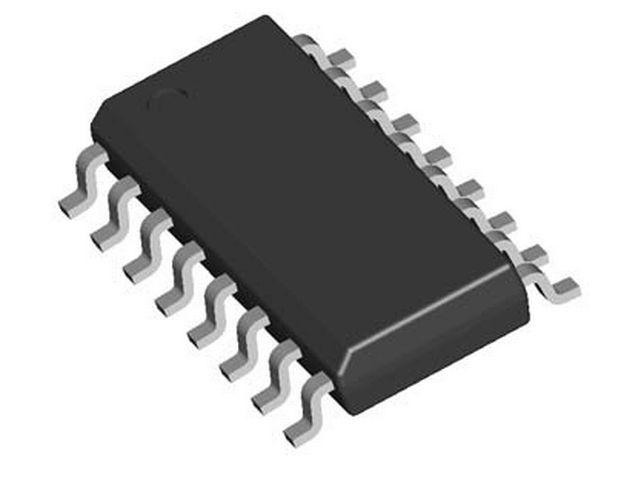

- Package: SOIC-16 (0.154", 3.90mm width)
- Mounting type: Surface mount (SMD)
- Dimensions: 10 x 4 x 1.5 mm
- Logic family: HCT (High-Speed CMOS with TTL-compatible inputs)
- Inputs with Schmitt-trigger function
- RoHS compliant and lead-free
- Manufacturer: Diodes Incorporated
