Product description
Waveshare 4G / GNSS for Raspberry Pi with LTE Cat 4 (4G / 3G / 2G). Based on the SIMCOM SIM7600E-H module, this board provides the Raspberry Pi (including Pico, Zero series, and Jetson Nano) with wireless 4G connectivity and GNSS positioning. The module is optimized for networks in Europe, Southeast Asia, West Asia, and Africa, and supports GNSS systems such as GPS, BeiDou, GLONASS, GALILEO, and QZSS. Development resources and manual with examples for Raspberry Pi, Jetson Nano, Arduino, and STM32 are included.
Refer to the product's Wiki page for more information.
Included:
- LTE antenna with U.FL / MHF / I-PEX connector
- GNSS antenna with U.FL / MHF / I-PEX connector
- USB cables
- Screws and spacers
Specifications:
- 40PIN GPIO extension header for connecting Jetson Nano.
- Supports dial-up, telephone calls, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, and LBS base station positioning.
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.
- Breakout UART control pins, to connect with host boards like Arduino/STM32.
- Onboard CP2102 USB to UART converter, for serial debugging.
- SIM card slot, supports 1.8V/3V SIM card.
- Onboard TF card slot, which can be used to store files, text messages, and other data.

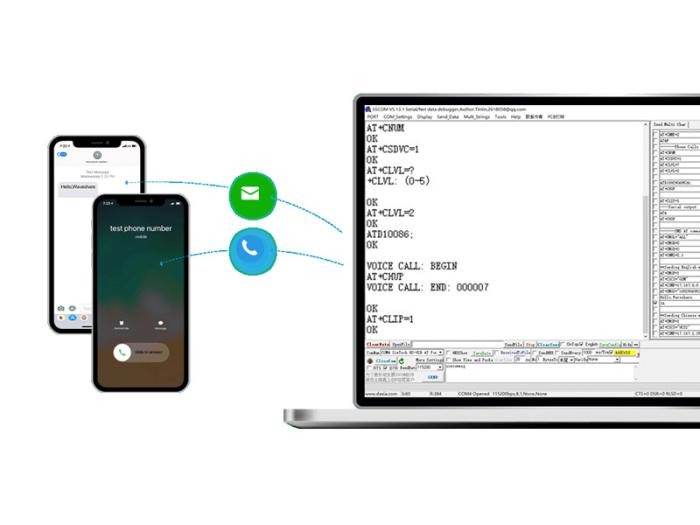

- Onboard audio jack and audio decoder chip, for making telephone calls.
- 2 x LED indicators, easy to monitor the working status.
- Onboard voltage translator, the operating voltage can be configured to 3.3V or 5V via jumper.
- Baudrate: 300bps - 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600 bps - 115200 bps.
- Comes with online resources and manuals (example demos such as Raspberry/Jetson Nano/Arduino/STM32).
