Product description

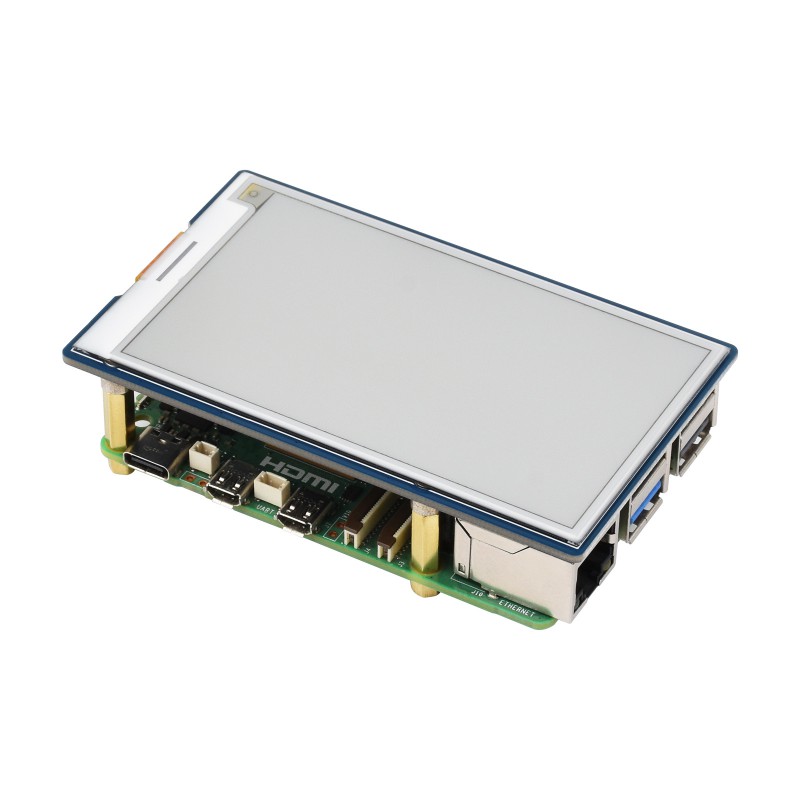

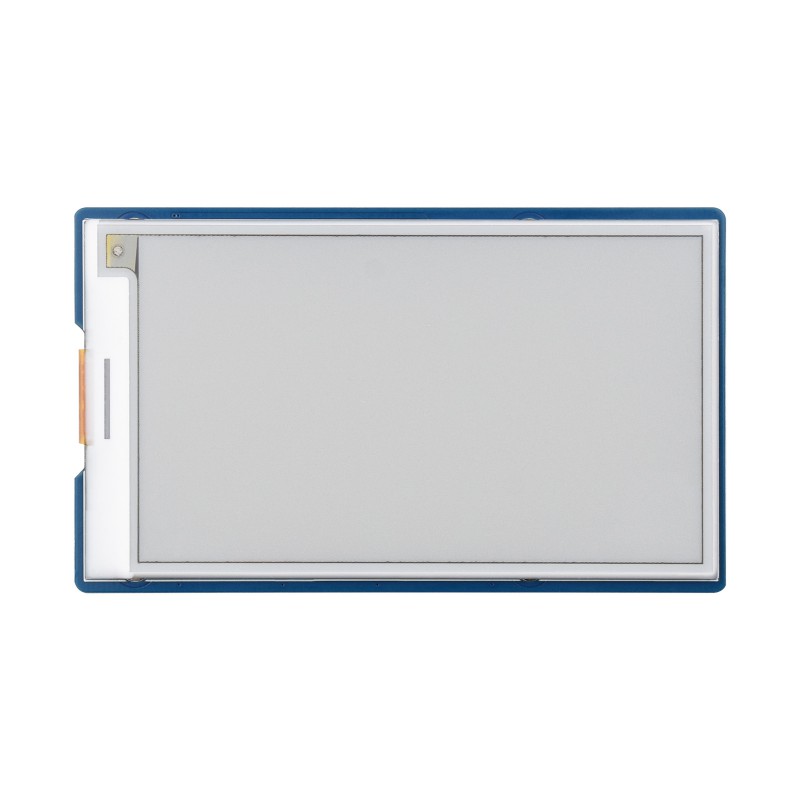

3.7 inch E-paper display for Raspberry Pi. HAT that connects to the 40-pin GPIO header. Resolution 416 × 240 px with red, yellow, black and white colors. High-performance e-ink display with integrated driver HAT.

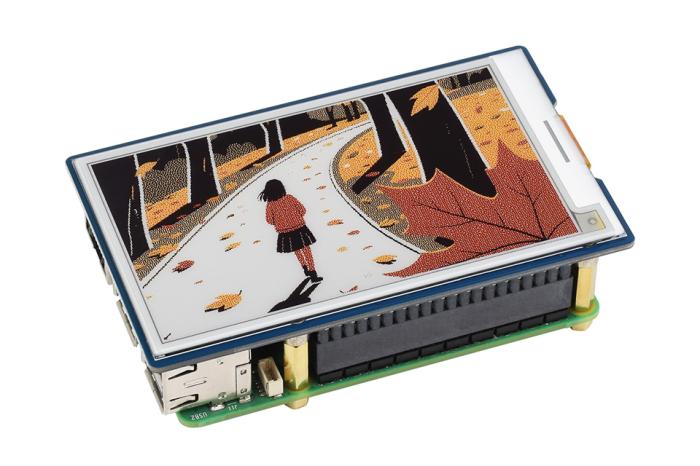

Uses passive E-paper technology, meaning no backlight is required and the displayed content is retained even when power is disconnected. Very low power consumption during operation. The display features a wide viewing angle and provides a paper-like visual appearance that is easy to read in both natural light and indoor lighting. Suitable for applications such as information signage, instrument panels and price tags.

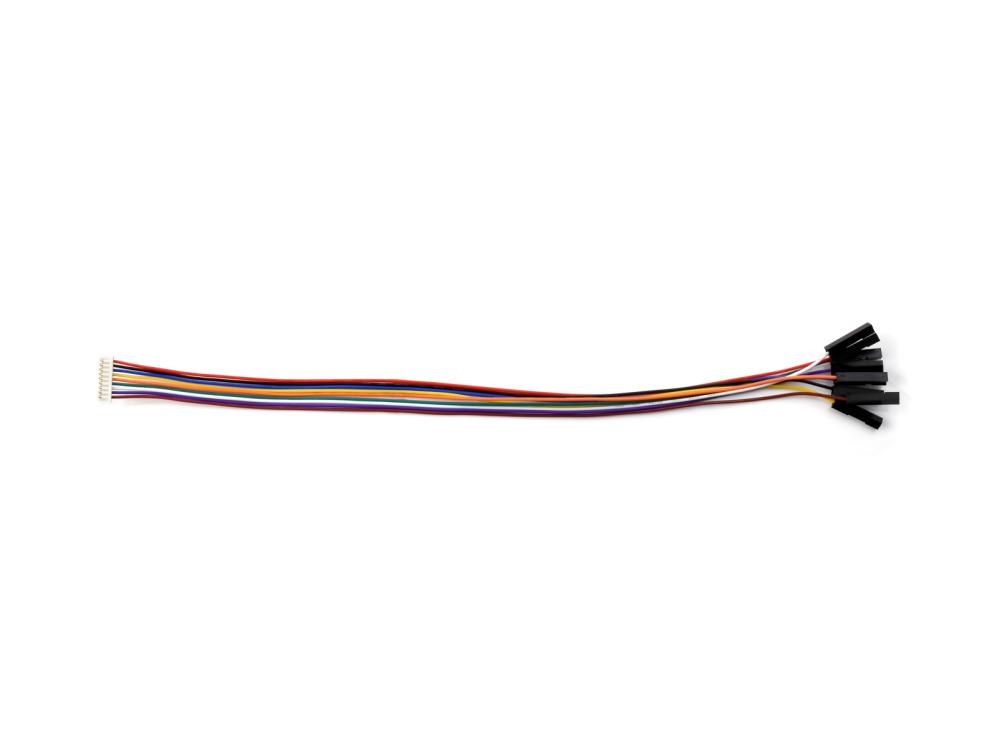

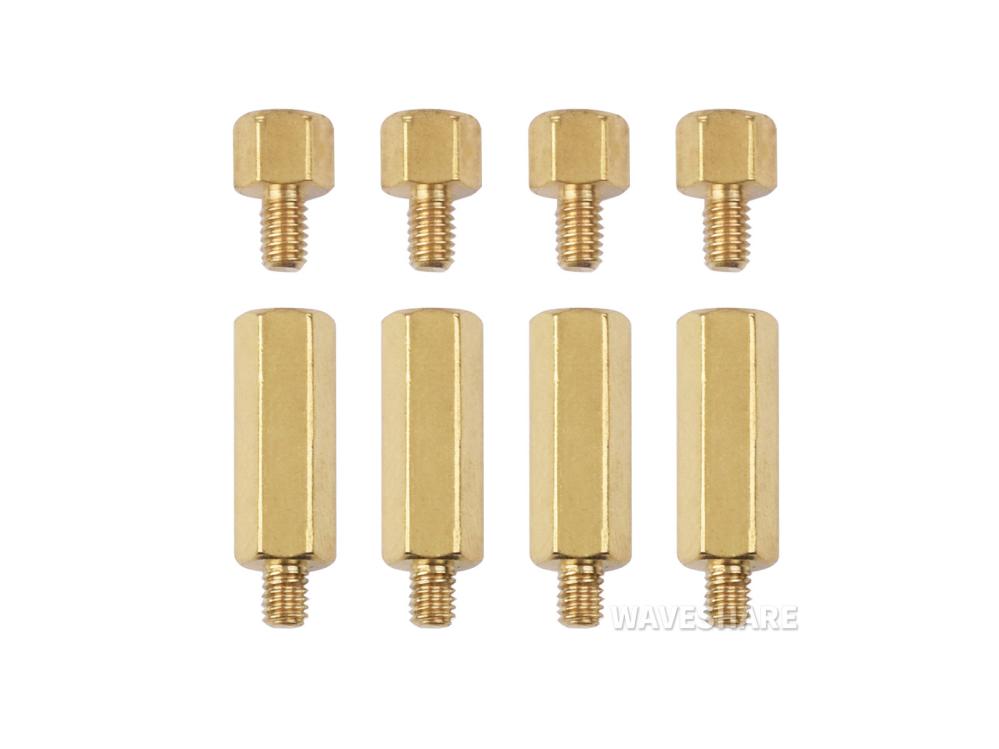

Communication is handled via an SPI interface using the standard Raspberry Pi 40-pin GPIO header. It can also be connected to other microcontrollers (e.g. Arduino, Jetson Nano, STM32 and ESP32) via SPI using the included JST cable. Supplied with screws, spacers and a JST cable with 9 × Dupont (female) connectors.
Specifications:
- Display size: 3.7 inch e-ink panel

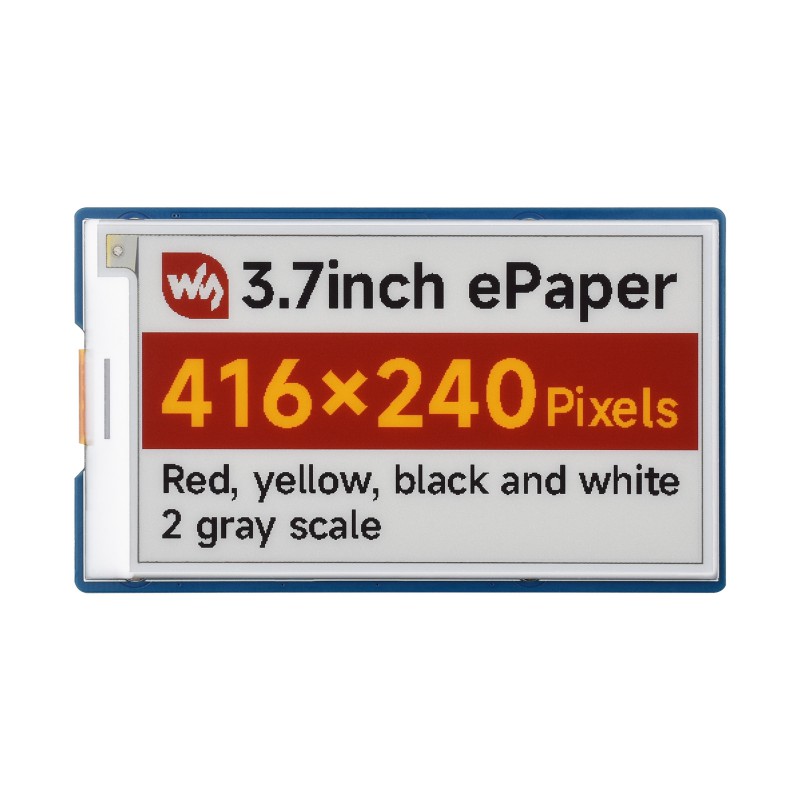

- Resolution: 416 × 240 pixels
- Colors: Red, yellow, black and white
- Grayscale: 2 levels
- Communication interface: SPI
- Supply voltage: 3.3 / 5 V via GPIO or JST cable
- Viewing angle: More than 170 degrees
- Refresh time: Full refresh 20 s (fast refresh 12 s)
- Power consumption during refresh: Less than 30 mW
- Sleep current: 0.01 µA
- Pixel size: 0.196 × 0.196 mm

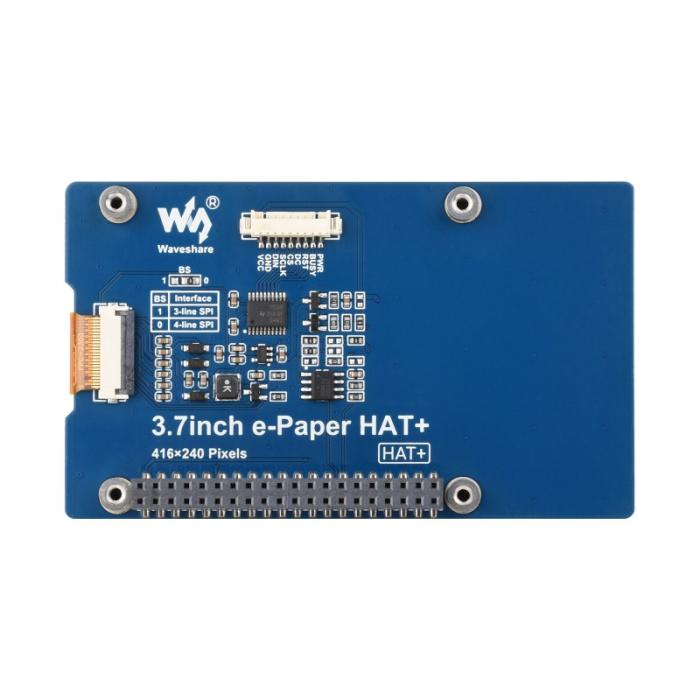

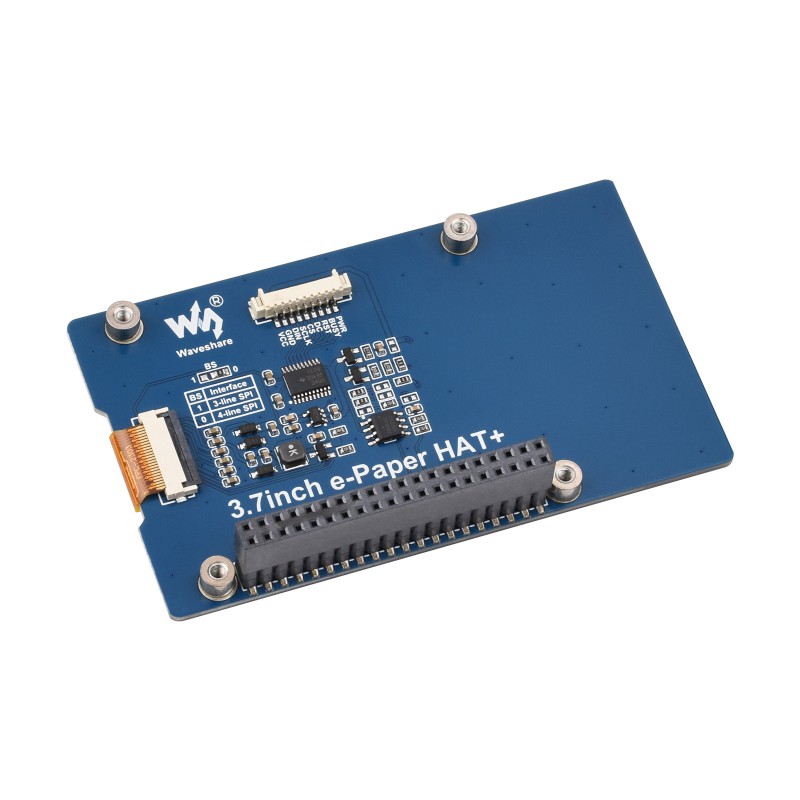

- Driver IC: Integrated on HAT board

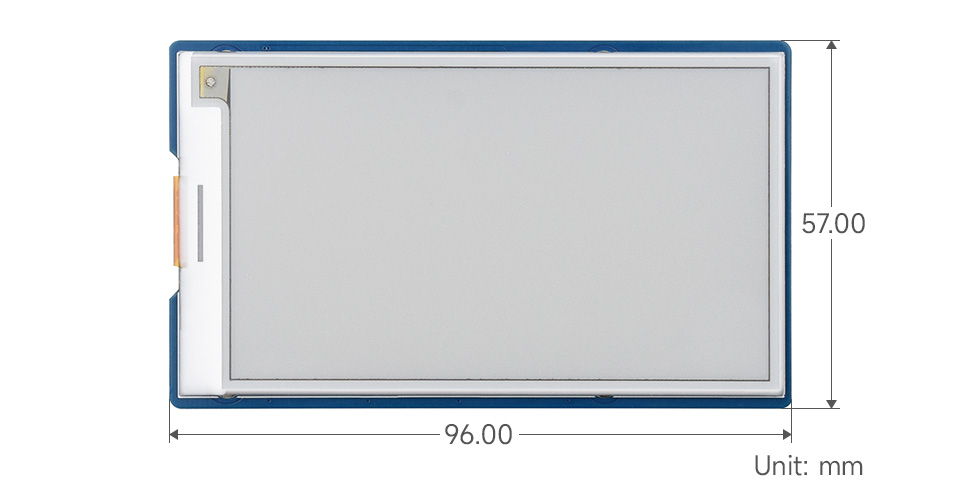

- Dimensions: 96 × 57 mm
- Active display area: 81.5 × 47 mm
- Operating temperature: 0 °C to 40 °C
- Compatibility: Raspberry Pi Zero/4/5 (GPIO) and other MCU systems via SPI
