Product description

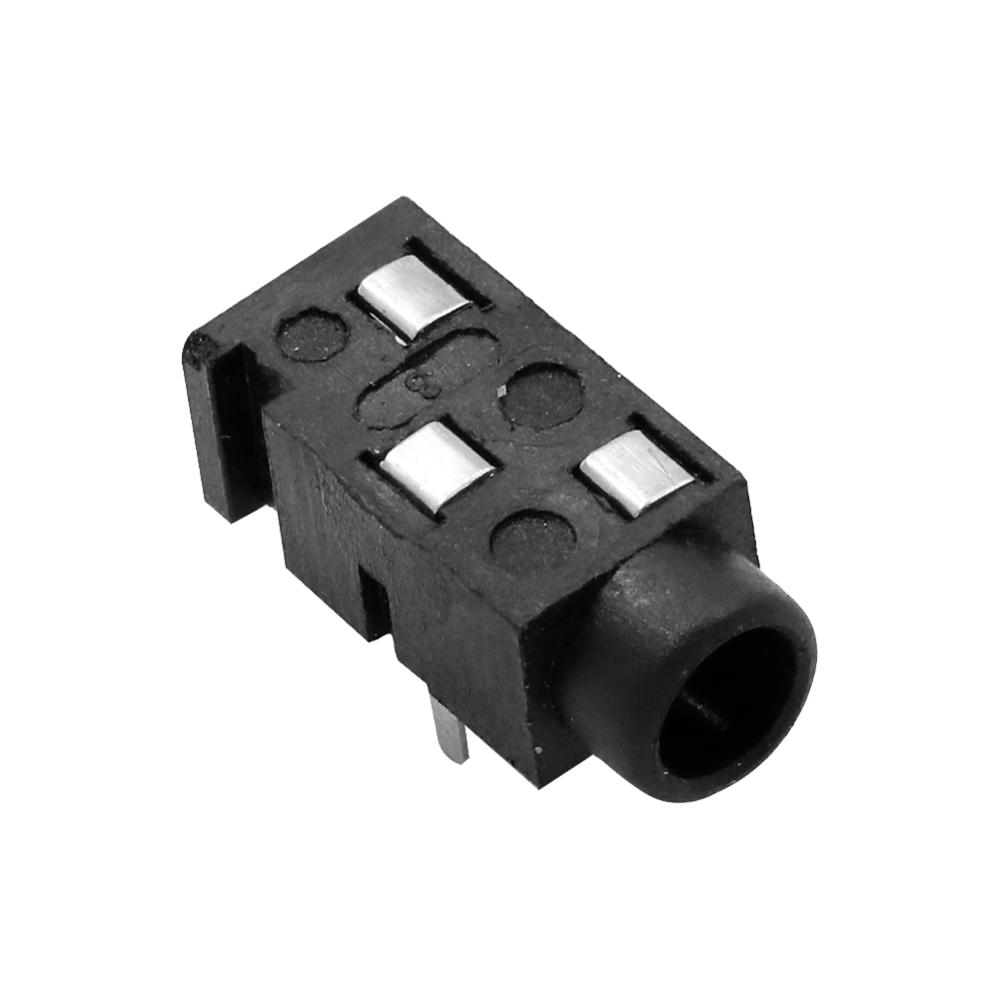

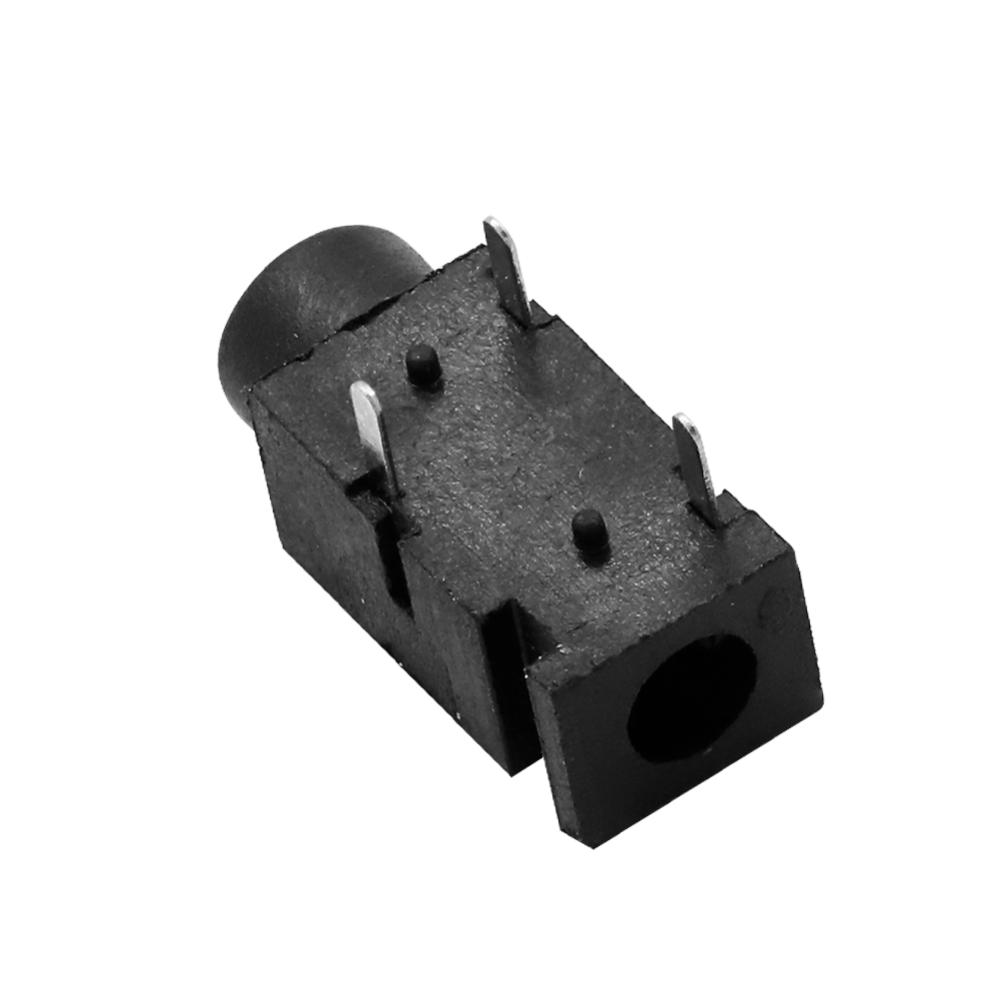

Angled 3.5 mm jack with three poles, stereo. Intended for PCB mounting.
Specifications:
- Contact resistance: <30 mΩ
- Insulation resistance: >100 MΩ
- Withstand voltage: AC 500 V for 1 minute without breakdown
- Service life: 5000 cycles, 10–20 cycles/min
- Rated load: DC 30 V / 0.5 A
- Operating temperature range: -30 - 70℃
