Product description

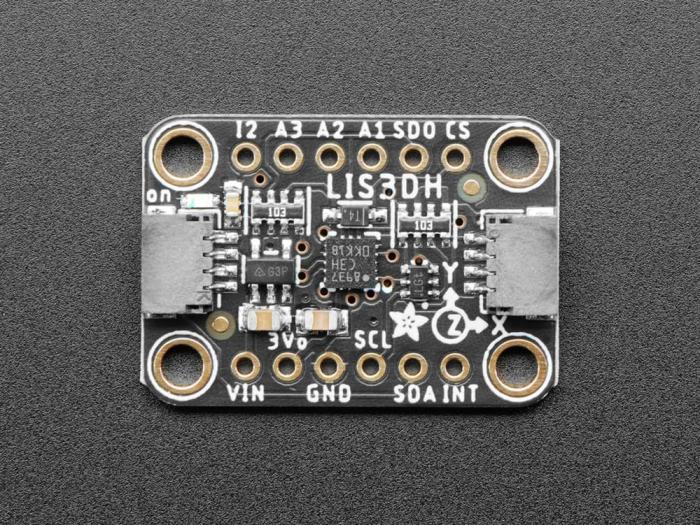

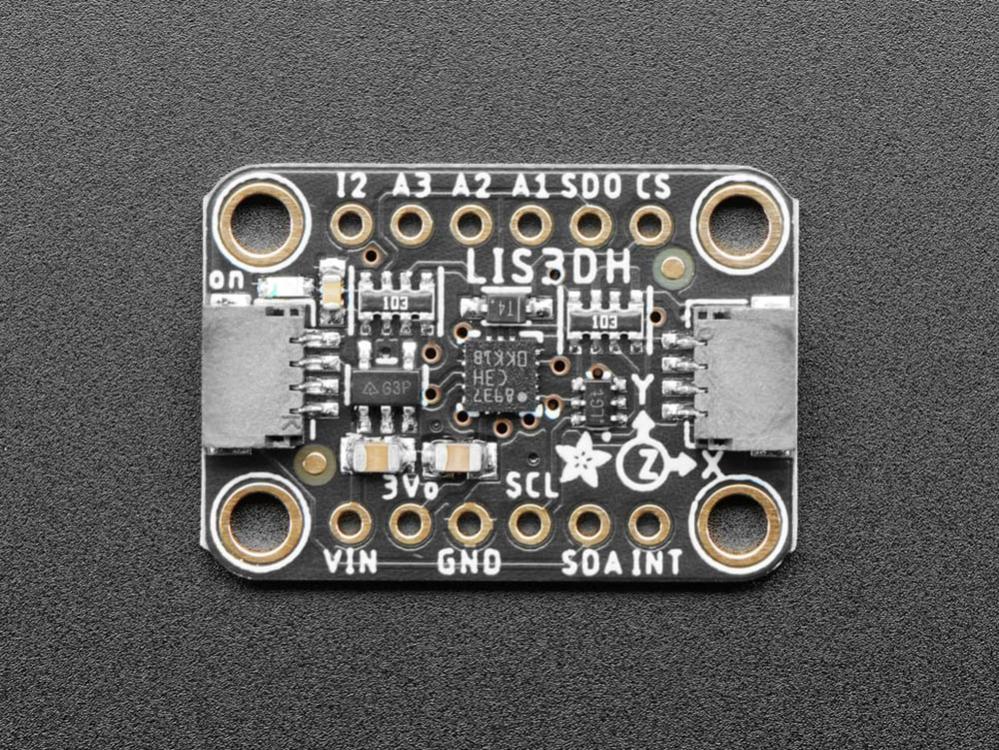

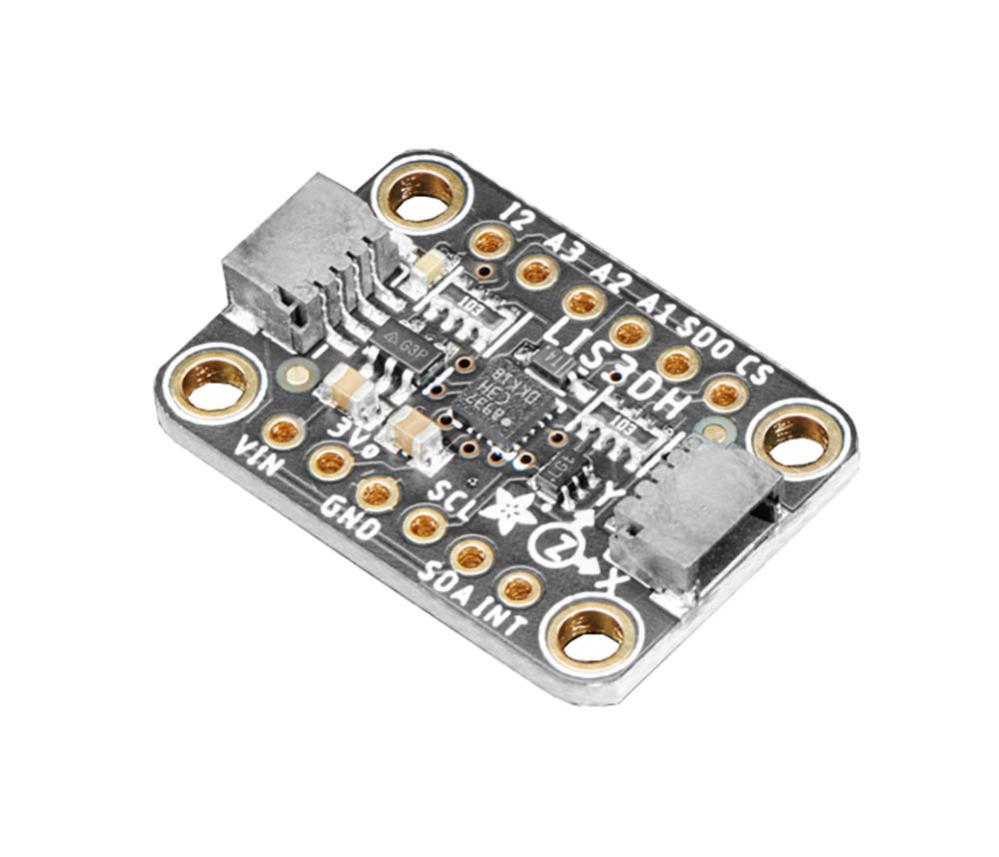

Adafruit LIS3DH is a 3-axis accelerometer module with a selectable measurement range of up to ±16 g. The sensor has 10-bit resolution and supports both I²C and SPI. It features single-tap and double-tap detection, orientation and free-fall detection, as well as an interrupt output. The module has an integrated 3.3 V regulator and level shifting for use with both 3.3 V and 5 V systems. Two Qwiic connectors allow the module to be connected without soldering or daisy-chained with other Qwiic modules. All signals are also broken out to holes for standard pin headers.
Specifications:
- Manufacturer: Adafruit
- Product ID: 2809
- Sensor IC: LIS3DH
- Type: 3-axis accelerometer
- Resolution: 10 bit
- Measurement range: ±2 g, ±4 g, ±8 g or ±16 g
- Data rate: 1 Hz–5 kHz
- Interface: I²C, SPI

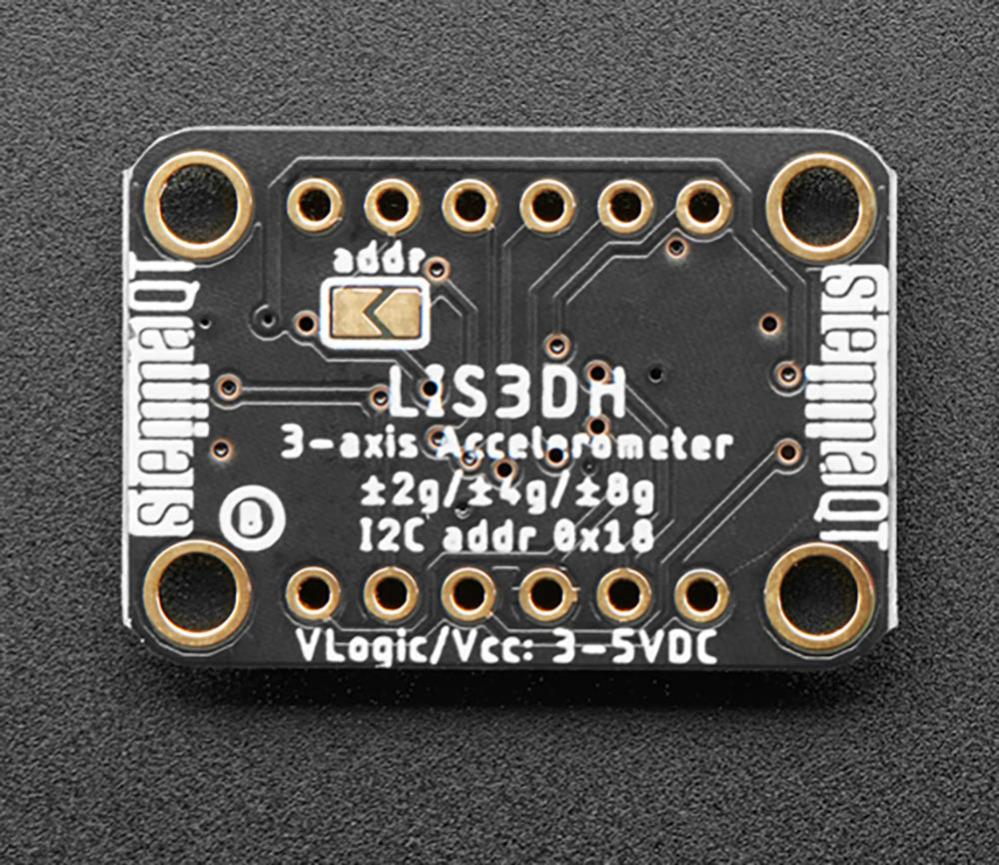

- I²C addresses: 2 selectable
- Sensor current consumption: Down to 2 µA
- Functions: Single-tap, double-tap, orientation and free-fall detection
- Interrupt output: Yes
- Additional ADC inputs: 3
- Logic level shifting: Yes
- Voltage regulator: 3.3 V
- System voltage: 3.3 V or 5 V

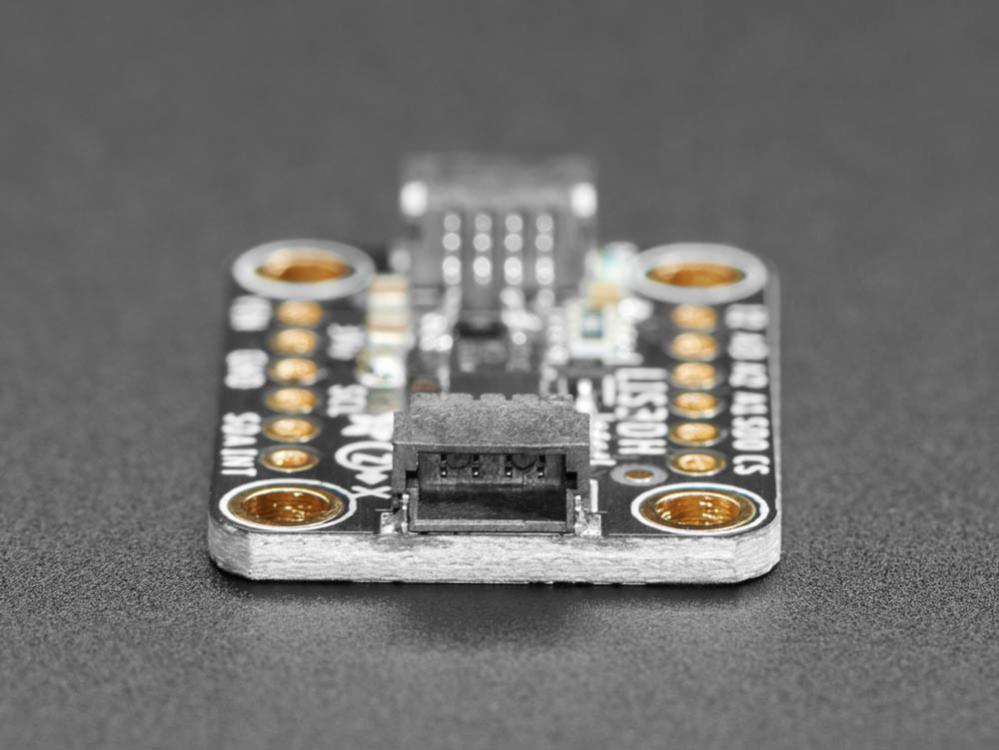

- Connection: 2x Qwiic connectors and pin header
- Mounting holes: 4

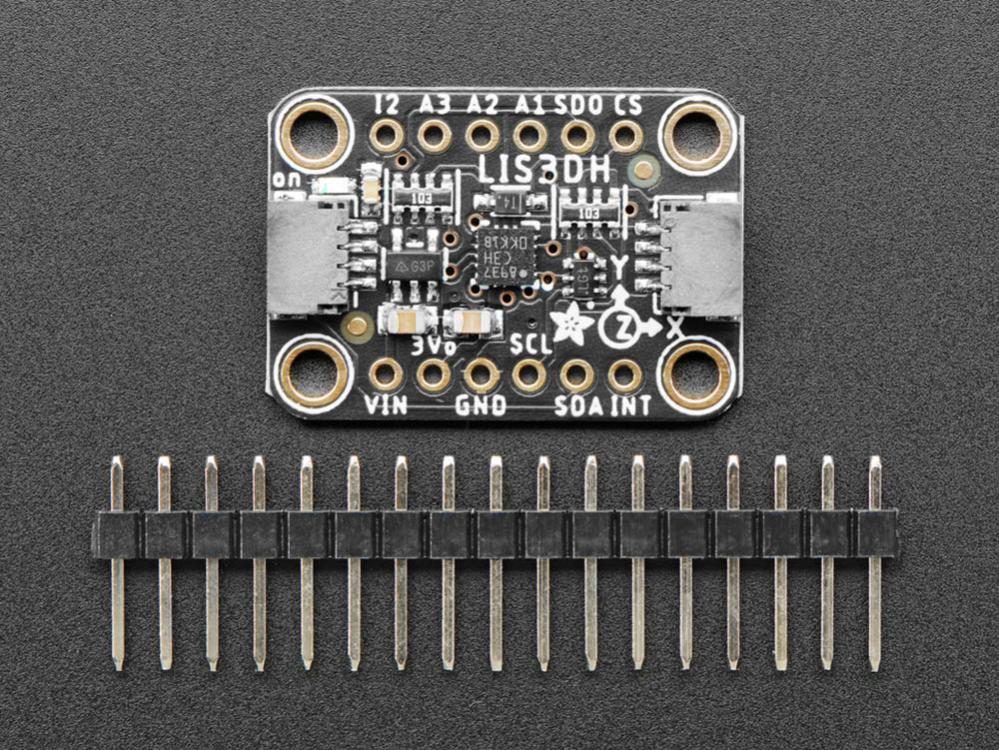

- Supplied with: Pin header (not pre-soldered)
