Product description

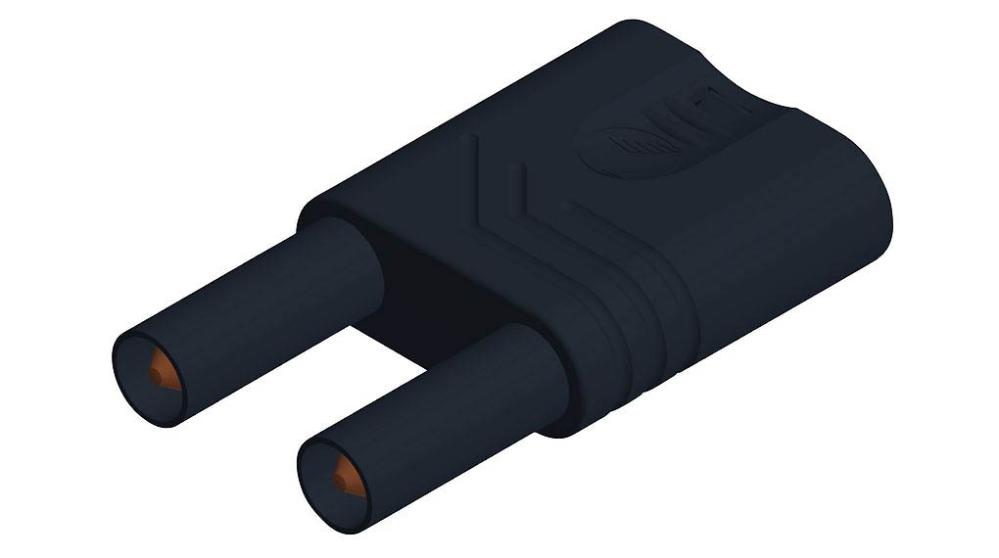

Shorting Plug/Jack 4 mm, black. A touch-protected shorting connector designed for safe measurement and interconnection applications in laboratory and test environments. The connector provides a short-circuited path with pass-through sockets.
Specifications:
- Connection: 2× 4 mm male
- Connection: 2× 4 mm female
- Pin spacing (c-c): 19 mm
- Rated voltage: 1000 V AC/DC (IEC 61010, Category II)
- Rated current: 32 A
- Contact resistance: 8 mΩ
- Contact material: Nickel-plated brass
- Housing material: PA (polyamide)
- Temperature range: –15 °C to +70 °C (according to IEC 61010)
- Flammability rating: UL 94 class V-2 (valid for base material only)
Complies with applicable requirements according to IEC 61010 and is intended for use in Measurement Category CAT II.
