Product description
RP2350 Touch LCD 2 is a high-performance development board based on the Raspberry Pi RP2350. The board is designed for embedded systems and HMI applications where both graphics and interaction are required. The integrated 2-inch capacitive touchscreen enables development of custom user interfaces directly on the hardware without external modules.
The board is based on the RP2350 architecture with support for both ARM Cortex-M33 and RISC-V, providing flexibility in the choice of development environment and application. With support for C/C++, MicroPython, and other development tools, it is suitable for both prototyping and finished products.

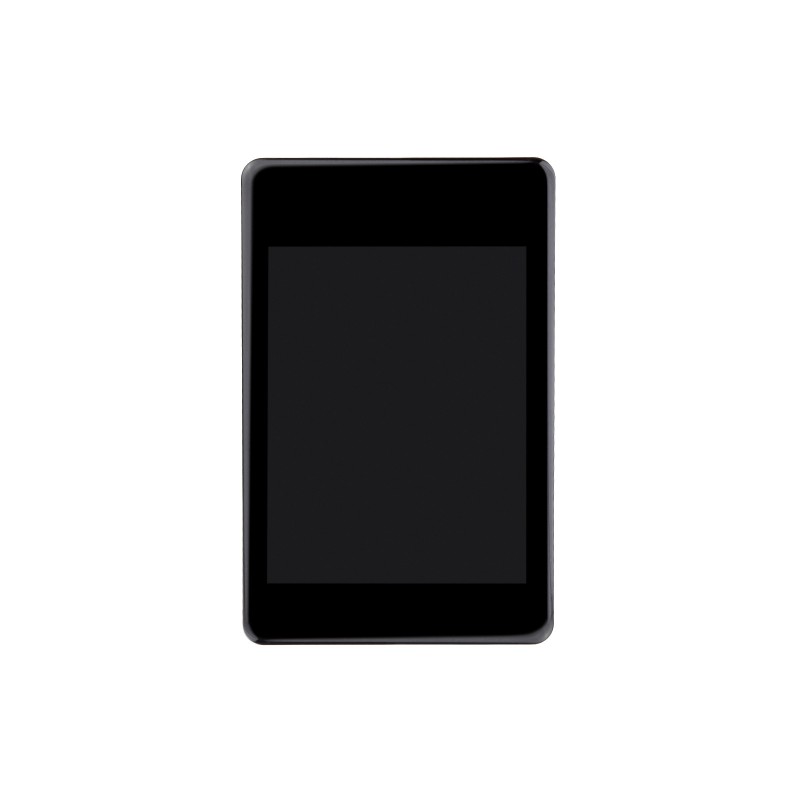

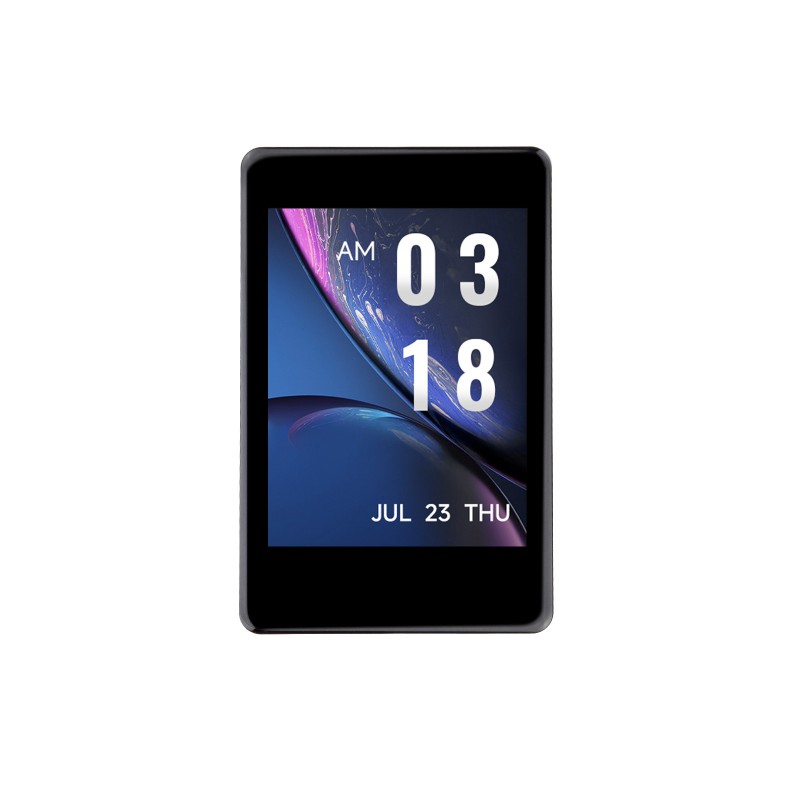

The integrated IPS display with touch functionality provides clear graphics rendering and enables interactive control. The board is also equipped with several built-in features such as camera interface, microSD card slot, and sensors, making it suitable as a platform for applications such as IoT, measurement instruments, and portable systems.

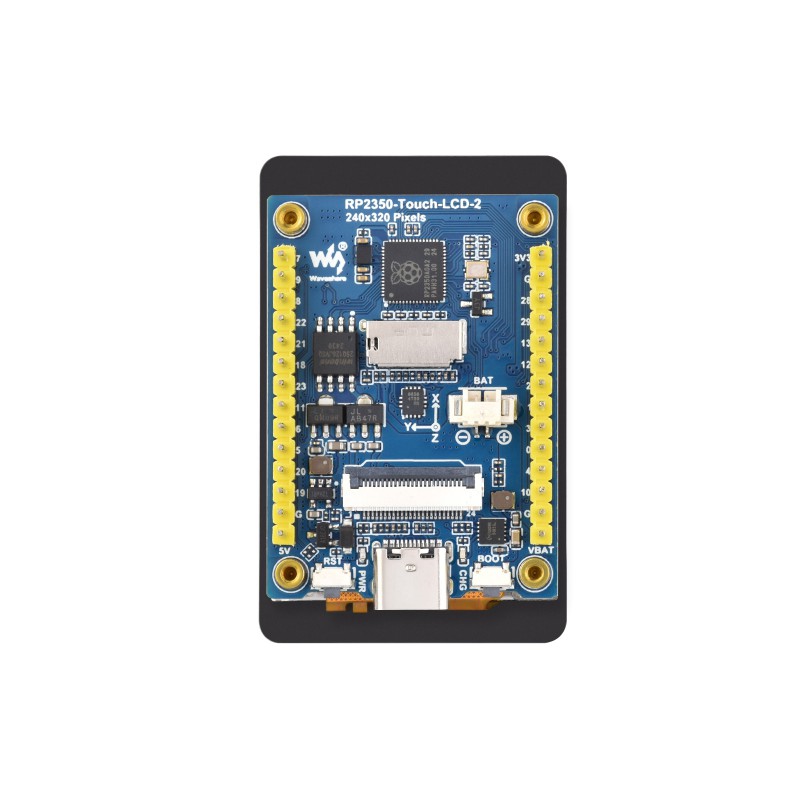

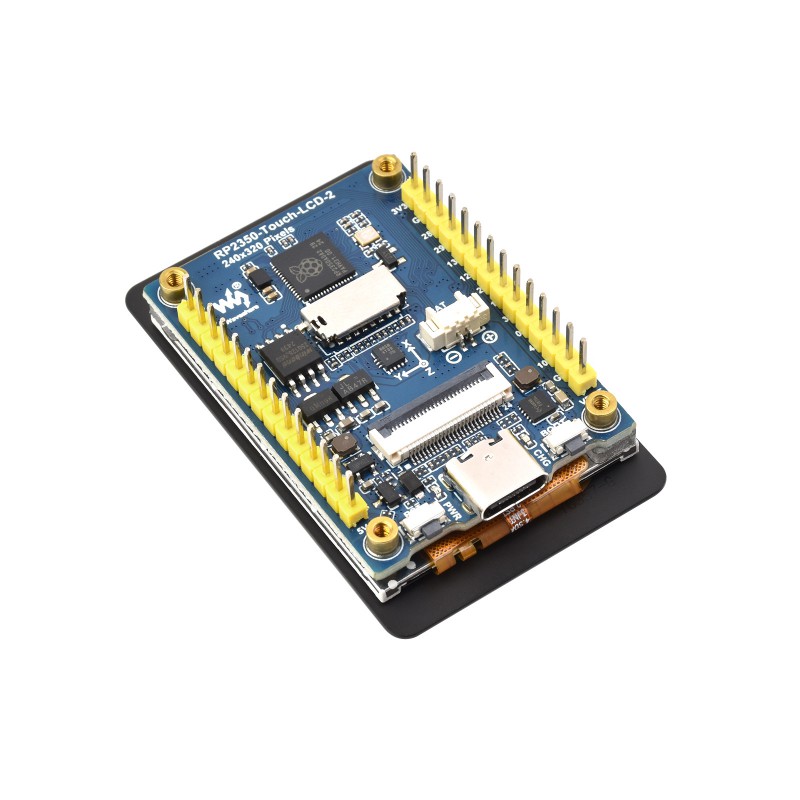

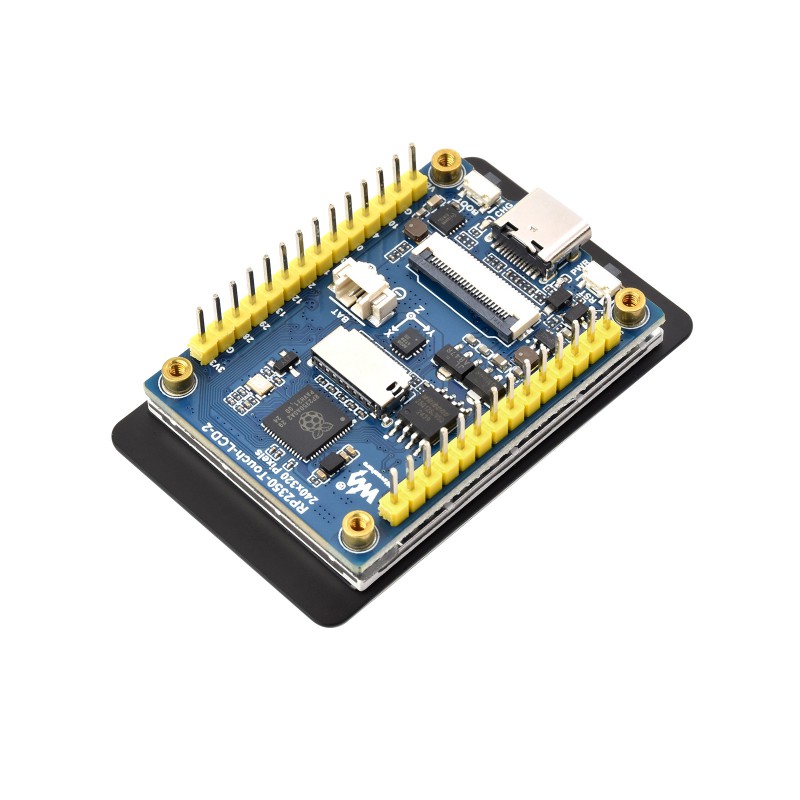

Thanks to support for battery operation, compact form factor, and multiple interfaces, the RP2350 Touch LCD 2 can easily be integrated into both stationary and mobile applications. The board includes pin headers for connection to a breadboard or custom PCB.

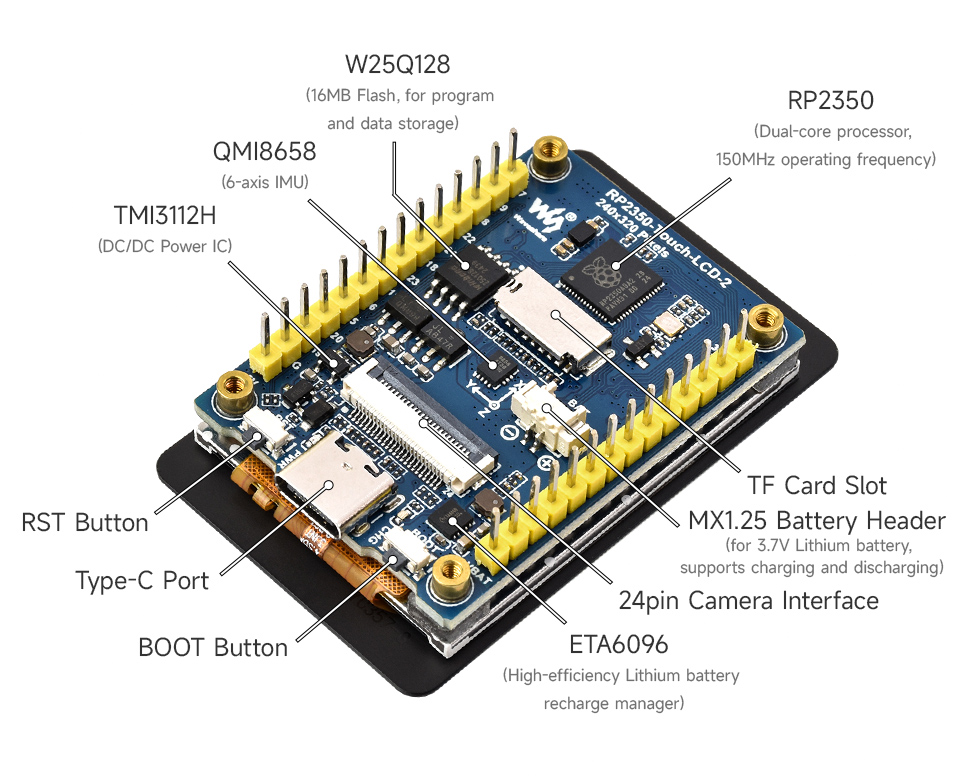

Specifications:
- Microcontroller: Raspberry Pi RP2350
- Processor: Dual-core ARM Cortex-M33 and dual-core Hazard3 RISC-V, up to 150 MHz
- Internal RAM: 520 kB
- Flash memory: 16 MB
- Display: 2 inch IPS, 240 x 320 pixels, 262K colors, capacitive touch
- Interfaces: USB, UART, I2C, SPI, camera interface
- Storage: microSD card slot
- Sensors: 6-axis IMU (accelerometer + gyroscope)
- Other: Battery management for Li-ion
- Supply voltage: 5 V via USB or 3.3 V pin and/or 3.7 V via battery connection
