Product description

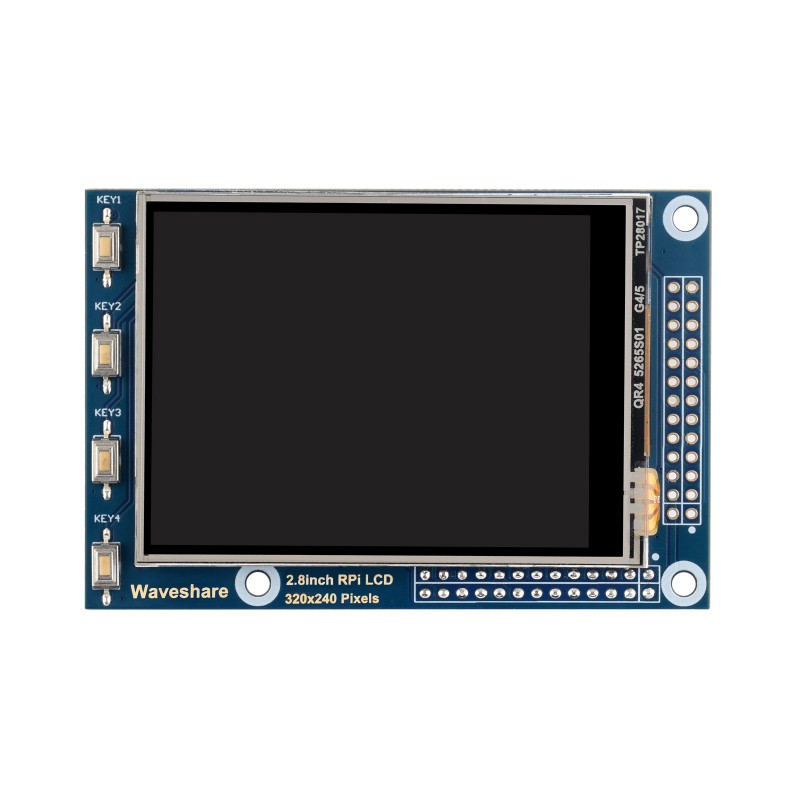

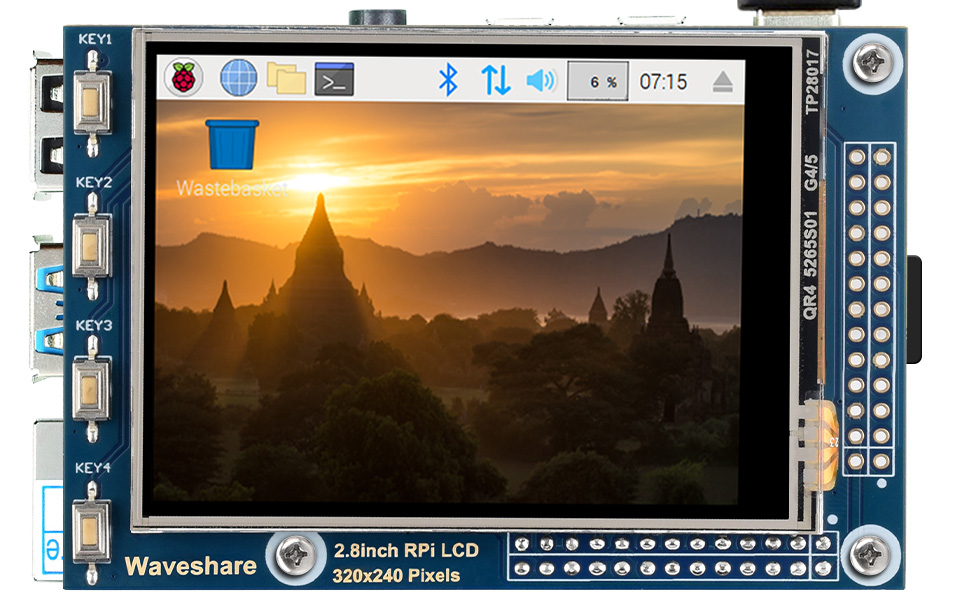

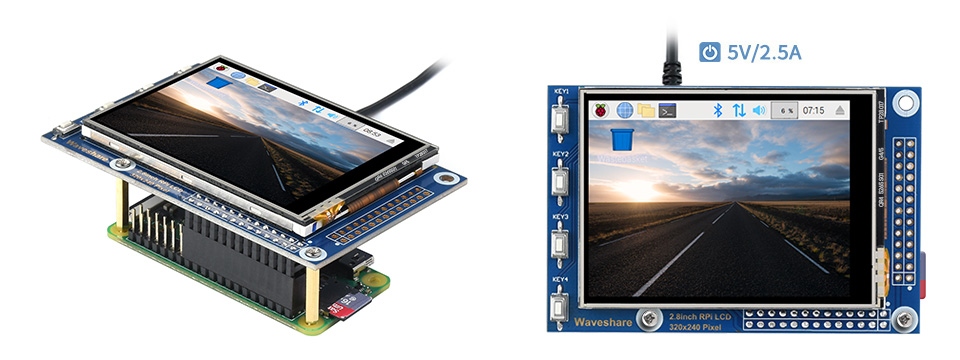

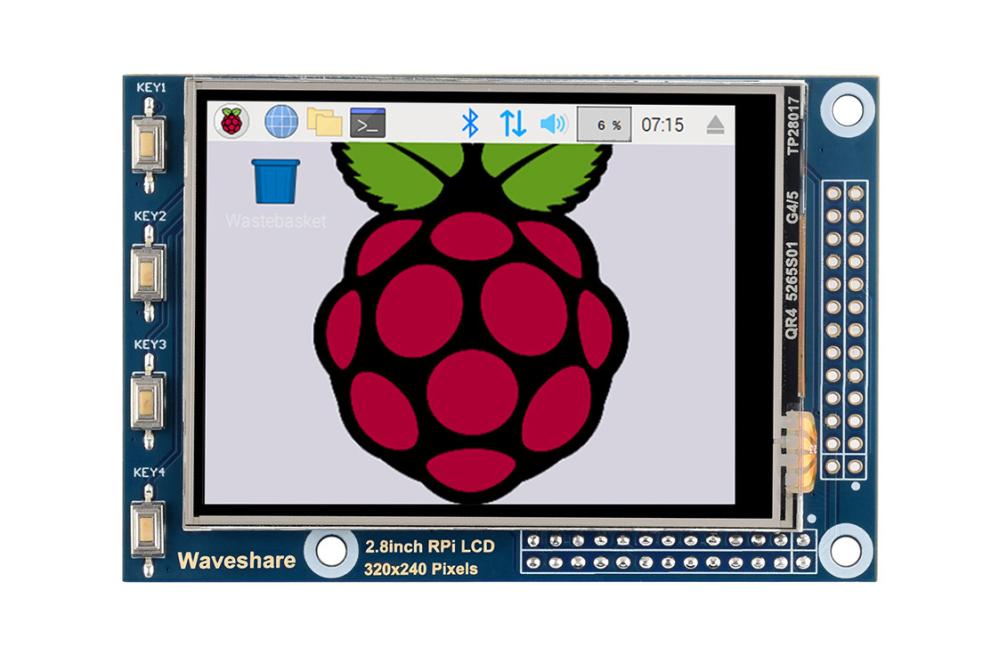

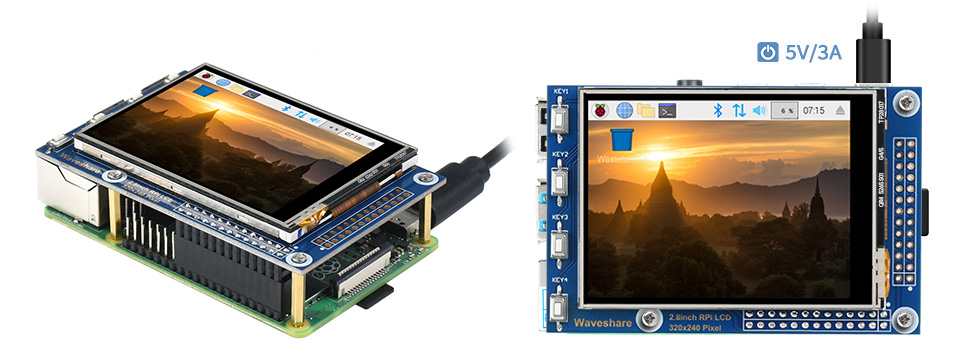

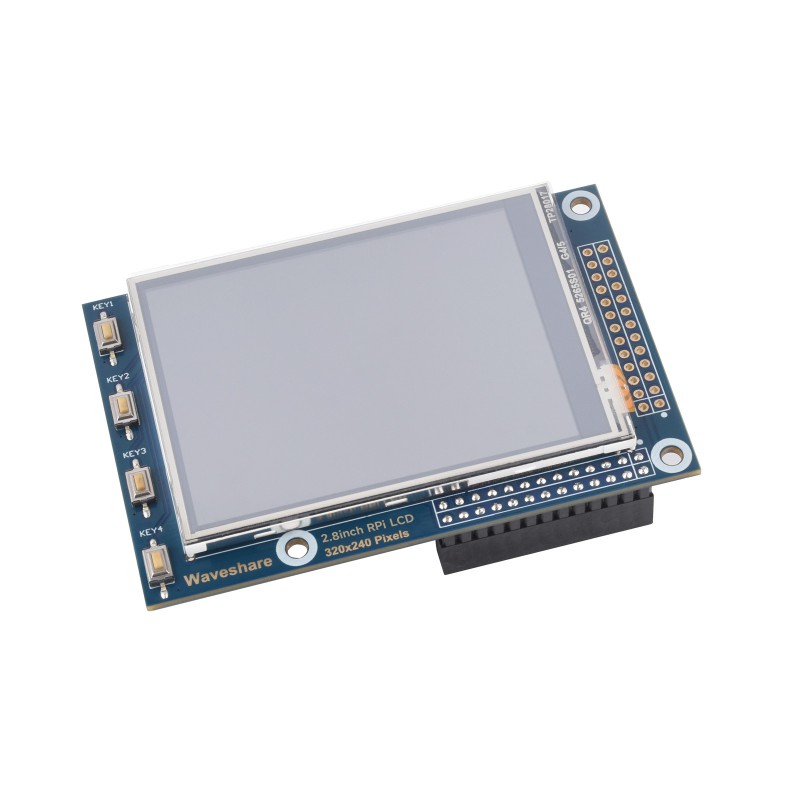

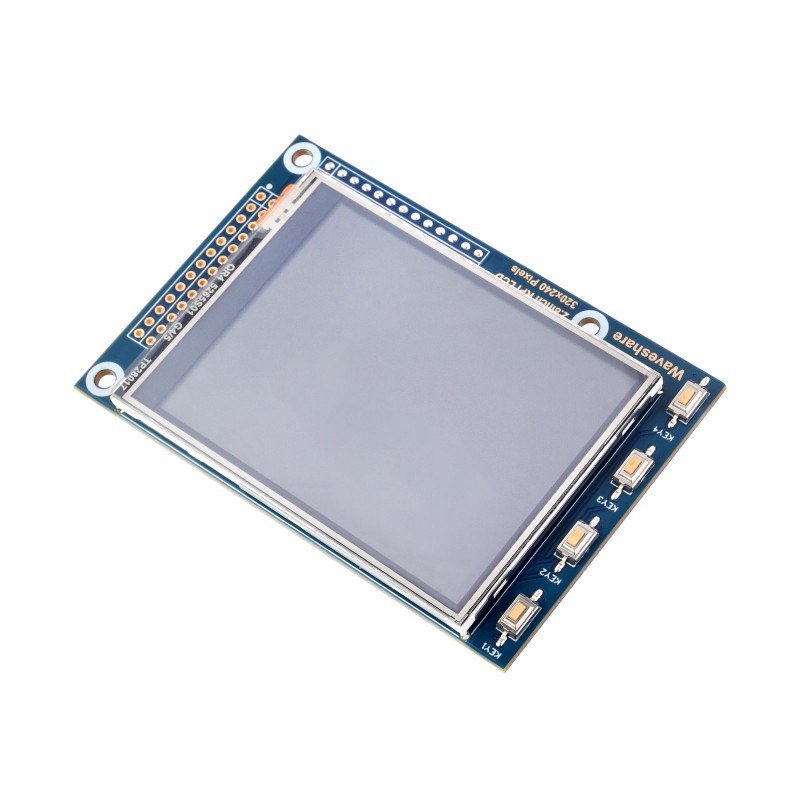

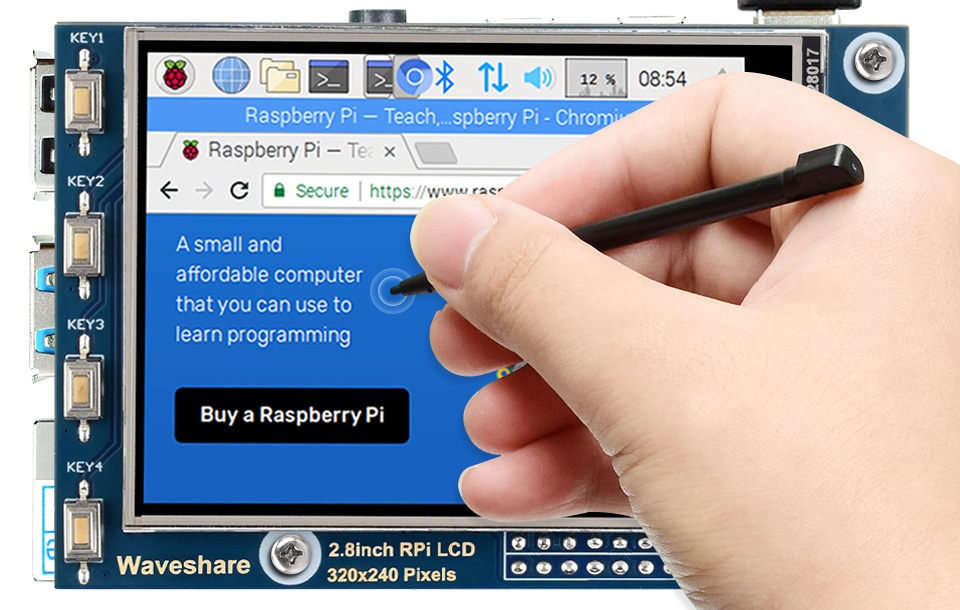

2.8" LCD-TFT display for Raspberry Pi (4/5/Zero) with resistive touchscreen and four navigation buttons. Connects as a HAT to the Raspberry Pi 40-pin GPIO header. The resistive touch panel provides intuitive control using a stylus pen or finger. Supplied with stylus pen, screws and spacers.
Specifications:

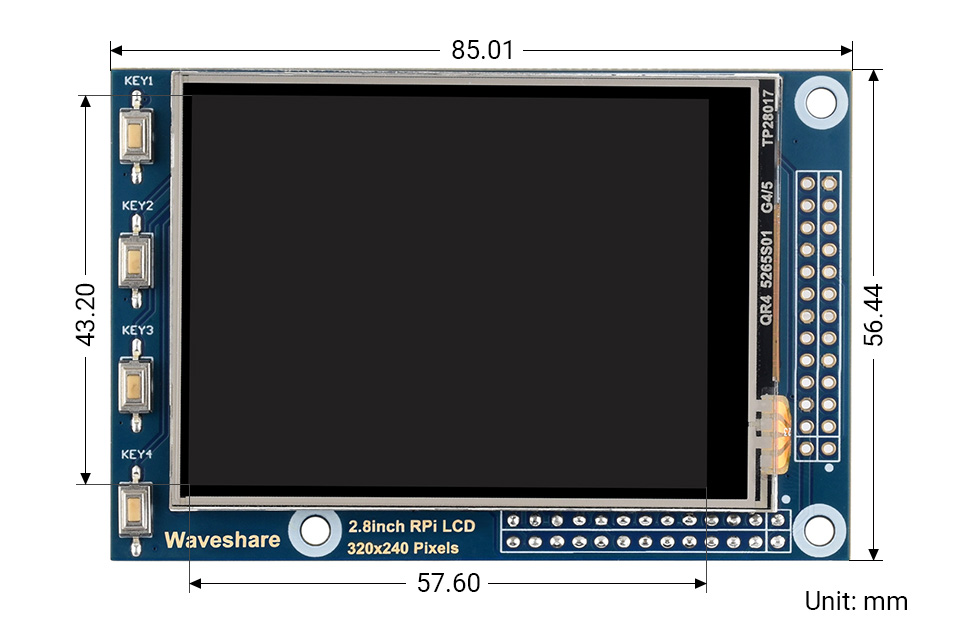

- Display size: 2.8 inch
- Resolution: 320 × 240 pixels
- Display type: TFT-LCD
- Interface: SPI via GPIO
- Touch panel: Resistive

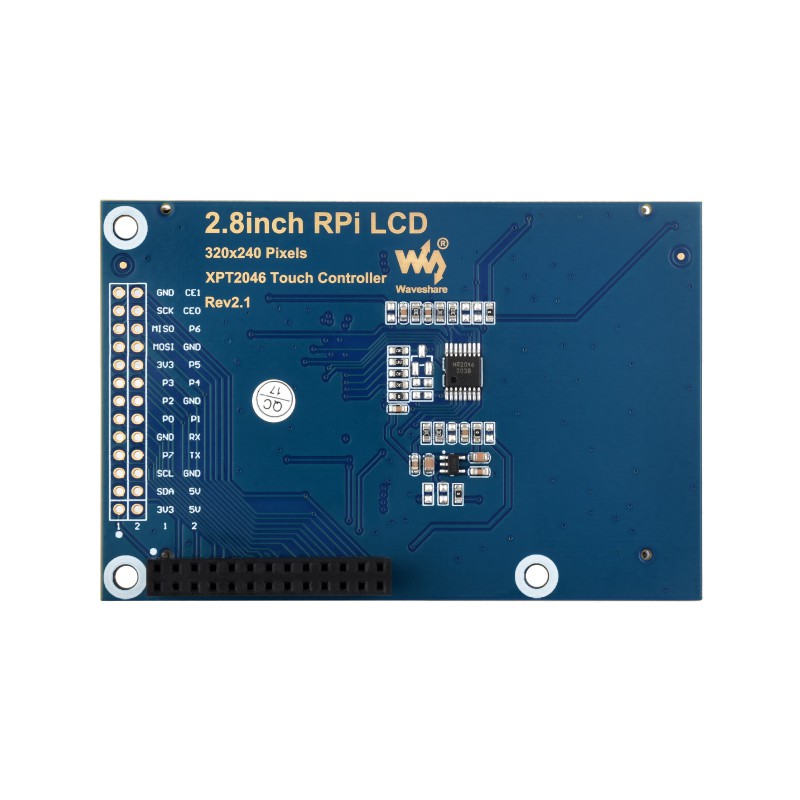

- Touch controller: XPT2046
- Colors: 65,536 colors (RGB)
- Backlight: LED with PWM control
- Buttons: 4 for navigation or other user-defined functions
- Power supply: Via GPIO
- Functions: Supports FBCP (Frame Buffer Copy) for software-driven resolution and dual display
- Stylus pen: Included
