Product description

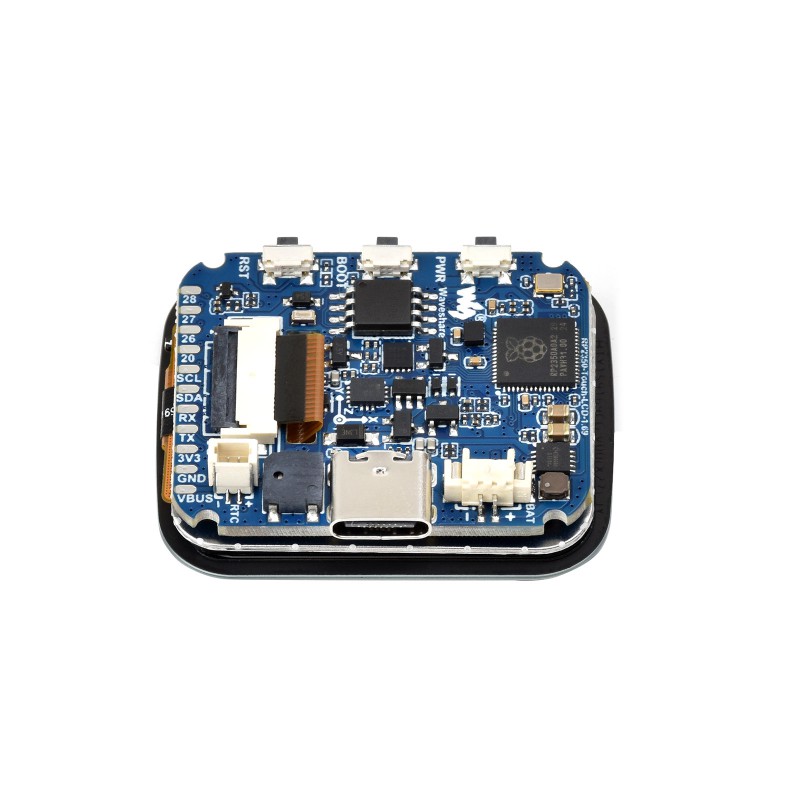

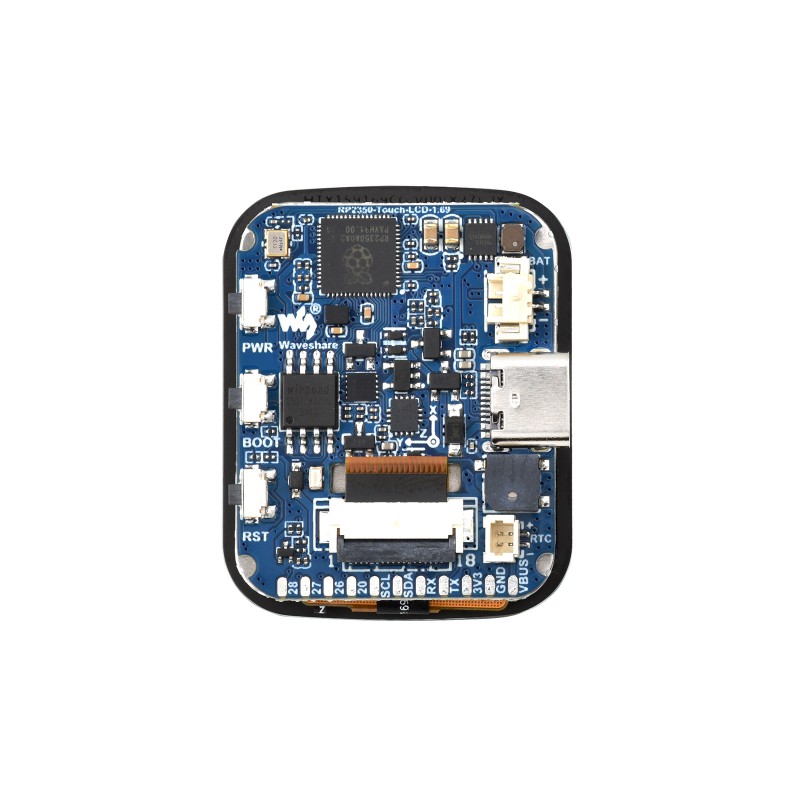

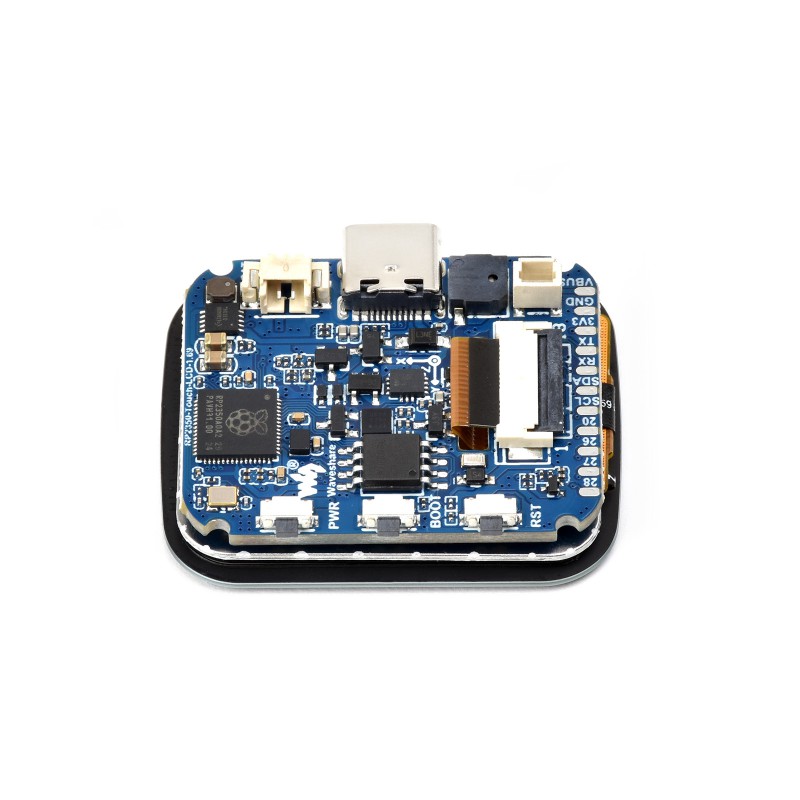

RP2350-Touch-LCD-1.69 is a high-performance development board based on Raspberry Pi RP2350. The board combines a microcontroller, touchscreen, and multiple sensors in an integrated solution, making it suitable for embedded systems, portable devices, and HMI applications.

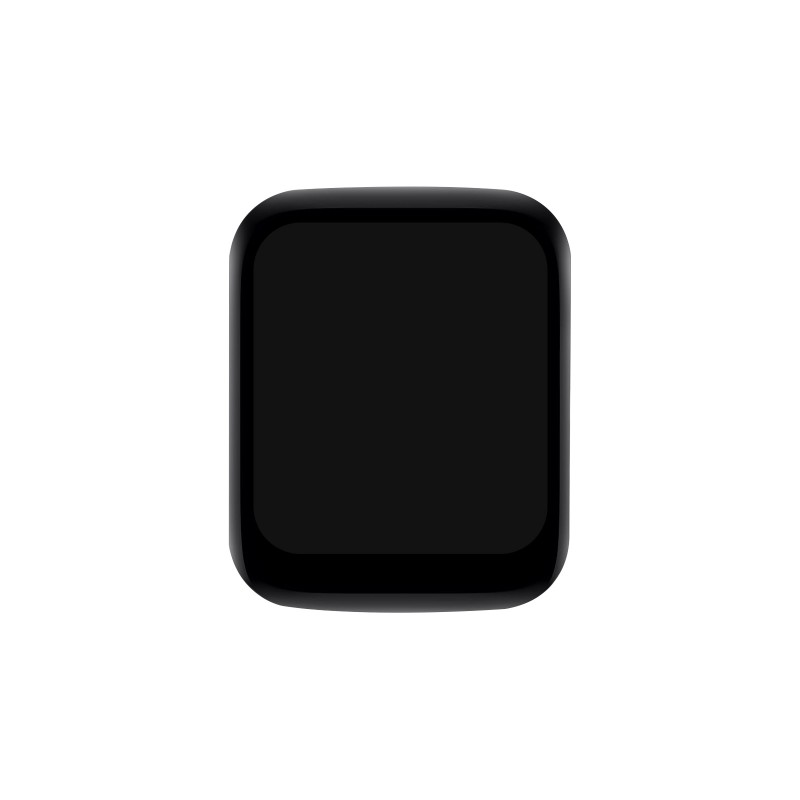

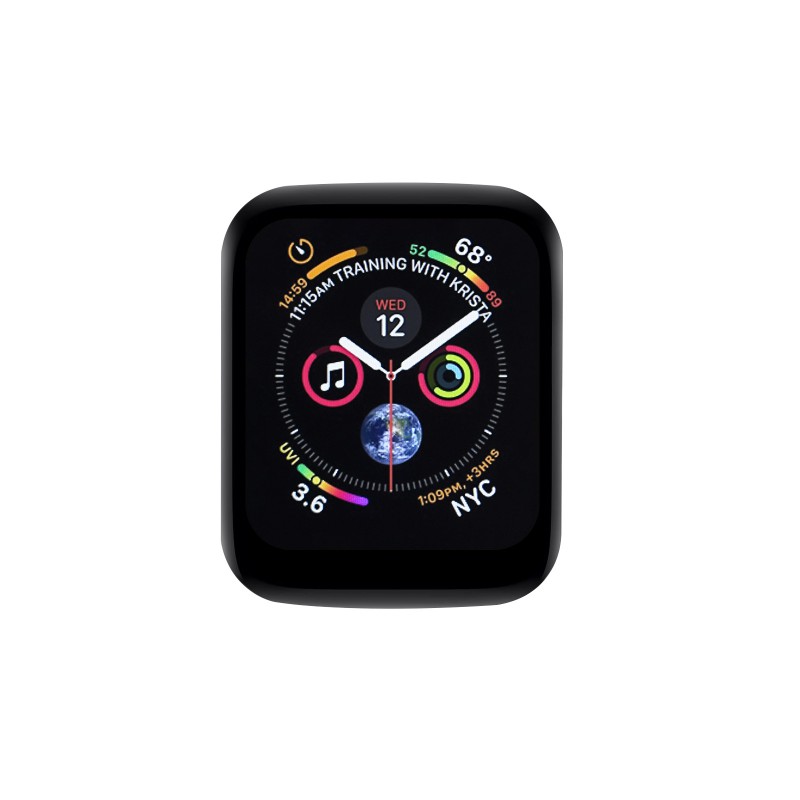

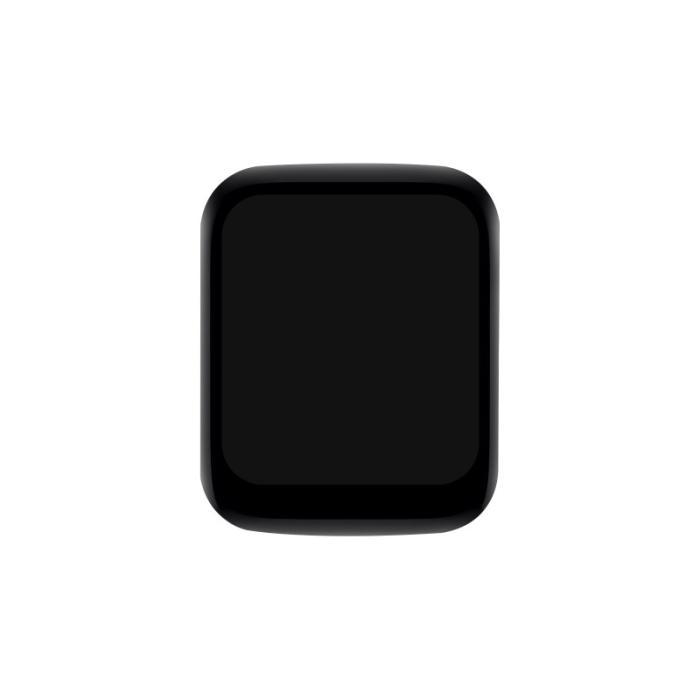

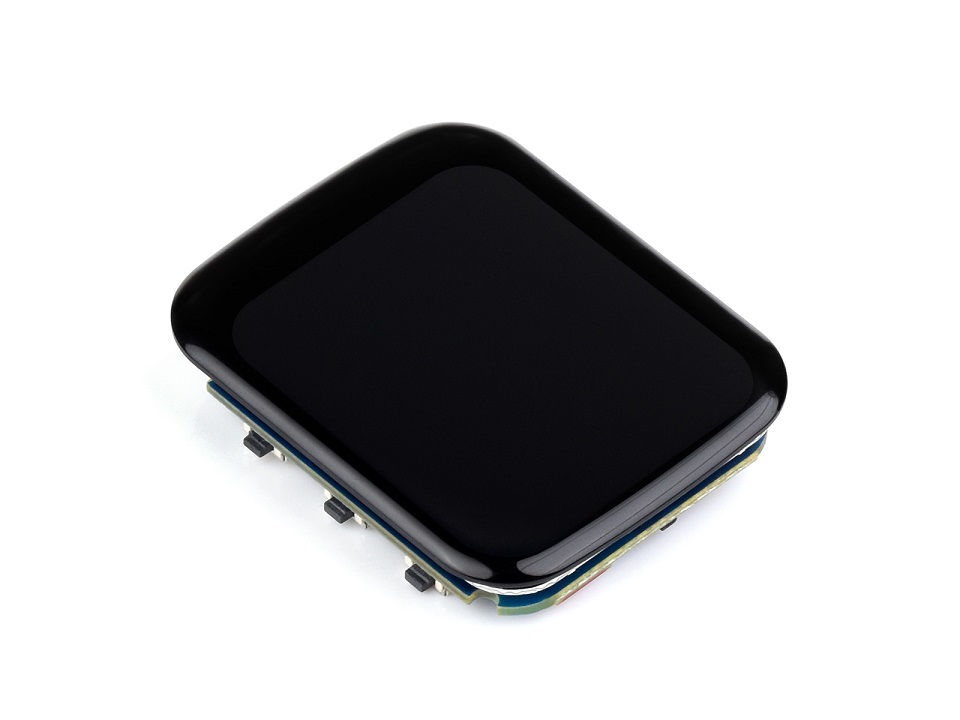

The built-in 1.69-inch capacitive touchscreen with a resolution of 240 x 280 pixels enables intuitive user interaction and clear display of graphics and data. The board features a powerful dual-core and dual-architecture design, allowing both Arm Cortex-M33 and RISC-V (Hazard3) to be used depending on application requirements.
For mobile and battery-powered projects, support for Li-ion / LiPo batteries with integrated charging management is included. In addition, a 6-axis IMU (accelerometer and gyroscope), RTC for real-time clock functionality, and a buzzer for audio indication are integrated. This combination of features makes the module suitable for applications such as wearable devices, IoT solutions, and advanced control systems.
The board connects via USB-C and supports simple drag-and-drop programming over USB, simplifying the development process. Low power consumption with support for sleep modes also makes it suitable for energy-efficient applications.
Specifications:
- Microcontroller: RP2350 (dual-core Arm Cortex-M33 + dual-core RISC-V Hazard3)
- Clock frequency: Up to 150 MHz
- RAM: 520 KB SRAM
- Flash memory: 16 MB
- Display: 1.69-inch capacitive touchscreen
- Resolution: 240 x 280 pixels
- Colors: Up to 262K
- Interface: USB-C (host and device)
- Sensor: 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
- RTC: Yes
- Audio: Built-in buzzer
- Power supply: Support for 3.7 V Li-ion / LiPo battery with charging circuit
- Other: Low power modes (sleep/dormant), temperature sensor
