Product description
RP2350-LCD-1.28 is a high-performance development board based on Raspberry Pi RP2350. The board combines a microcontroller, round LCD display, and sensors in an integrated solution with a metal case. Suitable for embedded systems, portable devices, and graphical interfaces.

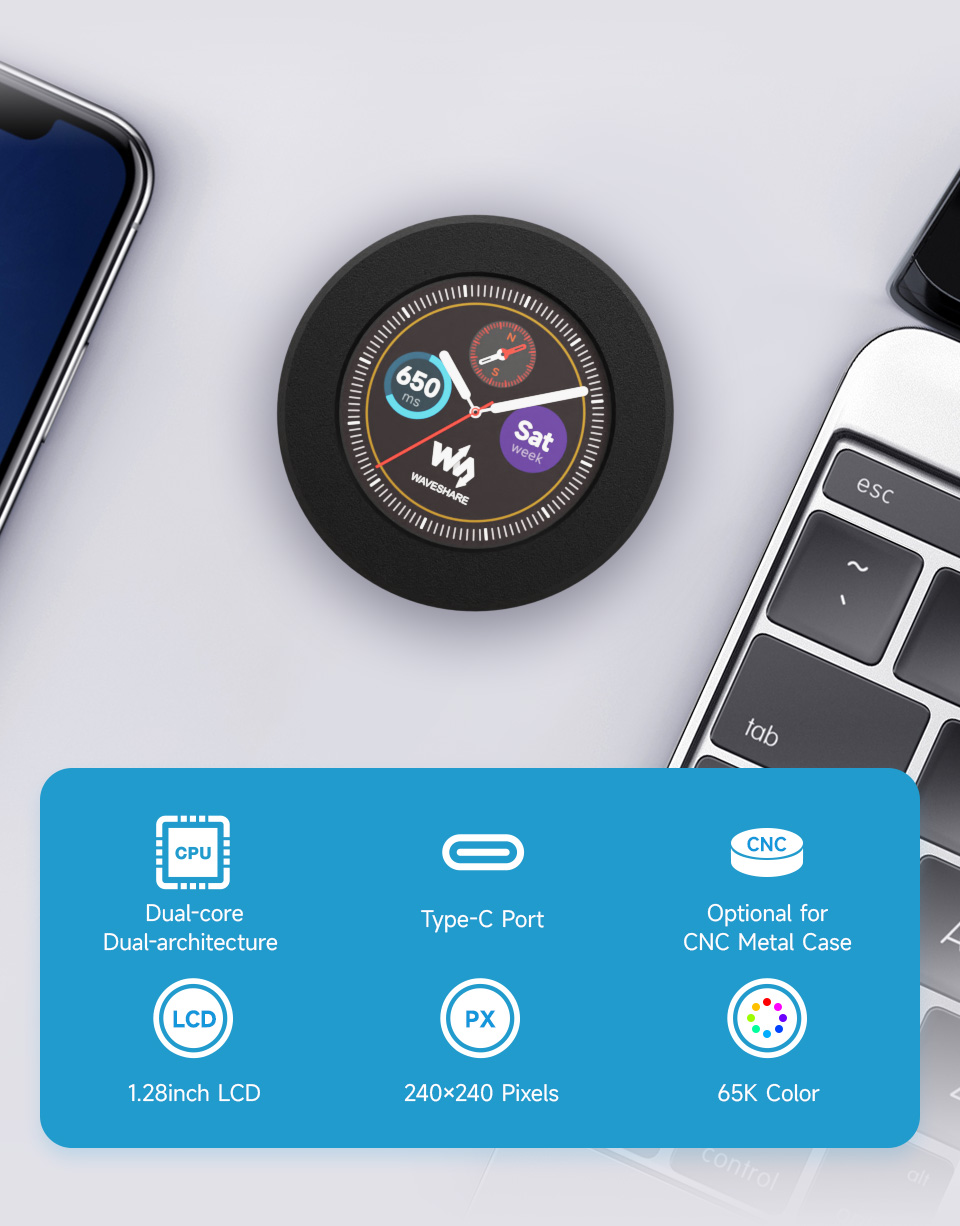

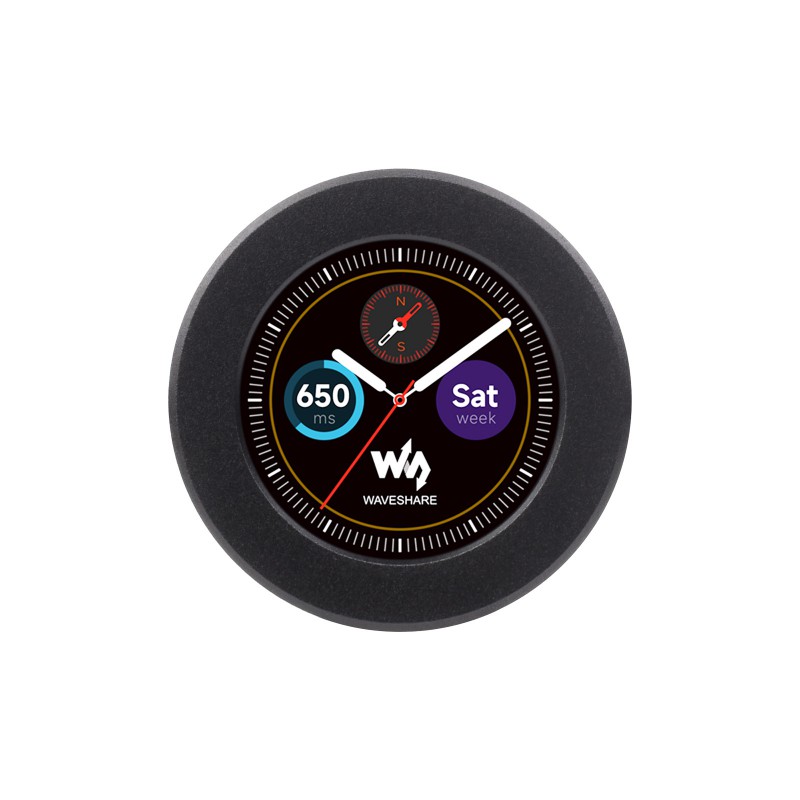

The built-in 1.28-inch IPS display with a resolution of 240 x 240 pixels provides clear and smooth image rendering, making it suitable for visualization of data, status information, and simple GUIs. The round form factor makes the module particularly suitable for applications such as wearables, dashboards, and compact control systems.

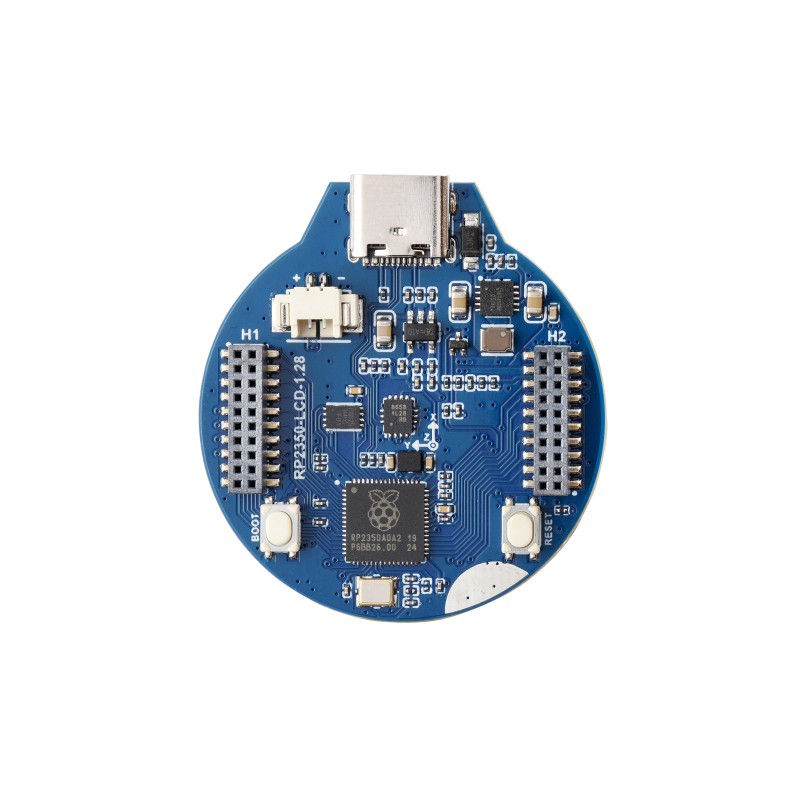

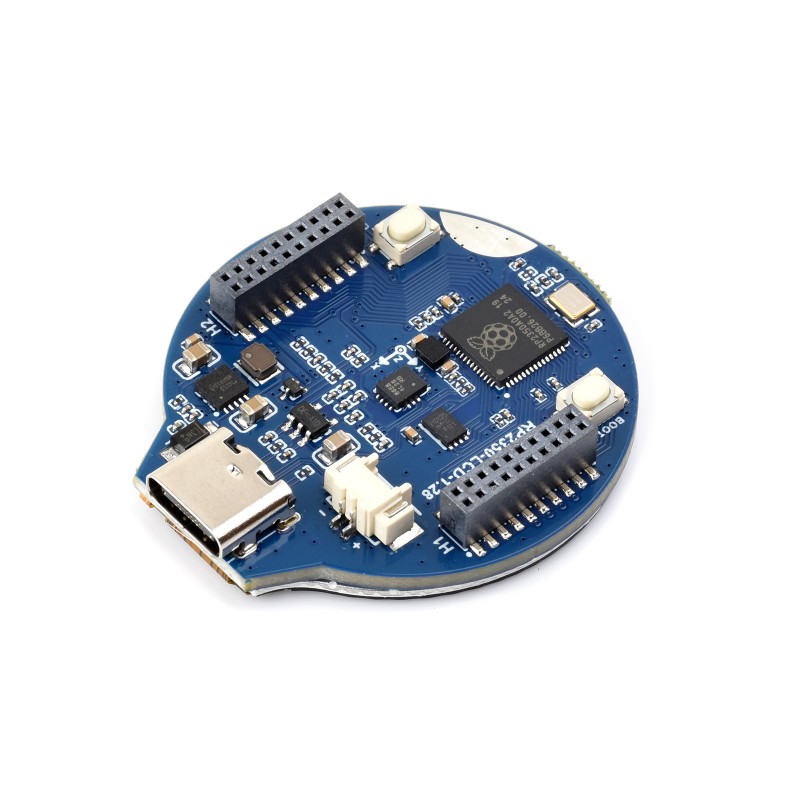

The board is equipped with RP2350 in a dual-core and dual-architecture configuration, enabling the use of both Arm Cortex-M33 and RISC-V depending on application requirements. All GPIO and debug pins are accessible, simplifying integration into custom designs and prototypes.
For mobile applications, support for Li-ion / LiPo batteries with integrated charging management is included. The board also features a 6-axis IMU (accelerometer and gyroscope), enabling motion detection and orientation-based functions. The combination of display, sensors, and compact design makes the module suitable for IoT devices and portable systems.
Specifications:
- Microcontroller: RP2350 (Raspberry Pi)
- Processor: Dual-core Arm Cortex-M33 + dual-core Hazard3 RISC-V
- Clock frequency: Up to 150 MHz
- Memory: 520 KB SRAM
- Flash memory: 4 MB
- Display: 1.28-inch IPS LCD, 65K colors
- Resolution: 240 x 240 pixels

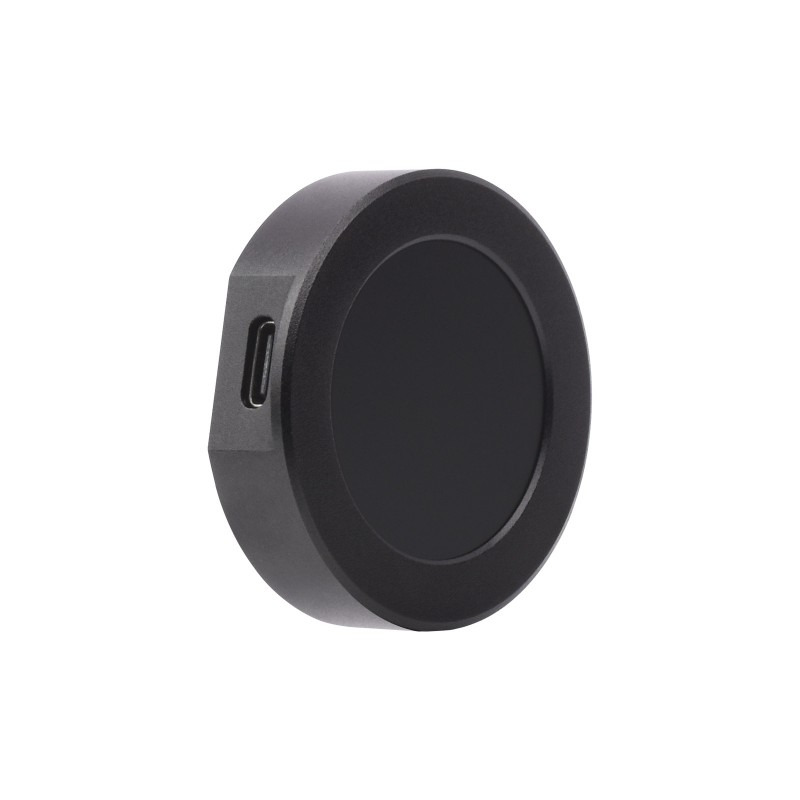

- USB: USB-C host/device
- GPIO: Up to 30 pins (via headers)
- Interfaces: 2 x SPI, 2 x I2C, 2 x UART
- ADC: 4 x 12-bit
- PWM: Up to 24 channels
- Other: Low power modes and temperature sensor

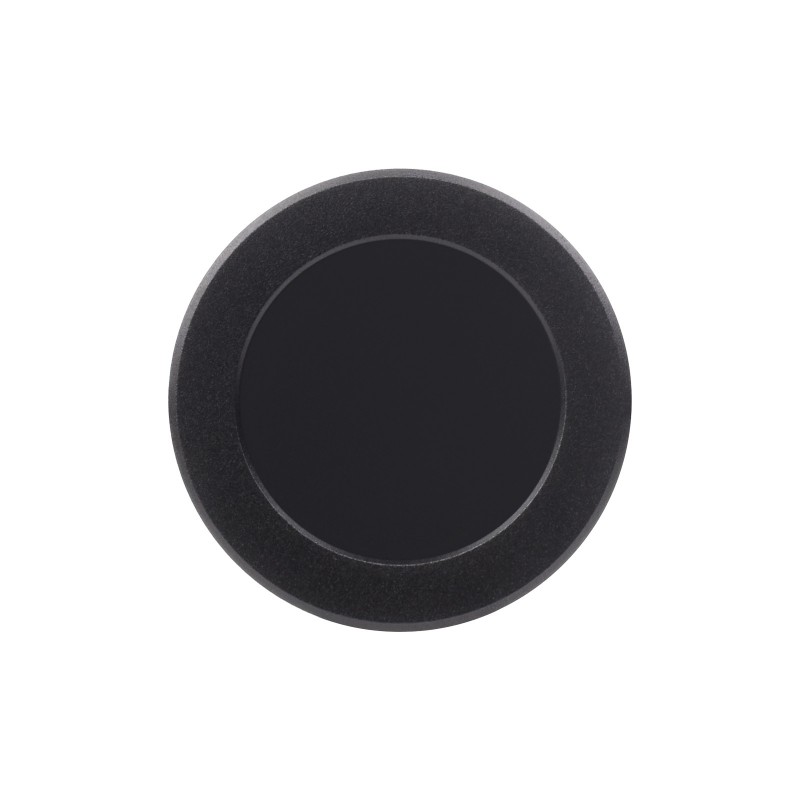

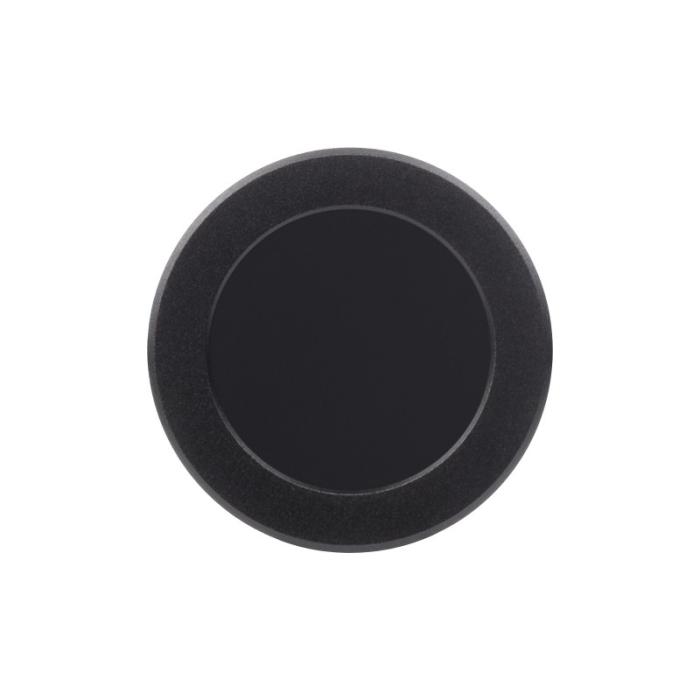

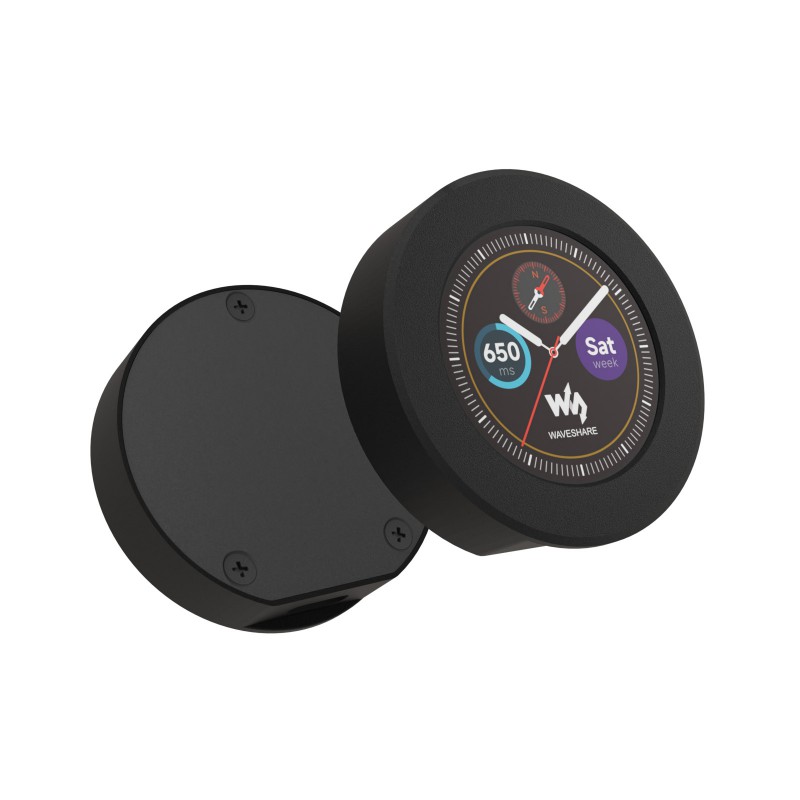

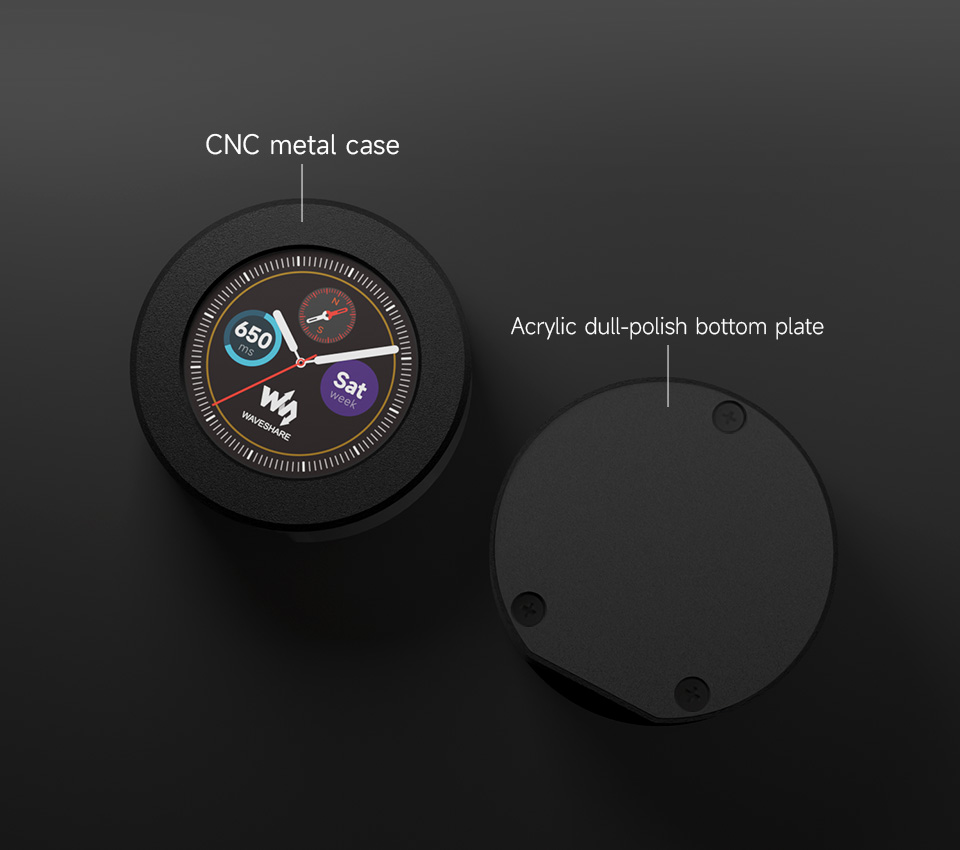

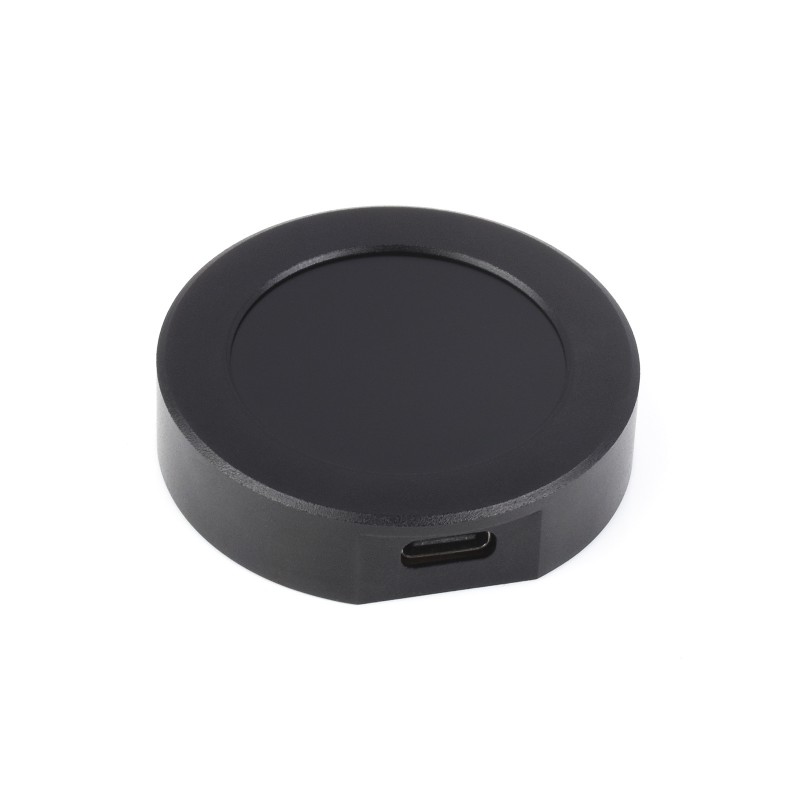

- Enclosure: Metal housing
- Sensor: 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
- Power supply: USB-C or Li-ion / LiPo battery (with charging circuit)

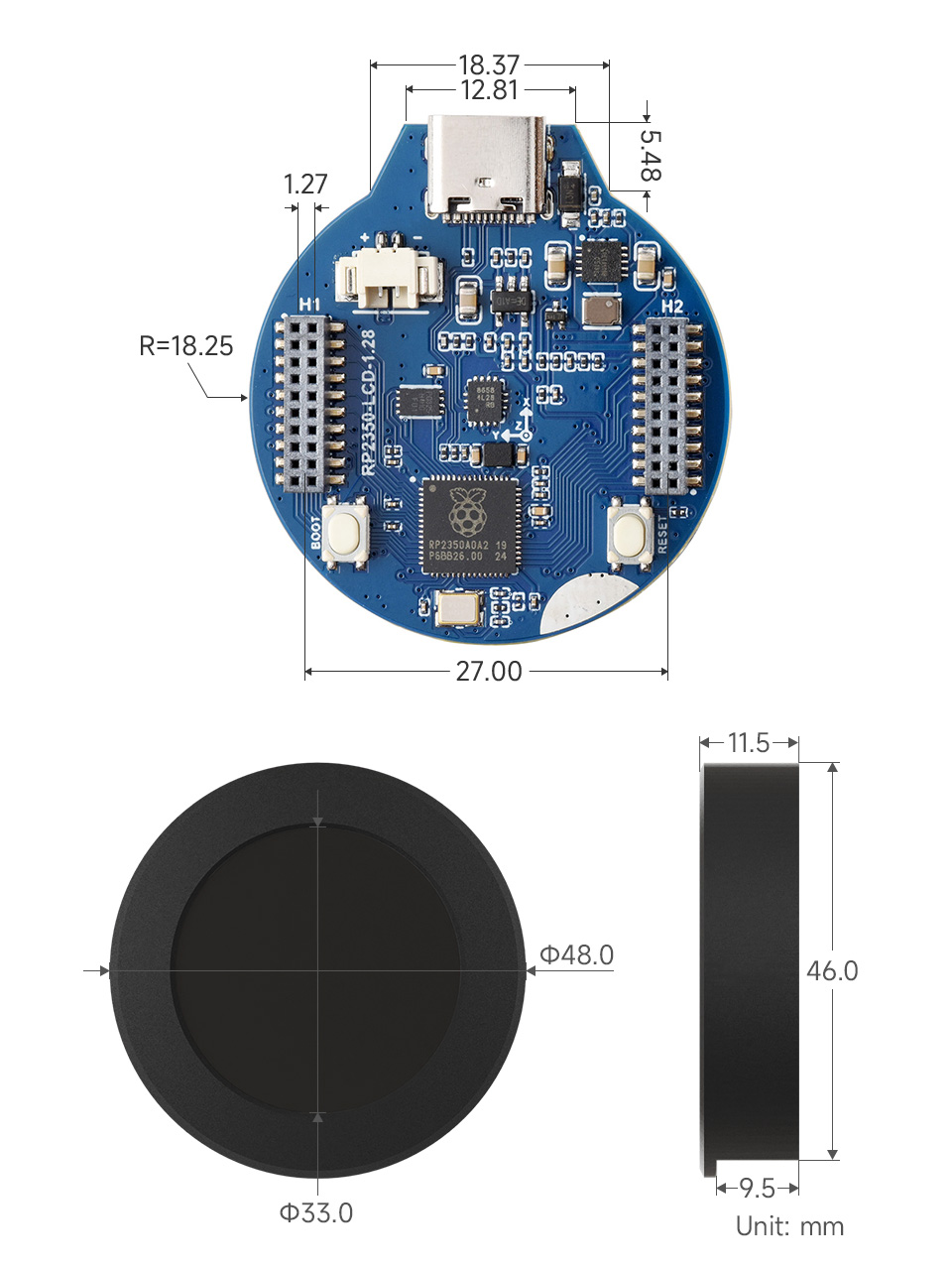

- Form factor: Compact round display module with metal case
