Product description

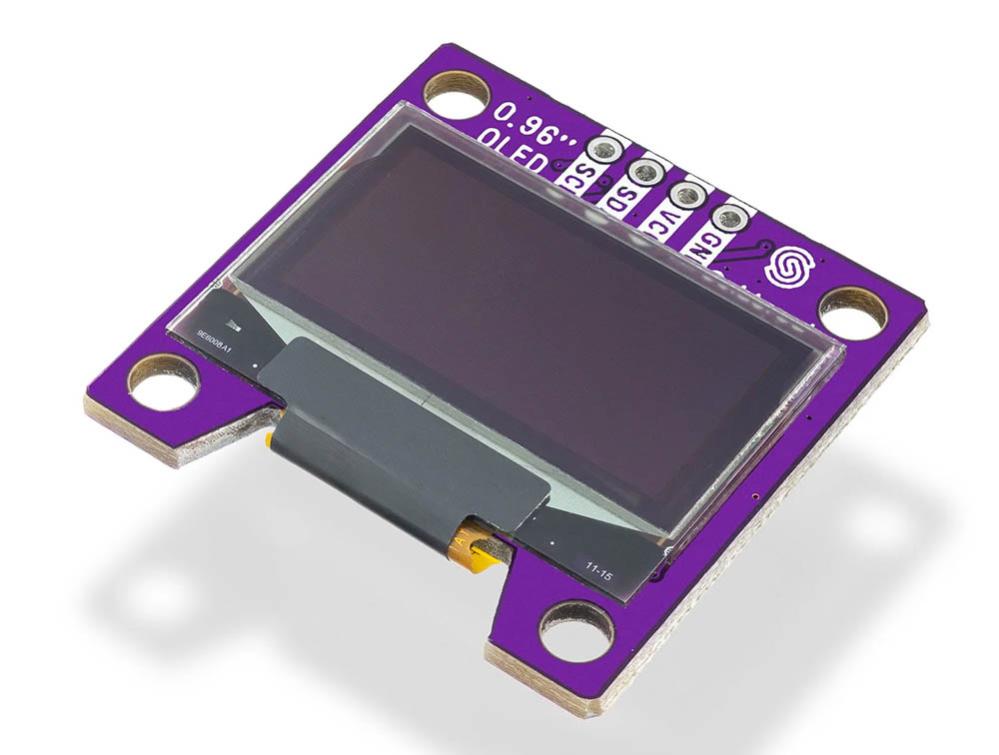

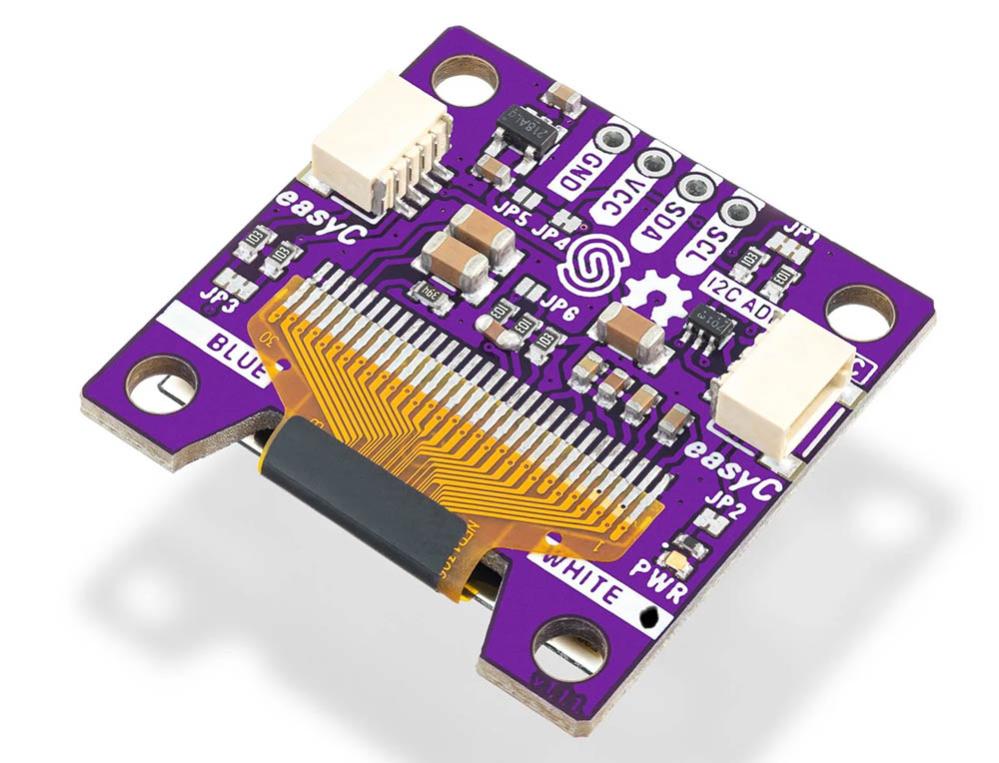

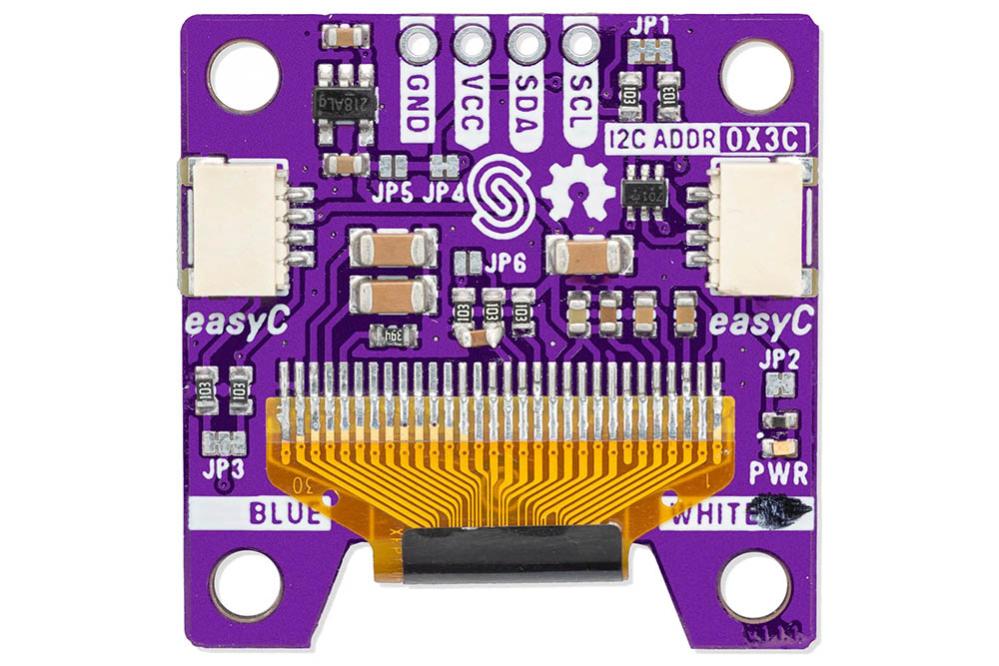

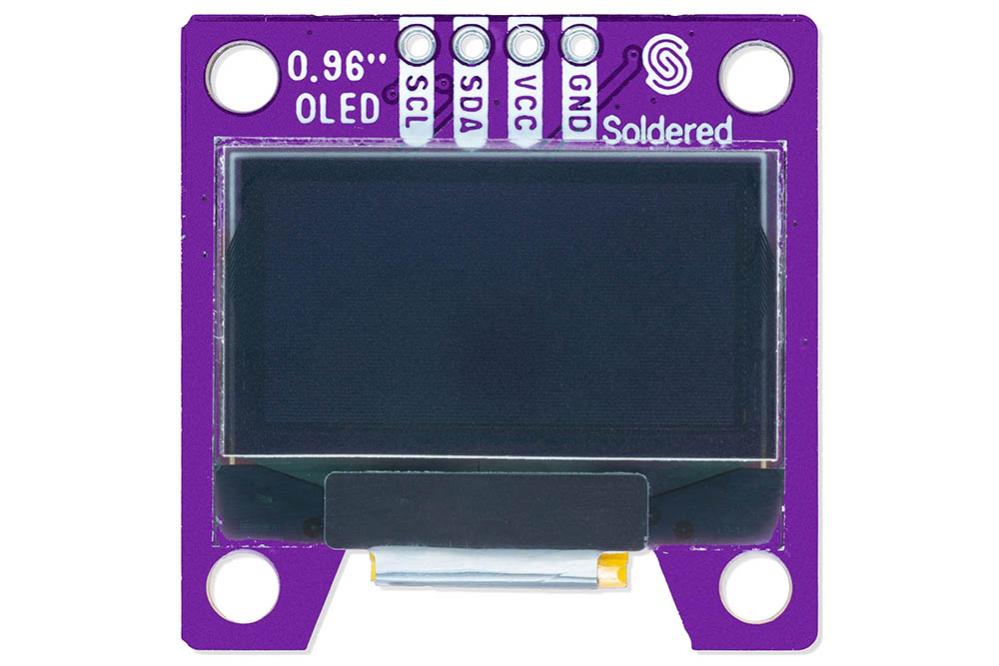

0.96" I2C OLED Display with Qwiic connector. A compact OLED display for projects where clear presentation of text and graphics is desired. The display consists of 8192 individually controlled pixels arranged in a 128x64 pixel matrix. Since OLED technology does not require a backlight, it provides high contrast while maintaining low power consumption. The display communicates via I2C using the fixed address 0x3C and is equipped with two Qwiic connectors for easy solder-free connection.
Specifications:
- Display size: 0.96"
- Driver IC: SSD1306
- Resolution: 128x64 pixels
- Number of pixels: 8192
- Communication: I2C
- I2C address: 0x3C
- Supply voltage: 5V
- Logic level: 5V via I2C header, 3.3V via Qwiic
- Current consumption: Approximately 20 mA depending on the number of active pixels
- Connectors: 2 x Qwiic
- Mounting holes: 2pcs
- Dimensions: 30 x 30 mm
- Display color: White

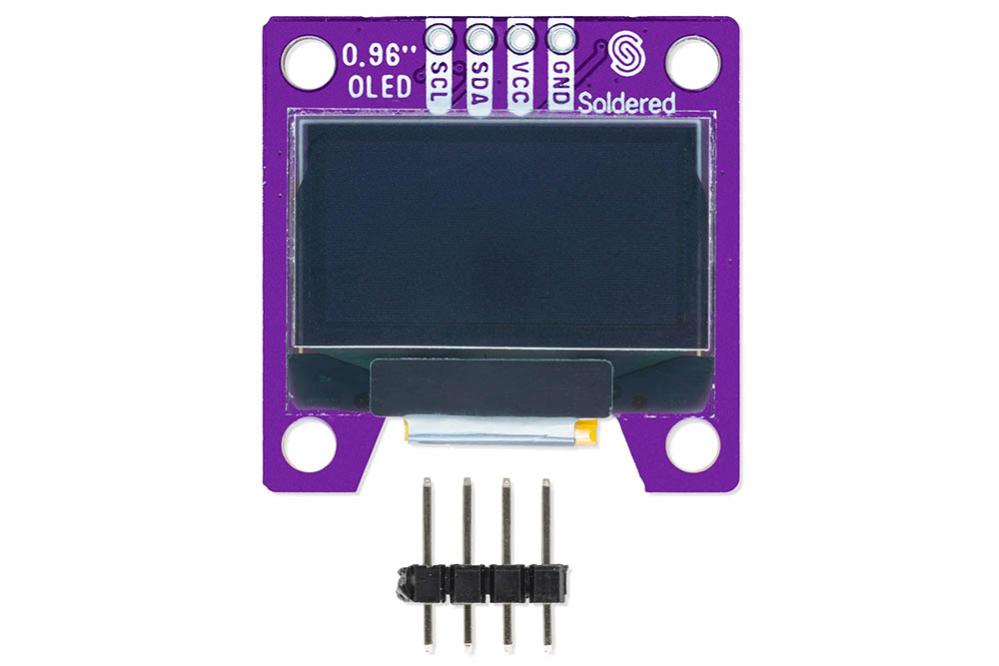

- Pin header: Included (not pre-soldered)
