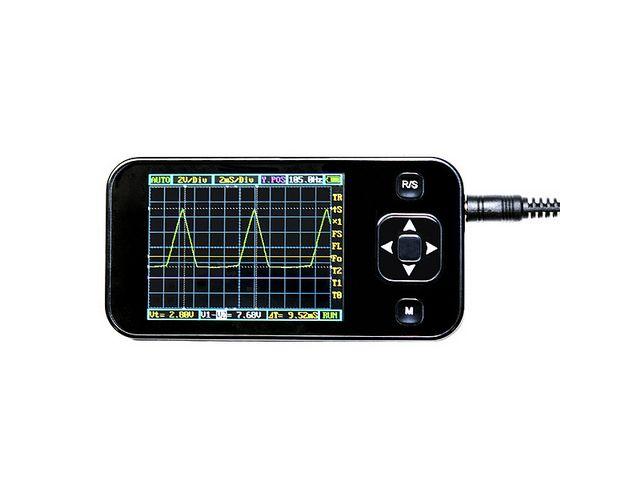

The DSO Nano is a compact digital oscilloscope based on an ARM Cortex-M3 compatible 32 bit platform. The DSO is equipped with a 320x240 color display, microSD card capability, USB connection, and rechargeable LiPo battery.
The DSO is easy-to-use and has a number of useful functions. It has a 1MHz sample rate, which isn't huge, but should do the job for most hobbyist use. The measurements are displayed on a 65,000 color, 2.8", 320x240 TFT color LCD. Other specifications include up to 10mV/Div and 1us/Div sensitivity, 80Vpp max input voltage, and a 1Msps 12Bits max sample rate. Waveforms can also be saved to a FAT16 formatted microSD card.
This package includes the DSO Nano, a Lithium battery, a back plate to keep the battery inside, a sleeve to protect the DSO, as well as a mini-probe and alligator clips. The battery can be recharged via USB.
Features:
Super portable and lightweight
2.8" color 320*240 display
Micro SD card Waveform Storage
Basic 1Msps sample rate with 12bit resolution
Functionalities include:
Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Precise vertical measurement with markers
Precise horizontal measurement with markers
Rising/falling edge trigger
Trig level adjustable with indicator
Trig sensitivity adjustable with indicator
Hold/run feature
Various trigger mode
Build-in test signal
USB chargeable battery
Open source
Dimensions: 105 x 53 x 8mm
