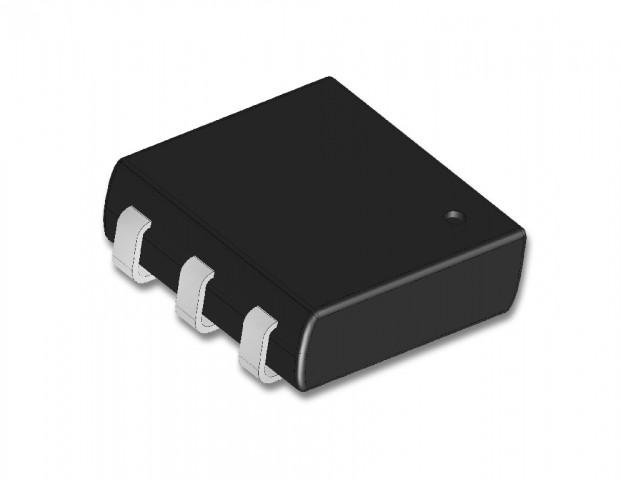

DS2413P TSOC-6 1-Wire 2-kanals addreserbar switch

Art nr: 41009808
Handla denna produkt DS2413P TSOC-6 1-Wire 2-kanals addreserbar switch
pris 42 SEK
Inklusive 25% moms
1 till9
42 SEK
10 till24
37.80 SEK
25 till
31.50 SEK
Lagervara, 3 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se




The DS2413 is a dual-channel programmable I/O 1-Wire® chip. The PIO outputs are configured as open-drain and provide up to 20mA continuous sink capability and off-state operating voltage up to 28V. Control and sensing of the PIO pins is performed with a dedicated device-level command protocol. To provide a high level of fault tolerance in the end application, the 1-Wire I/O and PIO pins are all capable of withstanding continuous application of voltages up to 28V max. Communication and operation of the DS2413 is performed with the single contact Maxim 1-Wire serial interface.

Key Features Open-Drain Programmable I/O Pins
PIO Pins Support 20mA max Continuous Current Sink
Supports 28V (max) PIO Pin Operating Voltage
On-Resistance of PIO Pulldown Transistor 20O max; OFF Resistance 1MO min
Parasitic Power Supply Through 1-Wire
Communicates to Host with a Single Digital Signal at 14.9kbps or 100kbps Using 1-Wire Protocol
Unique 64-bit ROM Serial Number Factory Lasered Into Each Device
Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise
1-Wire I/O Pin Supports 28V Absolute Maximum DC Level for Fault Conditions
Operates Over a Wide 1-Wire Voltage Range of 2.8V to 5.25V from 0°C to +70°C
High ESD Immunity of 1-Wire I/O Pin: 8kV HBM Typical
TSOC and TDFN Packages Available
